IQ-Parts Pipe connector | Double Swivel | Type 46
Brand:
IQ-Parts
| Article number: | ICL-8196325034 |
| SKU: | 608046C |
- 2 year warranty
- Delivery time: 1 week after order date
Information

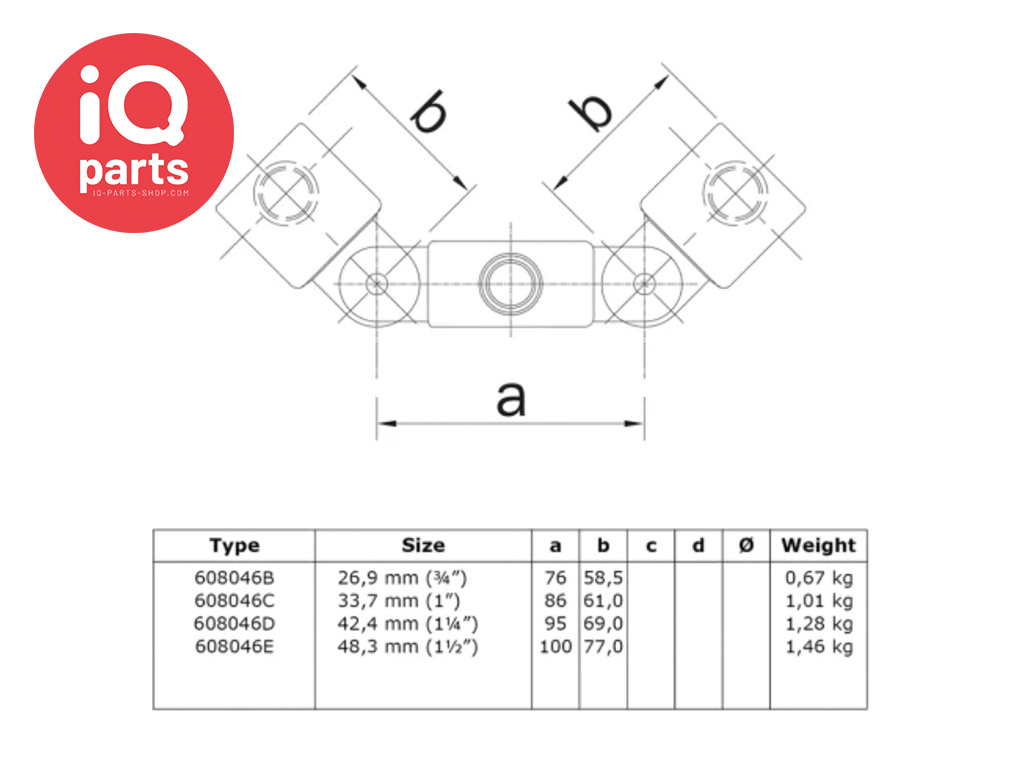

IQ-Parts Pipe connector | Double Swivel | Type 46
This type 46 pipe connector is used to attach two pipes with an adjustable angle to the side of a post. The double connector consists of a "Male Double Lug" (type 38) and two "Female Single Sockets" (type 42), which are connected to each other by a rivet bolt. The material of the hinged pipe connection is GALVANIZED CAST IRON.
Please note: When using this pipe connector, the pipes must be firmly clamped in the desired position on the outside to obtain a stable construction.
General information about cast iron pipe connectors
With the pipe connectors for round tubes, you can quickly, effectively and variably create stable pipe constructions with high cost efficiency.
Round pipe connector for railings, barriers, exhibition stands and much more
Do you need beautiful, high-quality tube connectors for a round pipe? Our round pipe connectors are suitable for a wide range of constructions, such as scaffolding, balustrades, barriers, room dividers, frames, playgrounds, railings, fall protection, protective barriers and much more. They can be screwed on and are attached to the respective round pipe using an integrated threaded rod.
With these round pipe connectors made of galvanised or painted cast iron, pipes in various designs can be mounted. The Allen screws used ensure a stable connection (inside or outside). Simple and quick assembly and disassembly are also guaranteed. Most of our round pipe connectors are available at short notice and are TÜV-approved.
You can choose from pipe connectors in 6 different diameters. (21.3 mm, 26.9 mm, 33.7 mm, 42.4 mm, 48.3 mm and 60.3 mm).
Is your desired size not in our shop? Please contact our sales department!
Advantages at a glance:
- Stainless steel screw
- Guaranteed up to 1500 N/m load
- No welding, so no fire permit required
- No thread, no screw connections
- Can be installed with a simple Allen key
- Versatile system, changeable on site
- Can be painted over
Applications:
- Railings
- Safety railings/protective barriers
- Fall protection
- Other applications for safe working
- Fixed balustrades
- Machine guards
- Playgrounds
Product code:
8196325027 - 8196325034 - 8196325042 - 8196325048 - 8196325060
608046B - 608046C - 608046D - 608046E - 608046F
