IQ-Parts Pipe connector | Flange Round | Type 10
Brand:
IQ-Parts
| Article number: | ICL-8196306017 |
| SKU: | 608010B |
- 2 year warranty
- Delivery time: 1 week after order date
Information

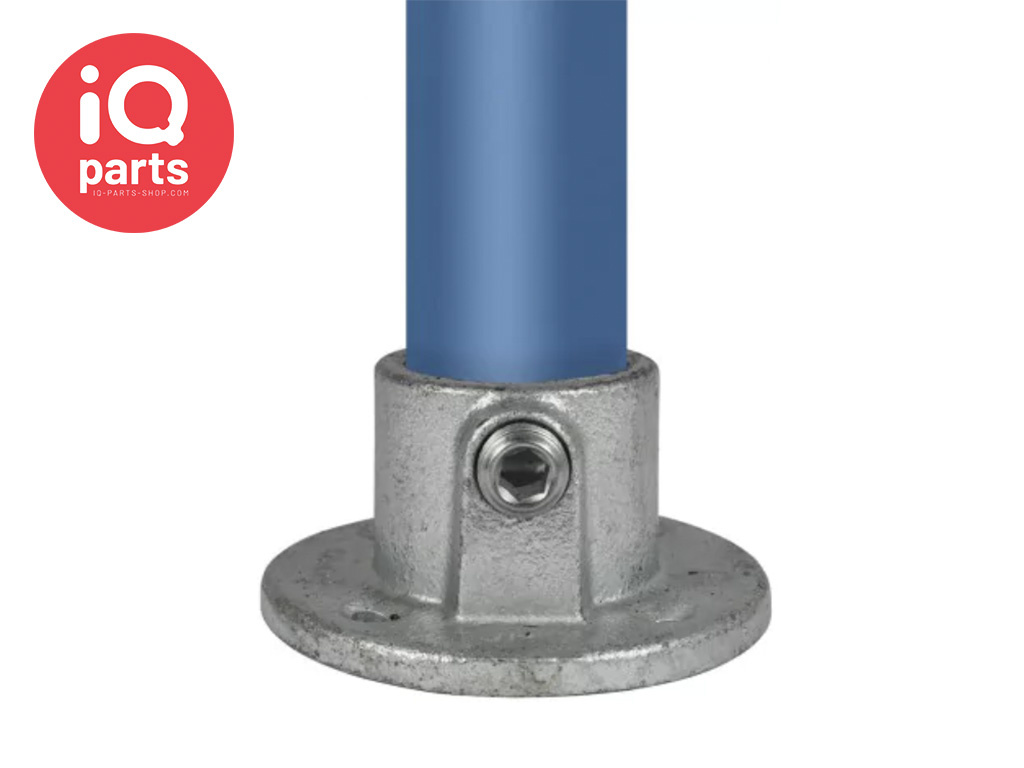

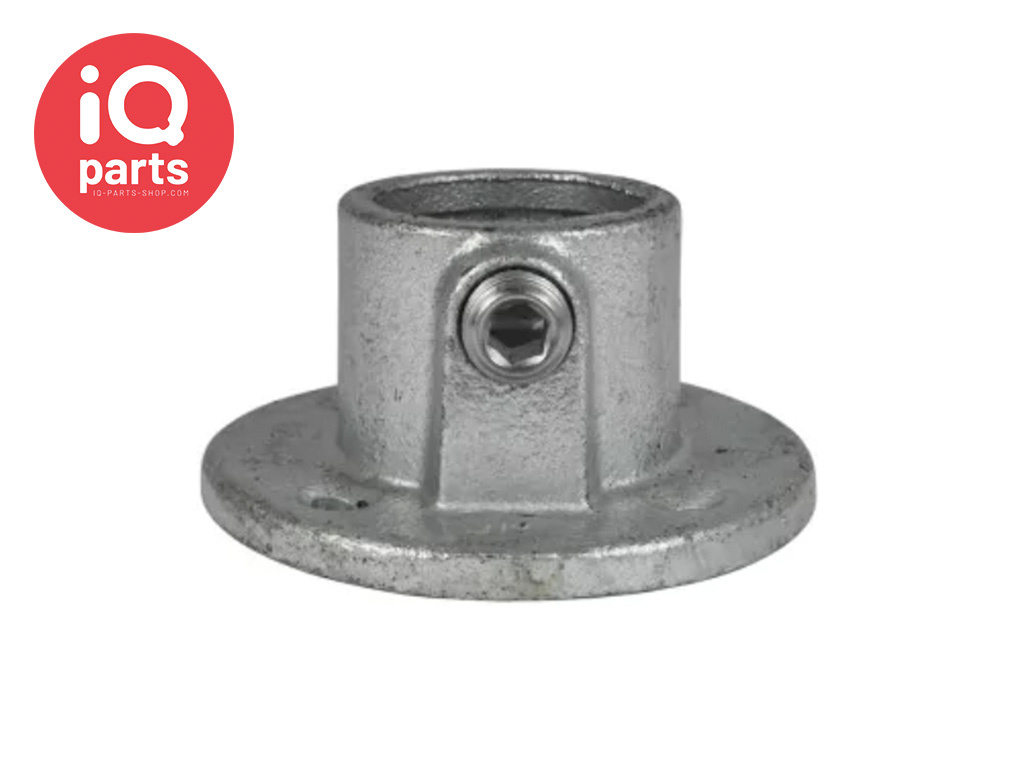

IQ-Parts Pipe connector | Flange Round | Type 10

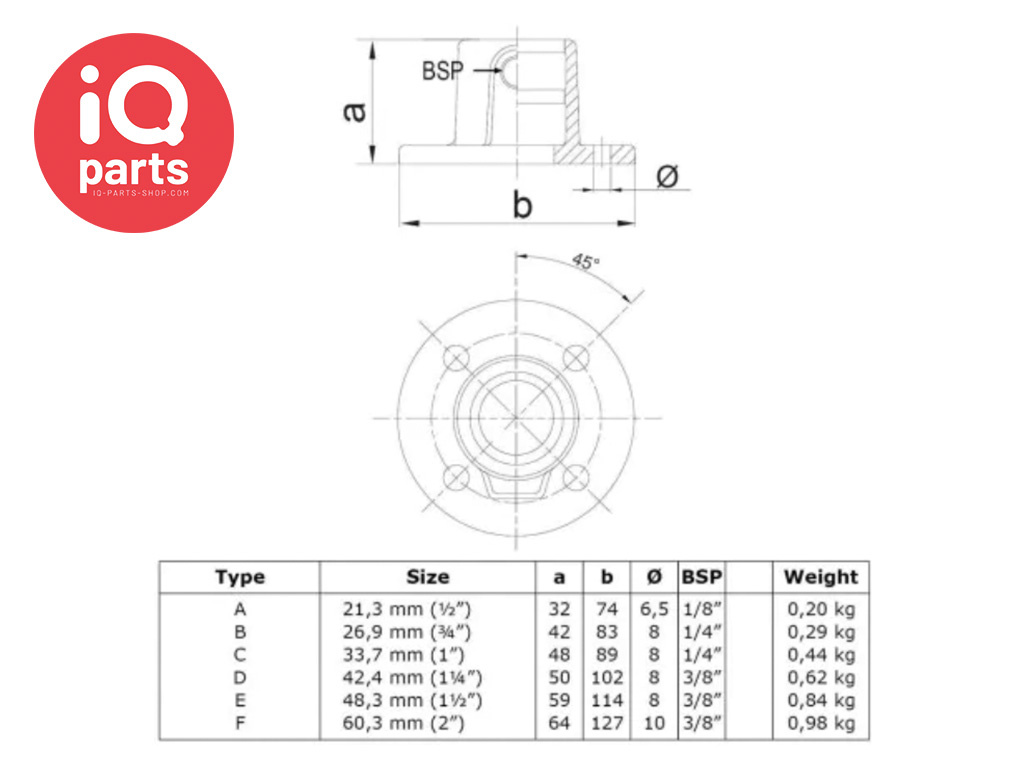

The Flange Round type 10 is used to fix the position and fasten a pipe to the wall, ceiling and floor. The pipe connection is slid over the outside of the pipes. You can choose from the base plate for pipe couplings with a diameter of 26.9 mm (3/4"), 33.7 mm (1/2"), 42.4 mm (1 1/4"), 48.3 mm (1 1/2") and 60.3 mm (2"). The material of the pipe coupling type 10 is GALVANIZED CAST IRON.
The Flange Round type 10 is partially open at the bottom to allow water drainage. However, the bottom is closed so that the pipe cannot be pushed through. 4 drill holes allow attachment to the wall, ceiling or floor.
Attention: Do NOT use this round base plate as a mounting for railings or similar systems!
General information about cast iron pipe connectors
With the pipe connectors for round tubes, you can quickly, effectively and variably create stable pipe constructions with high cost efficiency.
Round pipe connector for railings, barriers, exhibition stands and much more
Do you need beautiful, high-quality tube connectors for a round pipe? Our round pipe connectors are suitable for a wide range of constructions, such as scaffolding, balustrades, barriers, room dividers, frames, playgrounds, railings, fall protection, protective barriers and much more. They can be screwed on and are attached to the respective round pipe using an integrated threaded rod.
With these round pipe connectors made of galvanised or painted cast iron, pipes in various designs can be mounted. The Allen screws used ensure a stable connection (inside or outside). Simple and quick assembly and disassembly are also guaranteed. Most of our round pipe connectors are available at short notice and are TÜV-approved.
You can choose from pipe connectors in 6 different diameters. (21.3 mm, 26.9 mm, 33.7 mm, 42.4 mm, 48.3 mm and 60.3 mm).
Is your desired size not in our shop? Please contact our sales department!
Advantages at a glance:
- Stainless steel screw
- Guaranteed up to 1500 N/m load
- No welding, so no fire permit required
- No thread, no screw connections
- Can be installed with a simple Allen key
- Versatile system, changeable on site
- Can be painted over
Applications:
- Railings
- Safety railings/protective barriers
- Fall protection
- Other applications for safe working
- Fixed balustrades
- Machine guards
- Playgrounds
Product code:
8196306017 - 8196306034 - 8196306042 - 8196306048 - 8196306060
608010B - 608010C - 608010D - 608010E - 608010F
