IQ-Parts Pipe connector | Single Swivel | Type 44

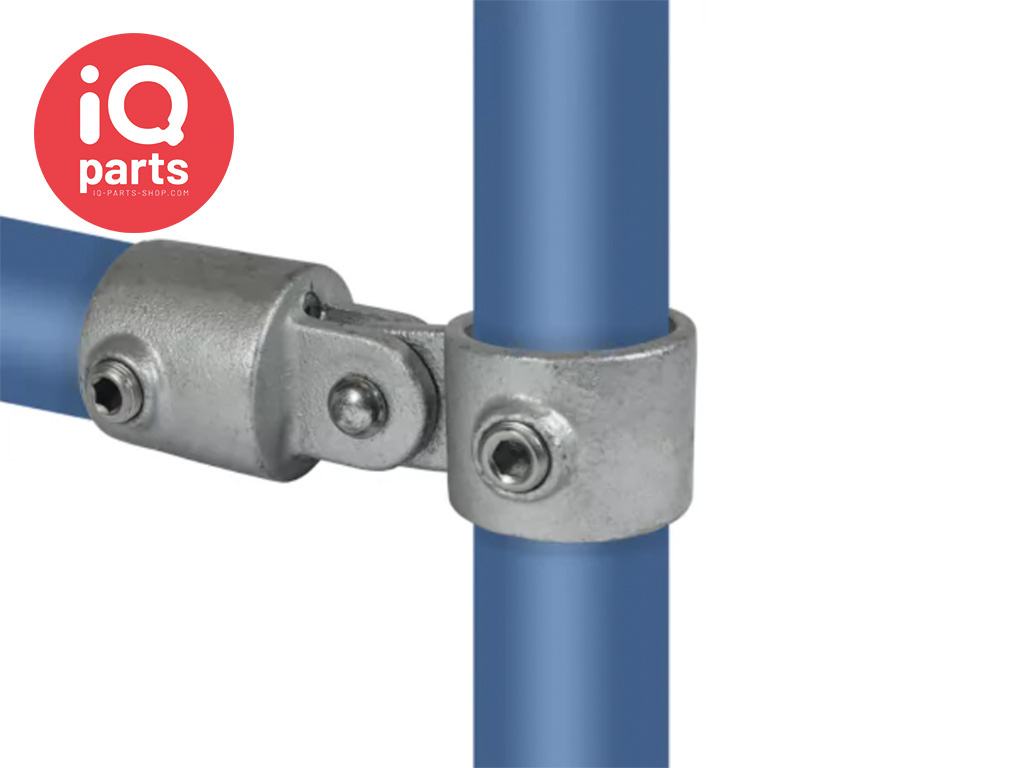

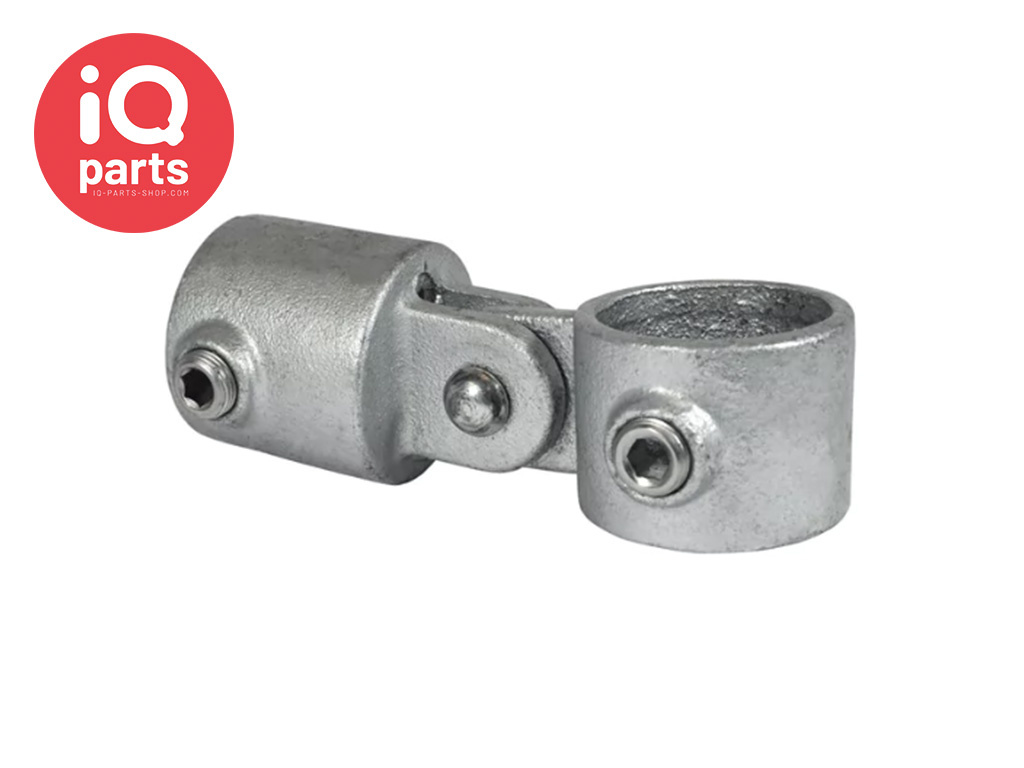

The single T-Swivel type 44 serves as a joint pipe connector for an adjustable / lateral angle attachment of two pipes. The pipe connector is slid over the outside of the pipes and thus provides an external pipe connection. The T-joint with hinge type 44 consists of a hinge eye type 36 and a hinge holder type 42. Both parts are firmly connected to each other with a rivet. You can choose from the pipe connector T-joint for pipe diameters of 26.9 mm (3/4"), 33.7 mm (1/2"), 42.4 mm (1 1/4"), 48.3 mm (1 1/2") and 60.3 mm (2"). The material of the pipe connector type 44 is GALVANIZED CAST IRON.



Please note: When using this articulated pipe connector, the connected pipe must be firmly clamped at another location to ensure a stable construction.



With the pipe connectors for round tubes, you can quickly, effectively and variably create stable pipe constructions with high cost efficiency.



Round pipe connector for railings, barriers, exhibition stands and much more

Do you need beautiful, high-quality tube connectors for a round pipe? Our round pipe connectors are suitable for a wide range of constructions, such as scaffolding, balustrades, barriers, room dividers, frames, playgrounds, railings, fall protection, protective barriers and much more. They can be screwed on and are attached to the respective round pipe using an integrated threaded rod.



With these round pipe connectors made of galvanised or painted cast iron, pipes in various designs can be mounted. The Allen screws used ensure a stable connection (inside or outside). Simple and quick assembly and disassembly are also guaranteed. Most of our round pipe connectors are available at short notice and are TÜV-approved.

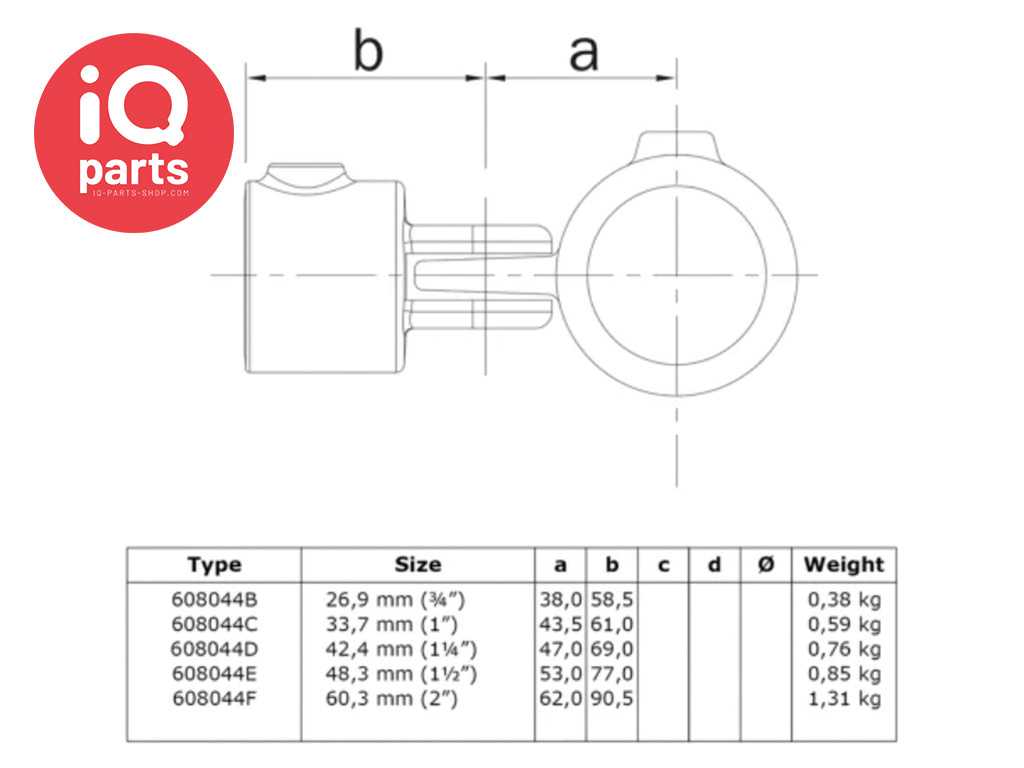

You can choose from pipe connectors in 6 different diameters. (21.3 mm, 26.9 mm, 33.7 mm, 42.4 mm, 48.3 mm and 60.3 mm).
