CPC - PLC400M10 / PLCD400M10 | Coupling Insert | Panel Mount | PTF Nut 10,0 mm OD / 8,0 mm ID
Brand:
CPC
| Article number: | CPC-PLCD400M10 |
| SKU: | PLCD400M10 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - PLC400M10 / PLCD400M10 | Coupling Insert | Panel Mount | PTF Nut 10,0 mm OD / 8,0 mm ID

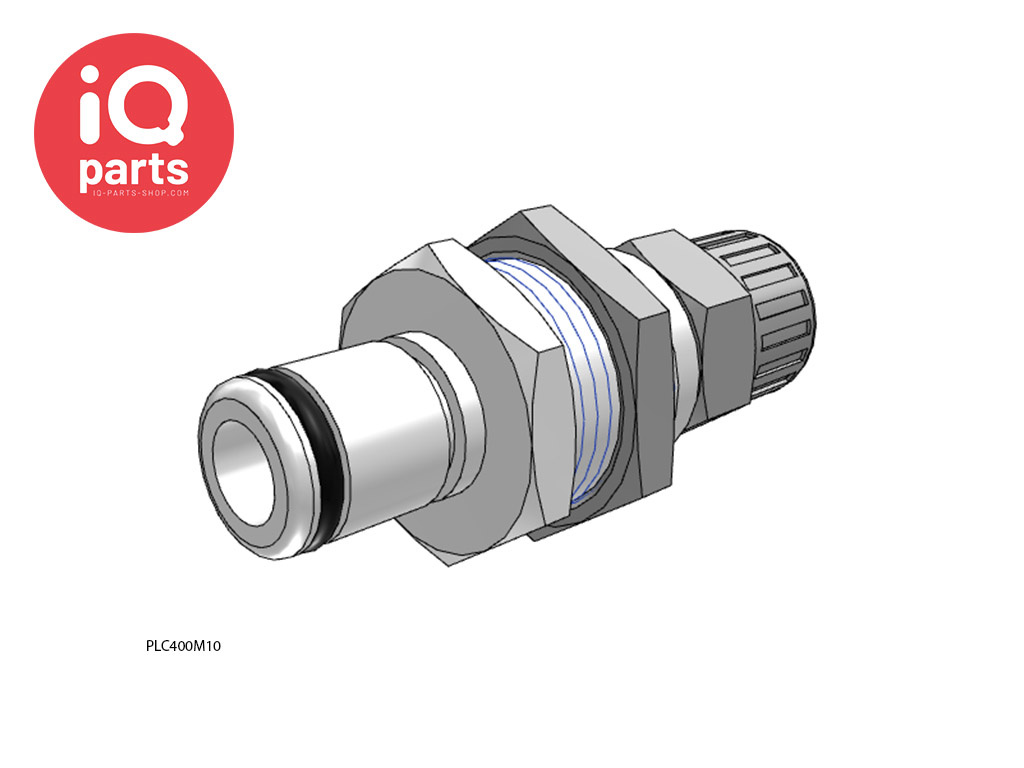

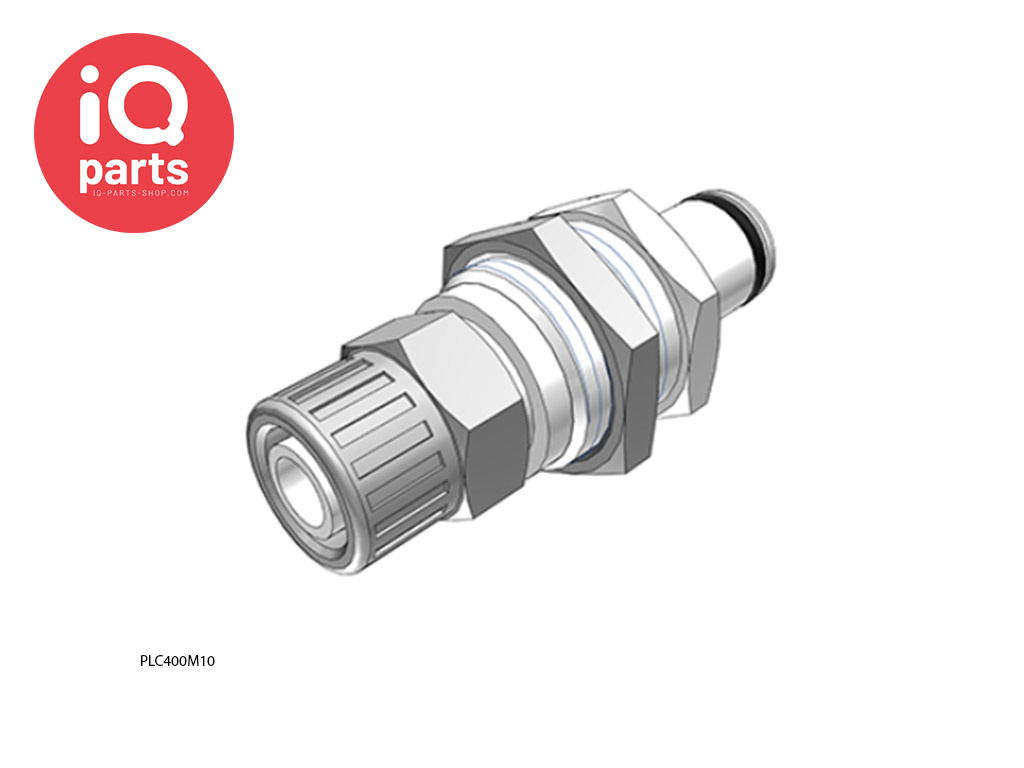

A In-line coupling Insert of CPC from the PLC series with a 10.0 mm PTF Nut and suitable for panel mounting through the male thread and fastening nut.
CPC’s Ferruleless Polytube Fitting terminations (PFT) do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

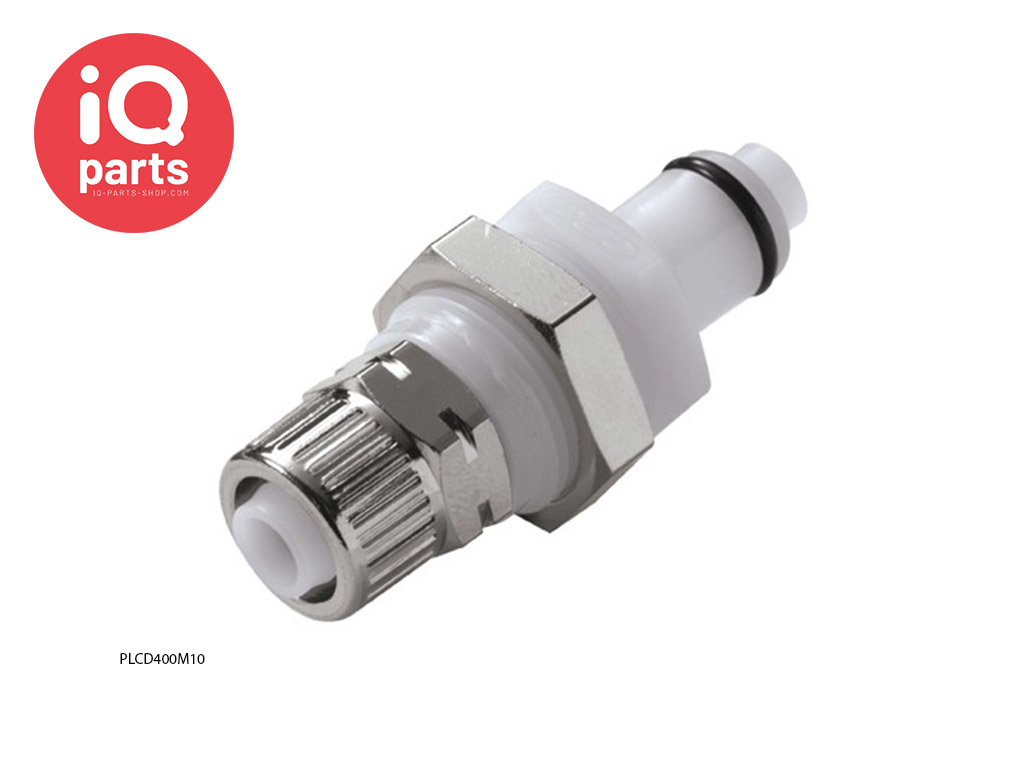

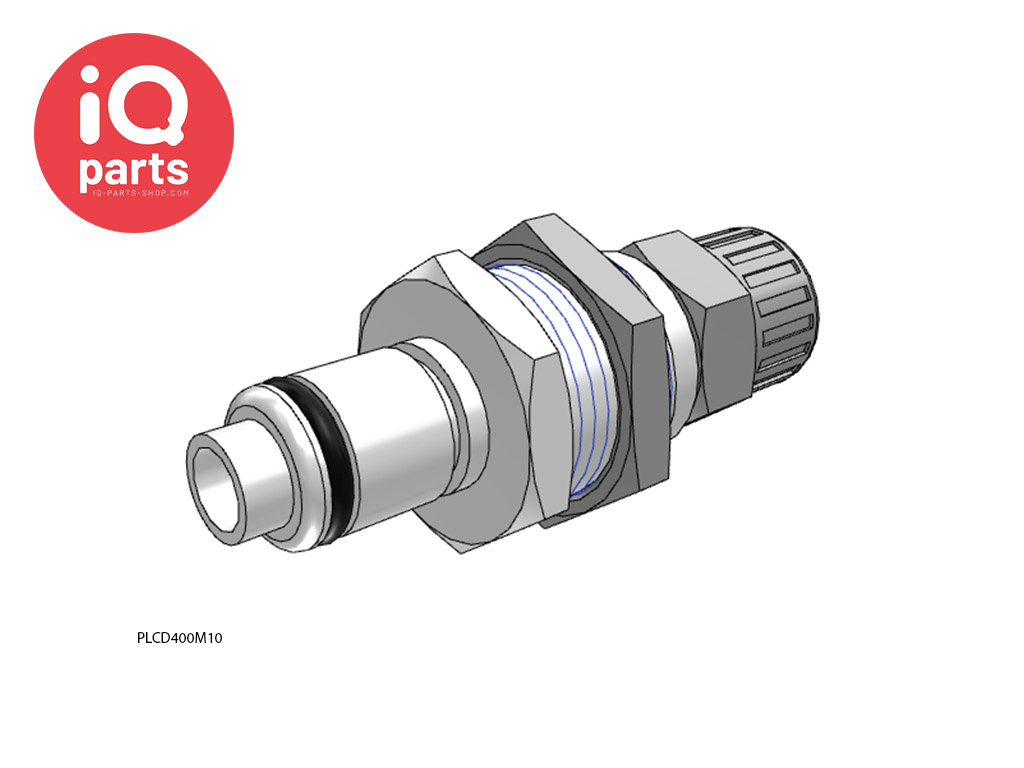

This quick coupling (male) ensures a leak-free seal and is made of Acetal. This coupling is available with a valve (PLCD400M10) and without a valve (PLC400M10). (Choose at the top right at "Make a choice:")Properties of the coupling from the PLC series:
- Integral terminations
- Compatible
- Click when connected
- No leakage
- Shorter assemblies, faster installation
- Also mates with PLC12 and LC series couplings
- Assurance of a reliable connection
Applications:
- Floor cleaning equipment
- Filtration of deionized water
- Dosing systems
- Automated Machines
- Compression Therapy
- Leak Detectors
General information about the PLC series:
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. One-hand connection/disconnection, plus integral terminations make the PLC Series the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie, LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Acetal, thumb latch is stainless steel
- Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | In-line Coupling Insert |
| Seal: | Buna-N (NBR) |
| Hose connection: | 10,0 mm OD / 8,0 mm ID |
| Weight: | -- |
