CPC - PLCD17004V | Coupling body | Acetal | Hose barb 6 - 7 mm
Brand:
CPC
| Article number: | CPC-PLCD17004V |
| SKU: | PLCD17004V |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

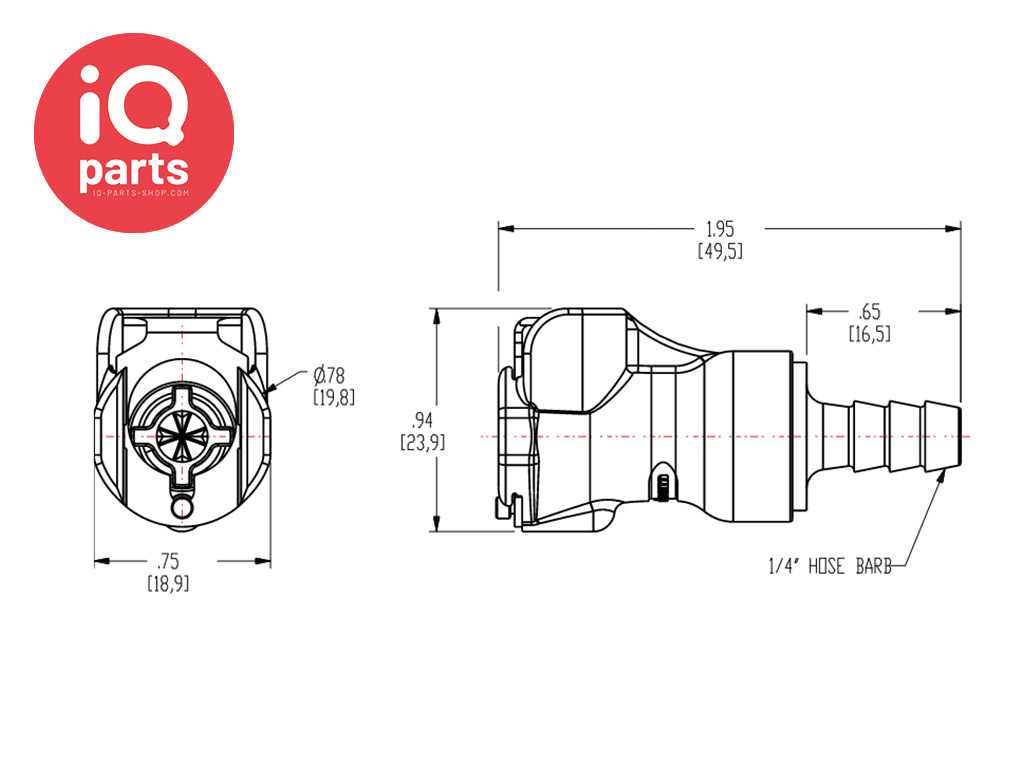

CPC - PLCD17004V | Coupling body | Acetal | Hose barb 6 - 7 mm
The PLCD17004V coupling with valve and a 6,4 mm hose connection for 6 to 7 mm (Inner diameter) fuel hose.
The integrated VITON seal (FKM) makes the PLCD17004V suitable for use in combination with fuel.
Suitable for the following and many other motorcycle models:
- APRILIA - Caponord
- APRILIA - RSV Tuono
- APRILIA - RST 1000
- BMW - R 1150 GS Adventure
- TRIUMPH - Sprint
General information about the PLC series:
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. One-hand connection/disconnection, plus integral terminations make the PLC Series the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie, LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Acetal, thumb latch is stainless steel
- Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Viton (FKM)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Petrol |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | Quick coupling |
| Seal: | Viton (FKM) |
| Hose connection: | 6 - 7 mm Inner diameter |
| Weight: | -- |
