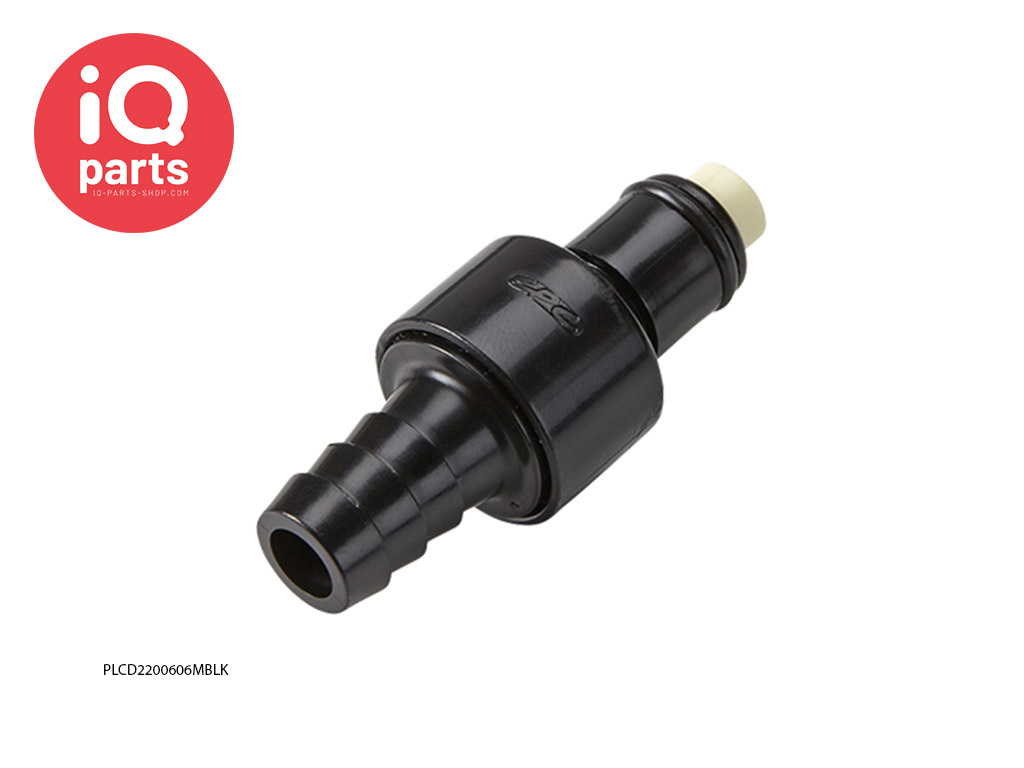

CPC - PLCD2200606 / PLCD2200606MBLK | Coupling Insert | ABS | Hose barb 9,5 mm (3/8")
Brand:
CPC
| Article number: | CPC-PLCD2200606 |
| SKU: | PLCD2200606 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - PLCD2200606 / PLCD2200606MBLK | Coupling Insert | ABS | Hose barb 9,5 mm (3/8")
An Inline coupling Insert from CPC from the DTLD series with a 9,5 mm hose tail. This quick coupling (male) ensures a leak-free seal and is made of ABS. This coupling is available in white (PLCD2200606) and molded black (PLCD2200606MBLK). (Choose at the top right at "Make a choice:")
Properties and benefits of the coupling from the DTLD series:
- Single thumb latch; Minimizes inadvertent latch activation
- Latch always in position to accept insert; Ensures leak-free operation
- Compact, modular design; Fits well in de hand and is easy to wipe down
- Independent quick connections; Requires minimal manual dexterity
General information about the DTLD series:
The 1/4" flow DTLD Series dual flow couplings provide a unique thumb latch with independent or simultaneous connections of loose tube sets. Made from ABS thermoplastic, the DTLD Series valved couplings ensures when connecting one insert, the second insert is prevented from disconnecting.
One-hand operation makes the DTLD Series the choice for simple, independent connections of dual port connections. The DTLD Series is compatible with all PLC, PLC12 and LC Series Inserts. For more technical information, see the PDF.
- Material: ABS
- Thumb latch and retainer: Acetal
- Available in 2 sizes: 6.4 mm and 9.5 mm ID
- With valve
- Internal insert valve: Polypropylene
- Internal body valve: Acetal
- Valve spring made of stainless steel 316 (W5)
- O-rings: Buna-N (NBR)
- Vacuum up to 1.38 bar (20 PSI)
- Temperature range: 0ºC to 48ºC
- Compliance: REACH and RoHS
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 1,38 bar Vacuum |
| Temperature range: | 0° C tot +48° C |
| Material: | ABS, Polypropylene |
| Size: | 1/4" flow |
| Connection: | In-line Coupling Insert |
| Seal: | Buna-N (NBR) |
| Hose connection: | 9,5 mm (3/8") Inner diameter |
| Weight: | -- |
