CPC - PLCD23004V | Elbow Coupling Insert | Acetal | Hose barb 6 - 7 mm

€16,17 Incl. tax
€13,37 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 0 in stock
Delivery time: 2 - 3 weeks
Article number: CPC-PLCD23004V
SKU: PLCD23004V
  • 2 year warranty
  • Delivery time: 2 - 3 weeks
Information

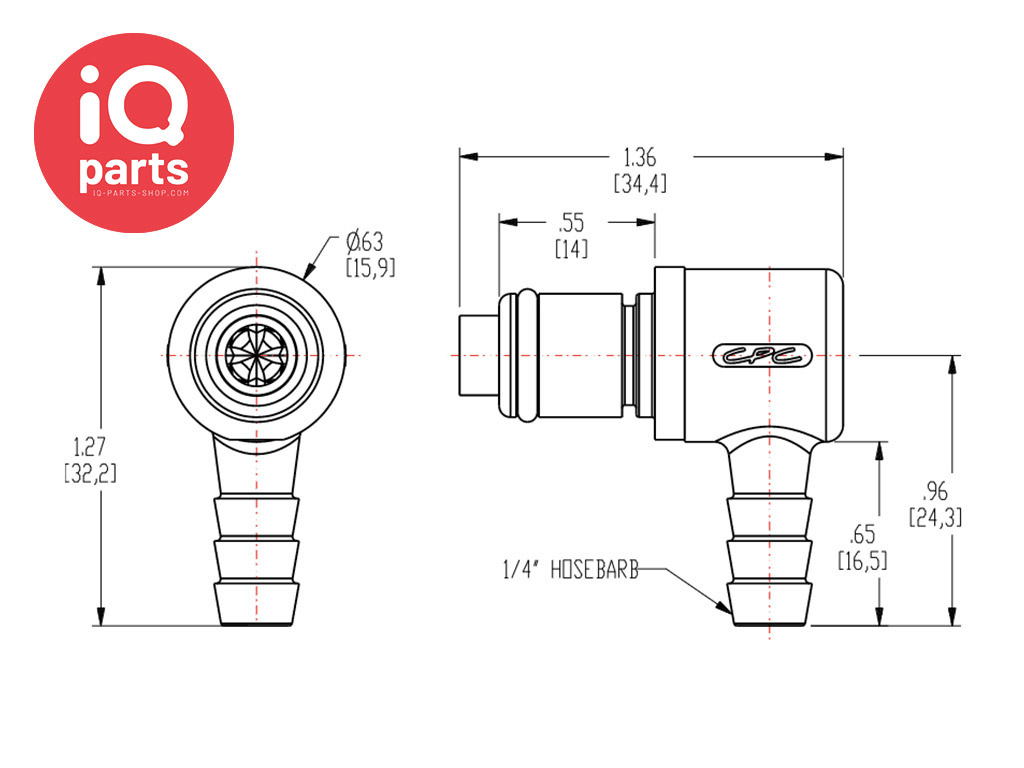

CPC - PLCD23004V | Elbow Coupling Insert | Acetal | Hose barb 6 - 7 mm


The elbow coupling insert PLCD23004V with shut-off valve and a 6,4 mm hose connection for 6 - 7 mm fuel hose. The PLCD23004V has a VITON seal (FKM) and is therefore fuel resistant.

Note:
The hose connection is always slightly larger than the inside diameter of the fuel hose so that the hose sits securely on the injector. Outer Diameter at 3/8" ~ 10.5mm.

Suitable for the following and many other engine manufacturers:
  • BMW - K 1200 S
  • BMW - GS 1150
  • BMW - R 1100 GS Adventure
  • TRIUMPH - Daytona 955i (1999-2001)
  • TRIUMPH - Daytona T595 (1999-2001)
  • TRIUMPH - Speed Triple 955i
  • TRIUMPH - Sprint RS
  • TRIUMPH - Tiger 955i (This model needs two different coupling inserts !!!)

General information about the PLC series:
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. One-hand connection/disconnection, plus integral terminations make the PLC Series the choice for ease of use and manufacture.

These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie,  LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.

  • Material: Acetal, thumb latch is stainless steel
  • Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
  • Available with clamping ring coupling, hose tail or male or female thread
  • With and without valve, Valve spring made of stainless steel 316 (W5)
  • Available with panel mounting option
  • O-rings: Viton (FKM)
  • Vacuum up to 8.3 bar (120 PSI)
  • Temperature range: -40ºC to 82ºC constant

Look at related products for the right choice for your application or contact our sales department: [email protected]


Specifications
Medium: Liquid / Air / Petrol
Operating Pressure: 8,3 bar Vacuum
Temperature range: –40° C tot +82° C
Material: Acetal
Size: 1/4" flow
Connection: Elbow hose barb
Seal: Viton (FKM)
Hose connection: 6 - 7 mm Inner diameter
Weight: --
