CPC - PLCD23006V | Elbow Coupling Insert | Acetal | Hose barb 8 - 10 mm
Brand:
CPC
| Article number: | CPC-PLCD23006V |
| SKU: | PLCD23006V |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

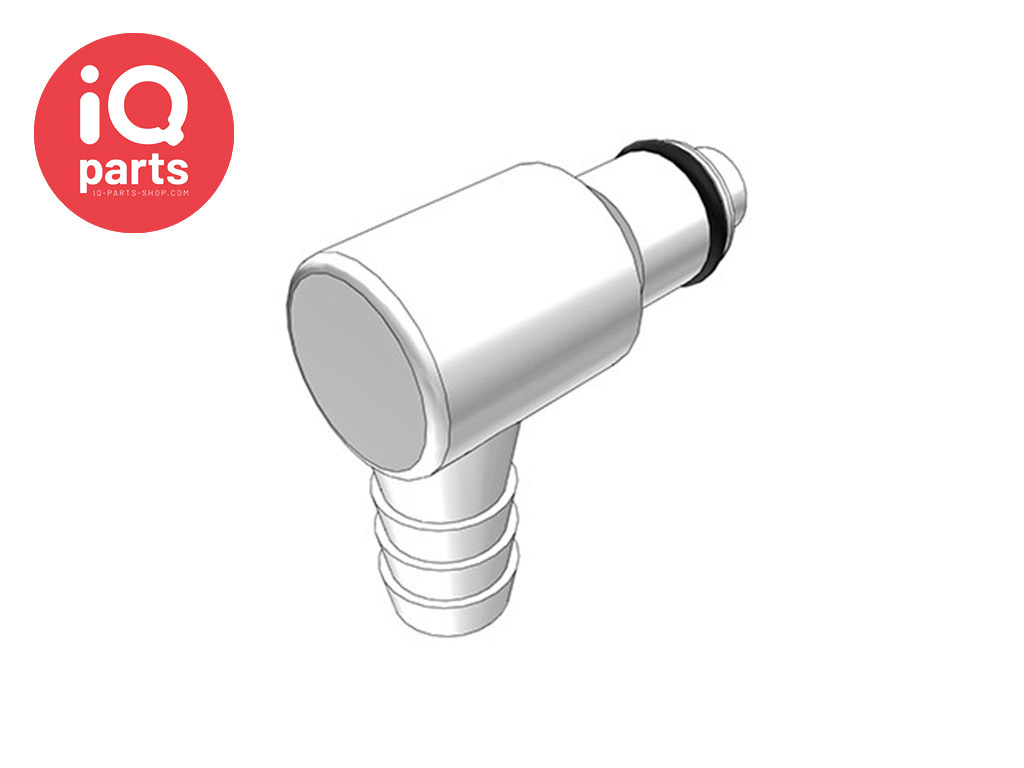

CPC - PLCD23006V | Elbow Coupling Insert | Acetal | Hose barb 8 - 10 mm
The elbow coupling insert PLCD23006V with shut-off valve and a 9.5 mm hose connection for 8 to 10 mm fuel hose. The PLCD23006V has a VITON seal (FKM) and is therefore fuel resistant.
Note:
CPC does not manufacture this elbow coupling insert with an 8 mm hose connection. Normally the 9.5 mm hose barb will also fit an 8 mm fuel hose, albeit with some effort. The hose connection is always slightly larger than the inside diameter of the fuel hose so that the hose sits securely on the injector. Outer Diameter at 3/8" ~ 10.5mm.
Suitable for the following and many other engine manufacturers:
- APRILIA
- CAGIVA
- DUCATI
- KTM
- MV AGUSTA
- TRIUMPH
- BMW
- MOTO GUZZI
General information about the PLC series:
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions. One-hand connection/disconnection, plus integral terminations make the PLC Series the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PLC-serie, LC-metal series and PLC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Acetal, thumb latch is stainless steel
- Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Viton (FKM)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Petrol |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/4" flow |
| Connection: | Elbow hose barb |
| Seal: | Viton (FKM) |
| Hose connection: | 8 - 10 mm Inner diameter |
| Weight: | -- |
