RTC Plug - BSP Male Thread SC Series HB Fire Brigade DN11 (formerly Oetiker)
- Buy 5 for €57,96 each and save 10%
- Buy 10 for €54,74 each and save 15%
- Buy 15 for €51,52 each and save 20%
| Article number: | OTK-35500250-BR |
| SKU: | 35500250 |
- 2 year warranty
- Delivery time: 2 - 3 days after order date

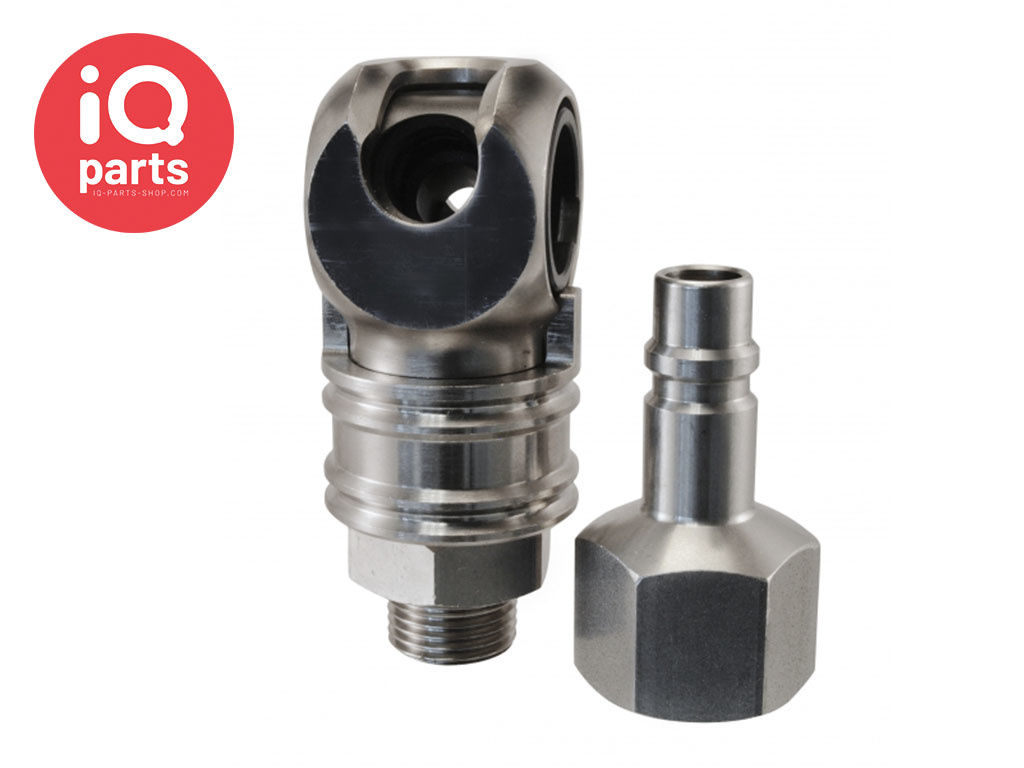

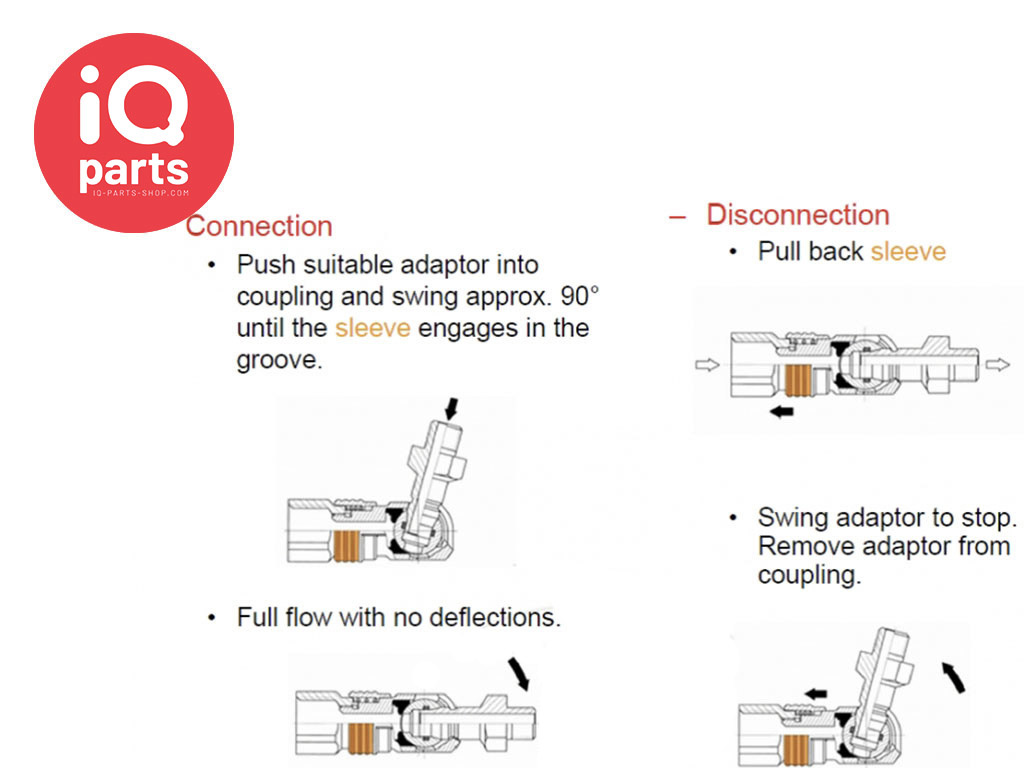

RTC (formerly Oetiker) Plug - BSP Male Thread SC Series HB Fire Brigade DN11, always connect and disconnect by kinking without danger
RTC Swing Couplings SC are available in nominal sizes DN6 to DN11 and in different models. They are compatible with most popular plug systems. The many different types and models and a wide choice of seals and lubricants means that RTC Couplings are suitable for numerous applications throughout industry.
Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA
Features:- Suitable for mounting on HP dry extinguishing line
- Developed for Outdoor applications

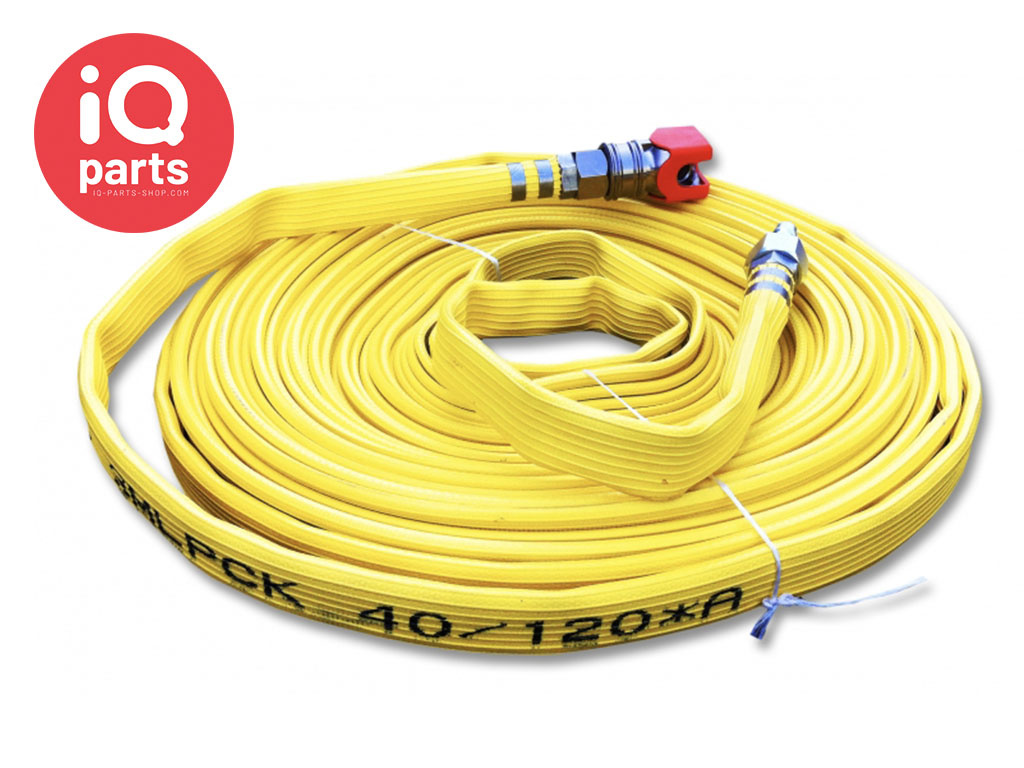

- Suitable for mounting on small-pack attack hoses
- Full flow, no restrictions
- Optimum flow rate
- Safe connection and disconnection under 50 bar pressure
- Suitable for quickly extending hoses under pressure
- Fire guncan be changed under pressure
- Plug nipples permanently burr-free due to the use of hardened material
- No leakage due to 3-fold sealing
- Unwanted disconnection not possible
- Economical to purchase and use
- Compact dimensions
- Easy to clean due to the free passage
Specifications
- DN 11
- Medium: Cold water with any extinguishing additives
- Operating pressure: 0-50 bar
- Connection and disconnection up to 50 bar
- Suitable for vacuum up to 0.1 bar
- Coupling housing: Brass, Nickel-plated
- Drum: Aluminium, Anodized
- Locking ring: Brass, Nickel-plated.
- Threaded connection piece: Brass, Nickel-plated
- Plug-in nipples: AISI 304 (W4)
- Option: NPT thread
Applications:
- Cold water
- Fire Brigade
Product code:
35500250-BR - 35500075-BR - 35500327-BR - 35500394-BR
| Orifice: | DN 11 |
| Material: | AISI 304 (W4) |
| Sealing: | -- |
| Air Pressure: | Max. 50 Bar |
