CPC - PMC1702 / PMCD1702 | Coupling Body | Acetal | Hose barb 3,2 mm (1/8")
Brand:
CPC
| Article number: | CPC-PMCD1702 |
| SKU: | PMCD1702 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information

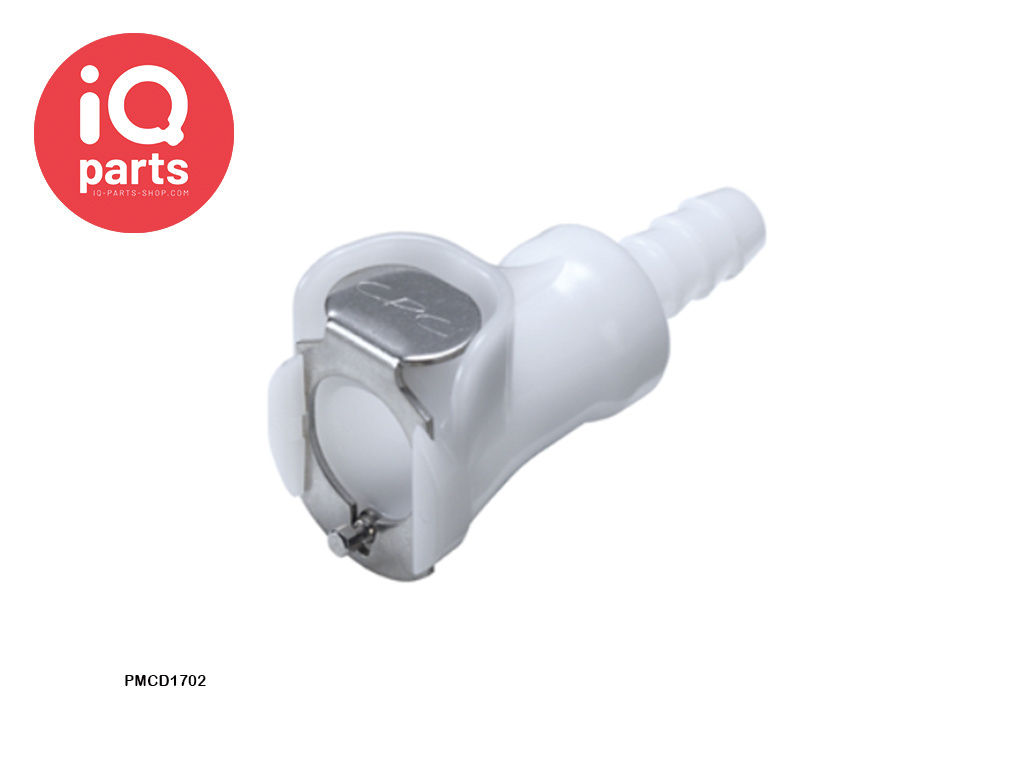

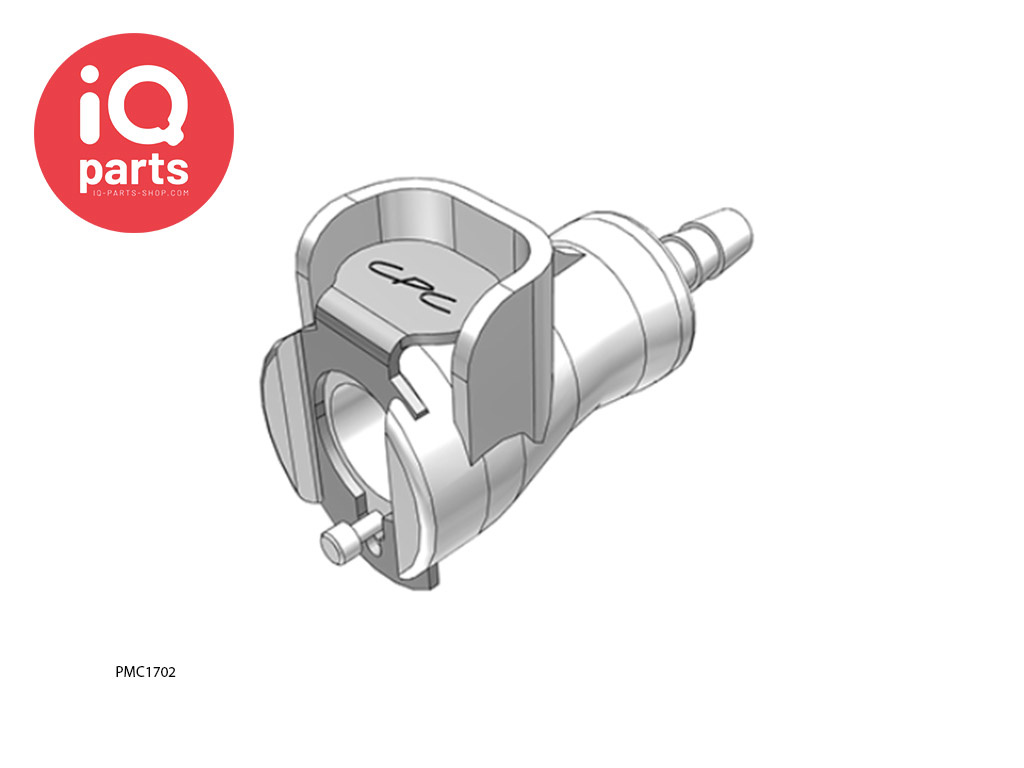

CPC - PMC1702 / PMCD1702 | Coupling Body | Acetal | Hose barb 3,2 mm (1/8")
An in-line coupling of CPC from the PMC series with a 3,2 mm Hose Barb. This quick coupling (female) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (PMCD1702) or without a valve (PMC1702). (Choose at the top right at “Make a choice:”)
Properties of the coupling from the PMC series:
- Hose barb shroud
- Integral terminations
- Compatible
- Click when connected
- Extra protection with the 1/16” hose barb
- No leakage
- Shorter assemblies, faster installation
- Also mates with PMC12 and MC series couplings
- Assurance of a reliable connection
Applications:
- Gas test systems
- Medical supplies
- Chemical Analyzers
- Optical Test Equipment
- Inkjet printers
- Carpet cleaners
General information about the PMC series:
PMC Series Couplings have 1/8" flow and are used in a variety of general purpose applications. The CPC Thumb Latch makes the PMC easier to use than designs with ball and sleeve connectors. Connect and disconnect with one hand and integral terminations make the PMC the choice for ease of use and manufacture.
These couplings offer the flexibility of multiple configurations and terminations and mate with PMC-serie, MC-metal series and PMC12-serie polypropylene couplings. For more technical information, see the PDF.
- Material: Acetal, thumb latch is stainless steel
- Available in various sizes: from 1.6 mm to 6.4 mm ID, also at an angle of 90º
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 8.3 bar (120 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Acetal |
| Size: | 1/8" flow |
| Connection: | In-line coupling |
| Seal: | Buna-N (NBR) |
| Hose connection: | 3,2 mm (1/8") Inner diameter |
| Weight: | -- |
