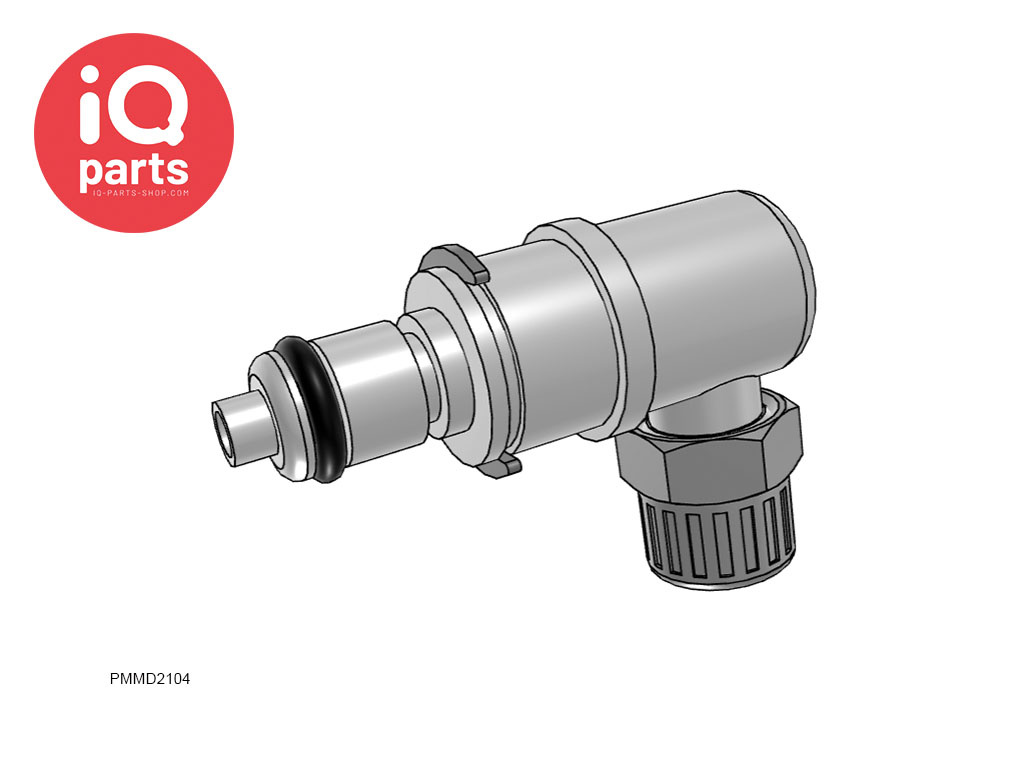

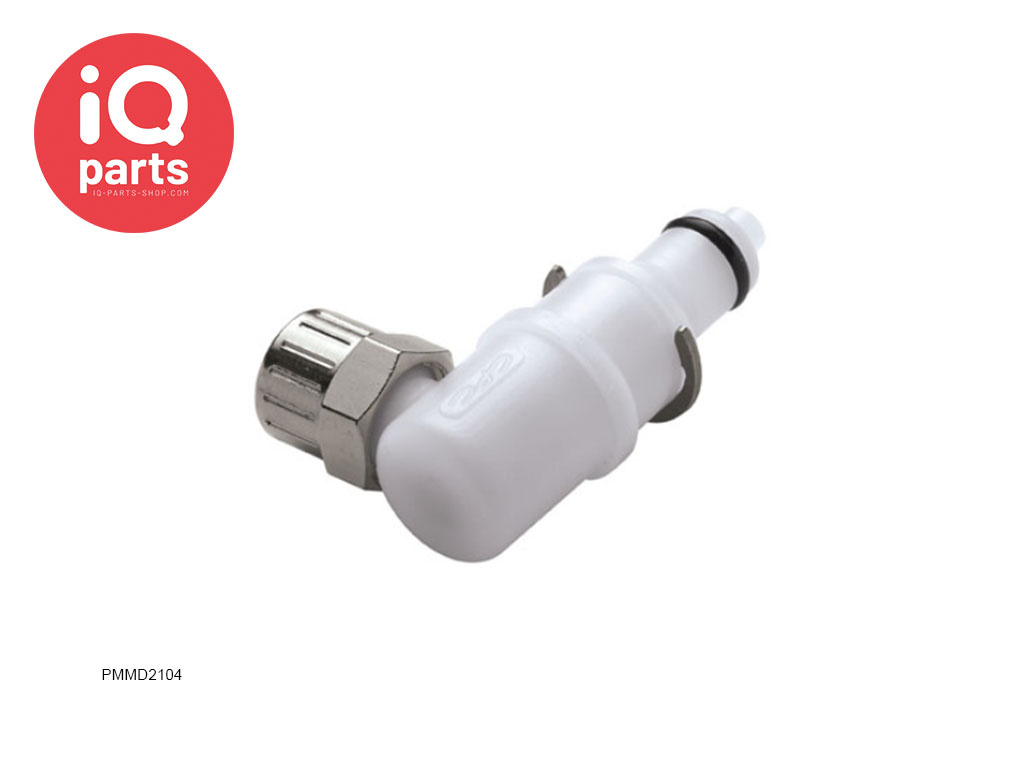

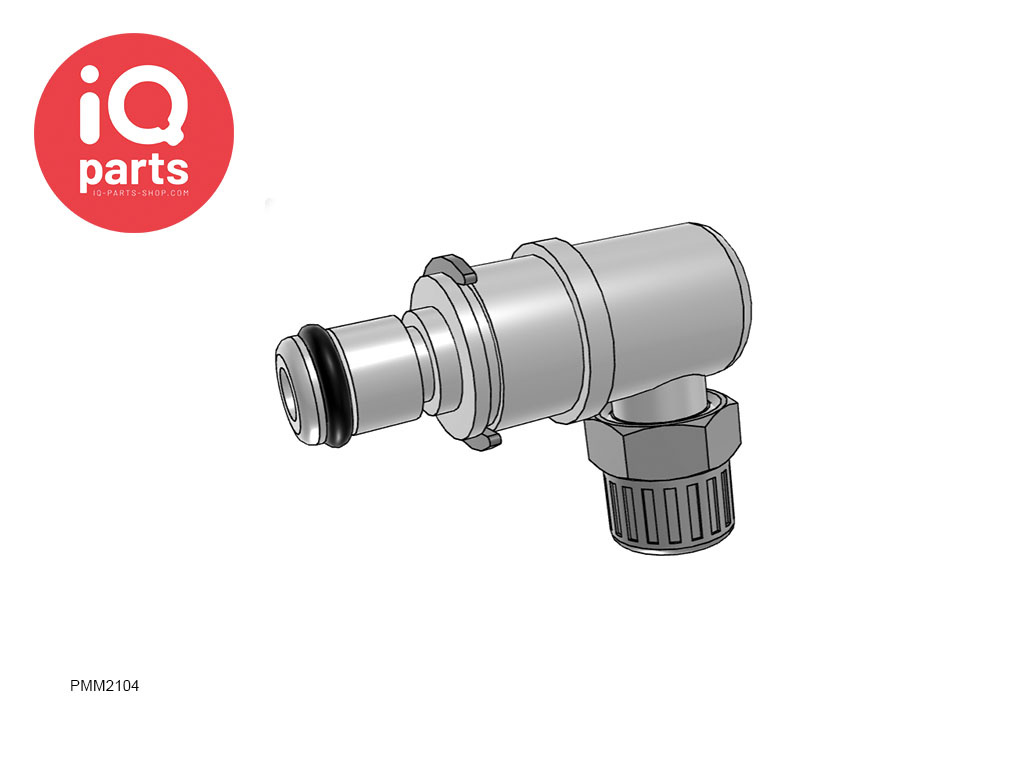

CPC - PMM2104 / PMMD2104 | Coupling Insert | Acetal | PTF Nut 6.4 mm (1/4") OD / 4.3 mm (0.17") ID | Multi-Mount
An elbow coupling insert of CPC from the Multi-Mount series with a PTF Nut 6.4 mm (1/4") OD / 4.3 mm (0.17") ID. This quick coupling (male) ensures a leak-free seal, partly provided by a Buna-N (NBR) sealing ring. This coupling is available with a valve (PMMD2104) or without a valve (PMM2104). (Choose at the top right at “Make a choice:”)
THIS COUPLING INSERT HAS A FLOW OF 1/8”
Multi-Mount couplings provide one easy-to-use coupling for connecting from three to five lines at once. Multi-mount couplings are available in a wide variety of materials including acetal and chrome-plated brass. Multi-mounts are keyed to prevent mismatched connections and can be configured with or without valves for maximum design flexibility.

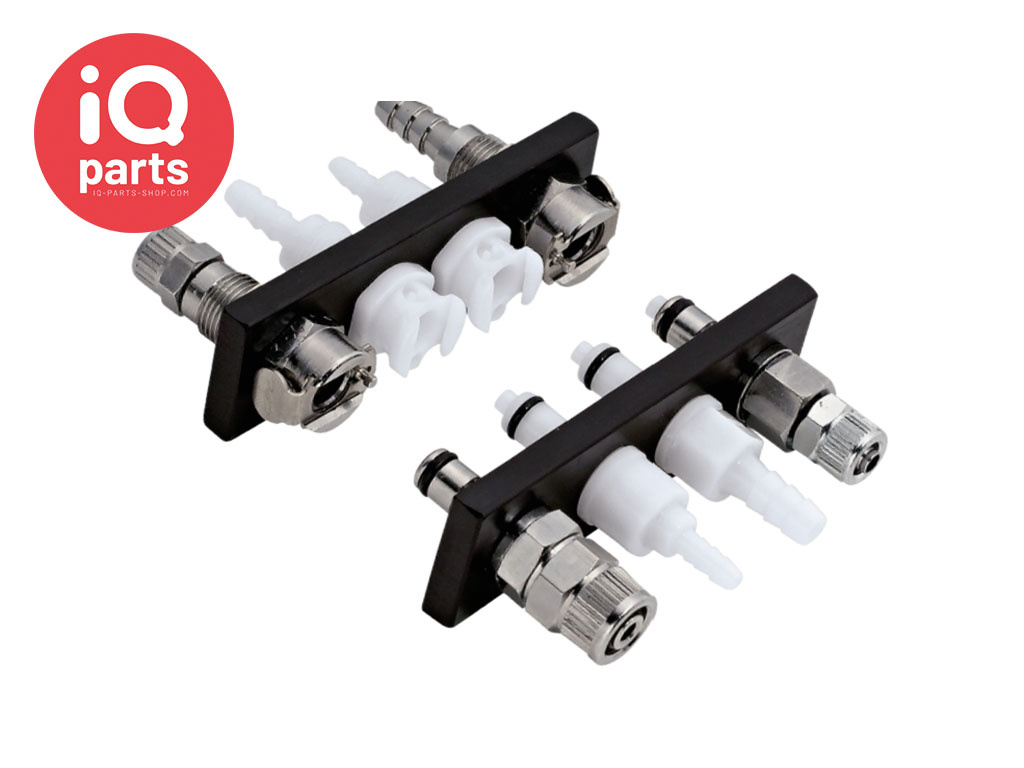

This is how you assemble the Multi-Mount:
- Determine the flow size and type of closure.
- Order two "multiple mounting plates" (one for the coupling bodies and one for the coupling inserts) with the correct number of connection openings for your specific application (available with 3, 4 or 5 openings).
- Order two "standard coupling bodies with thumb locks" for the 2 outer openings. (See the PMC and MC series for 1/8" flow and the PLC or LC series for 1/4" flow)
- Order an appropriate number of "Coupling bodies without Thumb Locks" for the remaining inner openings (From the Multi-Mount series: PMM and MM series for 1/8” flow and PLM and LM series for 1/4” flow)
- Order an appropriate number of "Coupling inserts" (From the Multi-Mount series: PMM and MM series for 1/8” flow and PLM and LM series for 1/4” flow)
You now only need to disconnect the outer 2 quick couplings with the thumb latch to disconnect the entire series.
Applications:
- Gas test systems
- Medical supplies
- Chemical Analyzers
- Optical Test Equipment
- Inkjet printers
- Carpet cleaners
Specifications:
- Material: Acetal
- Available in various sizes: from 3.2 mm to 9.5 mm ID, also in a 90º angle
- Available with clamp ring coupling, hose barb or internal thread
- With and without valve
- Acetal valve, valve spring made of stainless steel 316 (W5)
- Springs, pins and thumb lock: stainless steel
- O-rings: Buna-N (NBR)
- Pressure: Minimum: Vacuum, Maximum: 500 psi (Brass) and 240 psi (Acetal) per single coupling
- Temperature range: -40ºF to 180ºF (-40ºC to 82ºC)
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
Medium: | Liquid / Air |
Operating Pressure: | Minimum: Vacuum, Maximum: 500 psi (Brass) and 240 psi (Acetal) per single coupling |
Temperature range: | -40ºF to 180ºF (-40ºC to 82ºC) |
Material: | Acetal |
Size: | 1/8" flow |
Connection: | Elbow Coupling Insert |
Seal: | Buna-N (NBR) |
Hose connection: | 6.4 mm (1/4") OD / 4.3 mm (0.17") ID |
Weight: | -- |
