Power Clamp W1 - 20 mm double bolt
Brand:
Powerflex
Article number: | PWF-W1-2D-20-032-040 |
SKU: | PWF-W1-2D-20-032-040 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information

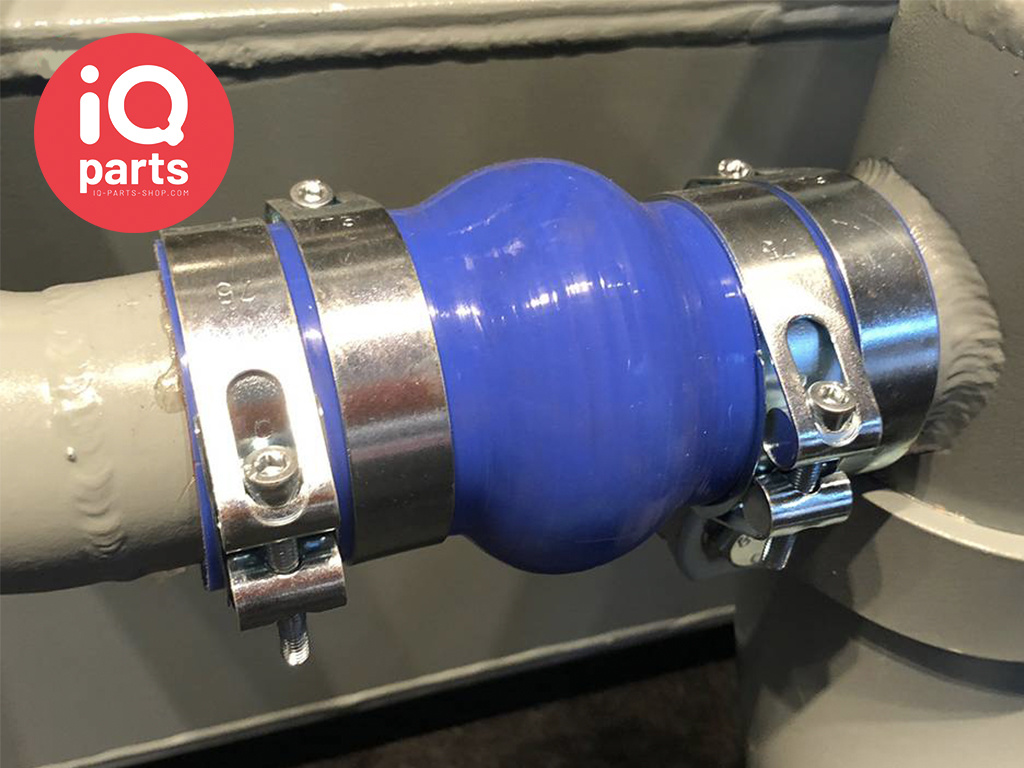

PARI Power Clamp W1 - 20 mm, double bolt
Power-Clamps are designed for heavy-duty industrial hose connections. The 20-1-2 Power-Clamp is configured with two bolts and is fitted with a bridge with raised edges, which prevent shearing of the hose material.
The 20-1-2 Power-Clamp is suitable for many applications.
Material:
- Screw: M6 x 45, DIN 912, W1 (8.8)
- Band 20 mm width, 1mm thick, DIN 1623 W1 (St.12.03) White gegalvanized (Cr3)
Typical applications can be found in the following areas:
- Agricultural
- Drainage systems
- Irrigation systems
- Cooling systems
- Sludge suction systems
Product code:
20-1-2-040 - 20-1-2-045 - 20-1-2-050 - 20-1-2-055 - 20-1-2-060 - 20-1-2-065 - 20-1-2-070 -
20-1-2-075 - 20-1-2-080 - 20-1-2-085 - 20-1-2-090 - 20-1-2-095 - 20-1-2-100 - 20-1-2-110 -
20-1-2-115 - 20-1-2-120 - 20-1-2-125 - 20-1-2-130 - 20-1-2-135 - 20-1-2-140 - 20-1-2-145 -
20-1-2-150 - 20-1-2-155 - 20-1-2-160 - 20-1-2-165 - 20-1-2-170 - 20-1-2-175 - 20-1-2-180 -
20-1-2-190
Specifications
Bolt: | M6 x 45 |
Bandwidth: | 20 mm |
Tightening torque (Maximum): | 10 Nm (Maximum) |
