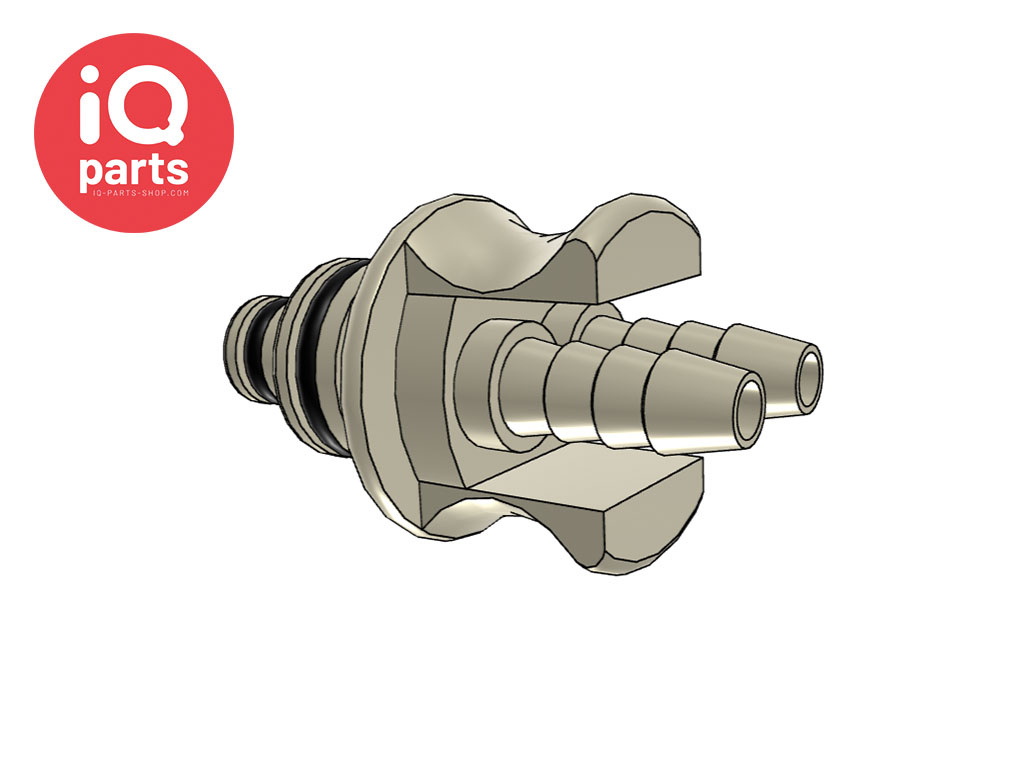

CPC - PTC2202096 | Coupling Insert 2 tubes | ABS | 3,2 mm (1/8") Hose barbs
Brand:
CPC
| Article number: | CPC-PTC2202096 |
| SKU: | PTC2202096 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - PTC2202096 | Coupling Insert 2 tubes | ABS | 3,2 mm (1/8") Hose barbs
An in-line coupling of CPC from the Twin Tube™ -series with 3,2 mm Hose barbs. This quick coupling (male) ensures a leak-free seal and is made of ABS. This coupling is only available without a valve (PTC2202096).
The Twin Tube™ coupling provides one easy-to-use quick disconnect for up to two separate fluid lines. Featuring the CPC thumb latch, the Twin Tube can disconnect up to two lines with the push of a button. The snap-in panel mount design keeps a low profile on the front of the equipment panel.
Characteristics and benefits:
- Connect up to 2 hoses, quickly connect and disconnect.
- Separate flows, pressure or vacuum in 1 coupling.
- Coupling possible in one way, makes sure to connect the correct hoses
- Includes 1 release button, one-hand operation for 2 hoses.
- With option for Panel mounting.
Materials:
- Main components: ABS (Also available in Acetal)
- External springs and pin: Stainless Steel
- 0-ring: Buna-N
Specifications:
- Working pressure: vacuum up to 8,3 bar (120 PSI)
- Operating Temperature: -40ºC to 82ºC
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Chemicals |
| Operating Pressure: | 8,3 bar Vacuum |
| Temperature range: | -40º to 180º F (-40° C to +82° C) |
| Material: | ABS |
| Size: | -- |
| Connection: | In-line Coupling Insert |
| Seal: | BUNA-N (NBR, Nitrile Rubber) |
| Hose connection: | 3,2 mm (1/8") Inner diameter |
| Weight: | -- |
