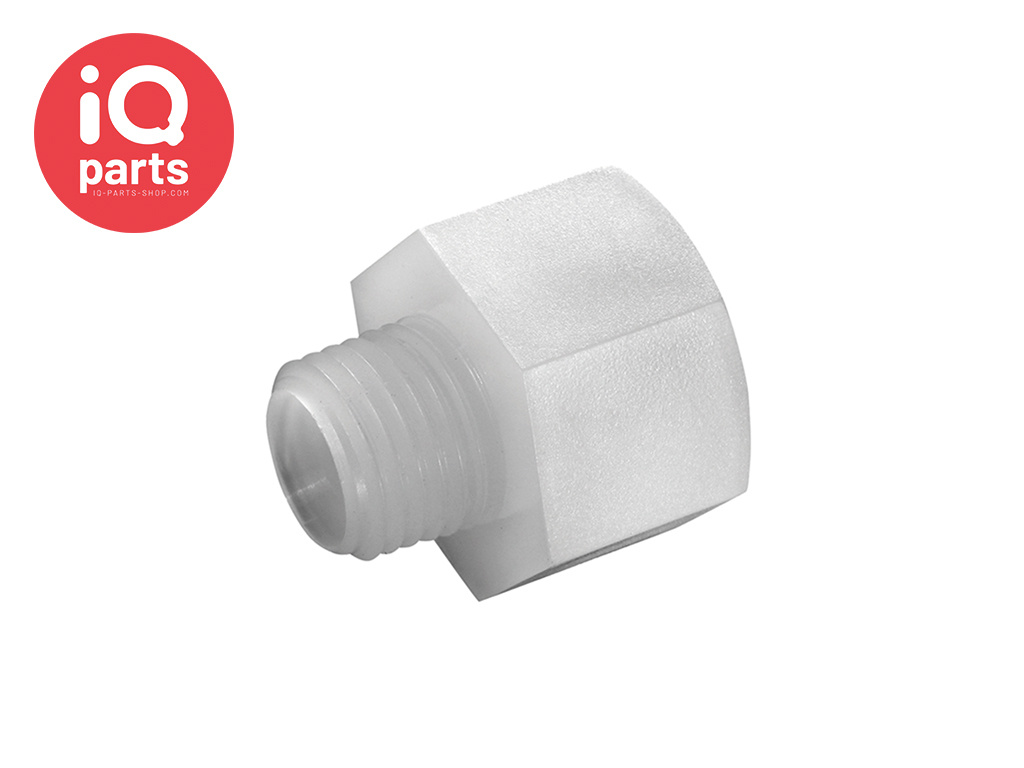

TEFEN PVDF Pipe Adaptor | BSPT Male/Female
Brand:
TEFEN
Article number: | TEF-PV3-18-18 |
SKU: | 12052002021 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information
TEFEN PVDF Pipe Adaptor | BSPT Male/Female
PVDF is suitable for exposure to a wide temperature range and has excellent resistance to highly corrosive chemicals. NSF / ANSI 61-G & 372 approved, suitable for drinking water.
Material:
PVDF, swivels made of fiberglass-reinforced polypropylene
Temperature:
-20 ° C to + 120 ° C
Maximum working pressure:
14 bar at 20 ° C
Characteristics of PVDF:
- Suitable for use with hot and cold water
- Good resistance to strong and weak acids
- Good resistance to strong and weak detergents
Recommended tightening torque:
- 1/8”: 0.1 NM (0.07 ft lb)
- 1/4”: 1 NM (0.8 ft lb)
- 3/8”: 5 NM (3 ft lb)
- 1/2”: 8 NM (6 ft lb)
- 3/4”: 16 NM (12 ft lb)
- 1” : 26 NM (19 ft lb)
Product code:
12052002021 – 12052002041 – 12052002061 – 12052002081 - 12052004021 – 12052004041 – 12052004061 – 12052004081 – 12052006021 – 12052006041 – 12052006061 – 12052006081 – 12052008021 – 12052008041 – 12052008061 - 12052008081
PV3-18-18 - PV3-18-14 - PV3-18-38 - PV3-18-12 - PV3-14-18 - PV3-14-14 - PV3-14-38 - PV3-14-12 - PV3-38-18 - PV3-38-14 - PV3-38-38 - PV3-38-12 - PV3-12-18 - PV3-12-14 - PV3-12-38 - PV3-12-12
