TEFEN PVDF Pipe Reducing Nipple | BSPT
Brand:
TEFEN
| Article number: | TEF-PV1-14-18 |
| SKU: | 12052202021 |
- 2 year warranty
- Delivery time: 1 week after order date
Information

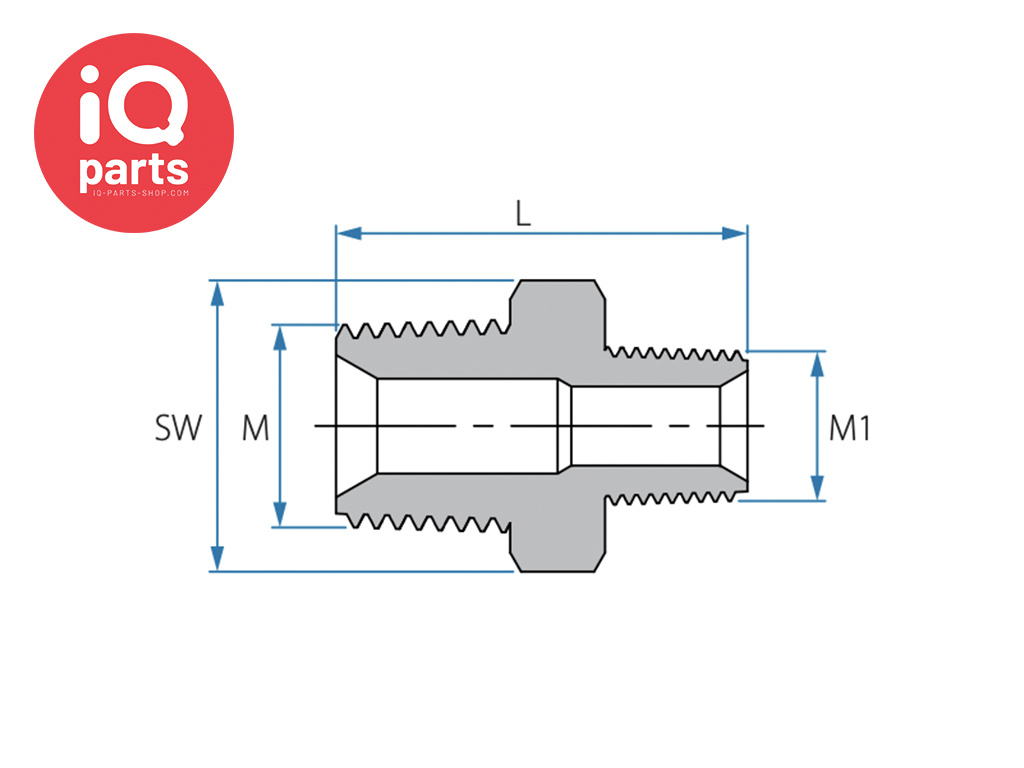

TEFEN PVDF Pipe Reducing Nipple | BSPT Male thread
PVDF is suitable for exposure to a wide temperature range and has excellent resistance to highly corrosive chemicals. NSF / ANSI 61-G & 372 approved, suitable for drinking water.
Material:
PVDF, swivels made of fiberglass-reinforced polypropylene
Temperature:
-20 ° C to + 120 ° C
Maximum working pressure:
14 bar at 20 ° C
Characteristics of PVDF:
- Suitable for use with hot and cold water
- Good resistance to strong and weak acids
- Good resistance to strong and weak detergents
Recommended tightening torque:
- 1/8”: 0.1 NM (0.07 ft lb)
- 1/4”: 1 NM (0.8 ft lb)
- 3/8”: 5 NM (3 ft lb)
- 1/2”: 8 NM (6 ft lb)
- 3/4”: 16 NM (12 ft lb)
- 1” : 26 NM (19 ft lb)
Product code:
12052304021 – 12052306021 – 12052306041 - 12052308041 - 12052308061
PV1-14-18 - PV1-38-18 - PV1-38-14 - PV1-12-14 - PV1-12-38
€11,70 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€12,50 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€12,10 Excl. tax
*
Excl. tax
| Excl. Shipping costs
Sold out
