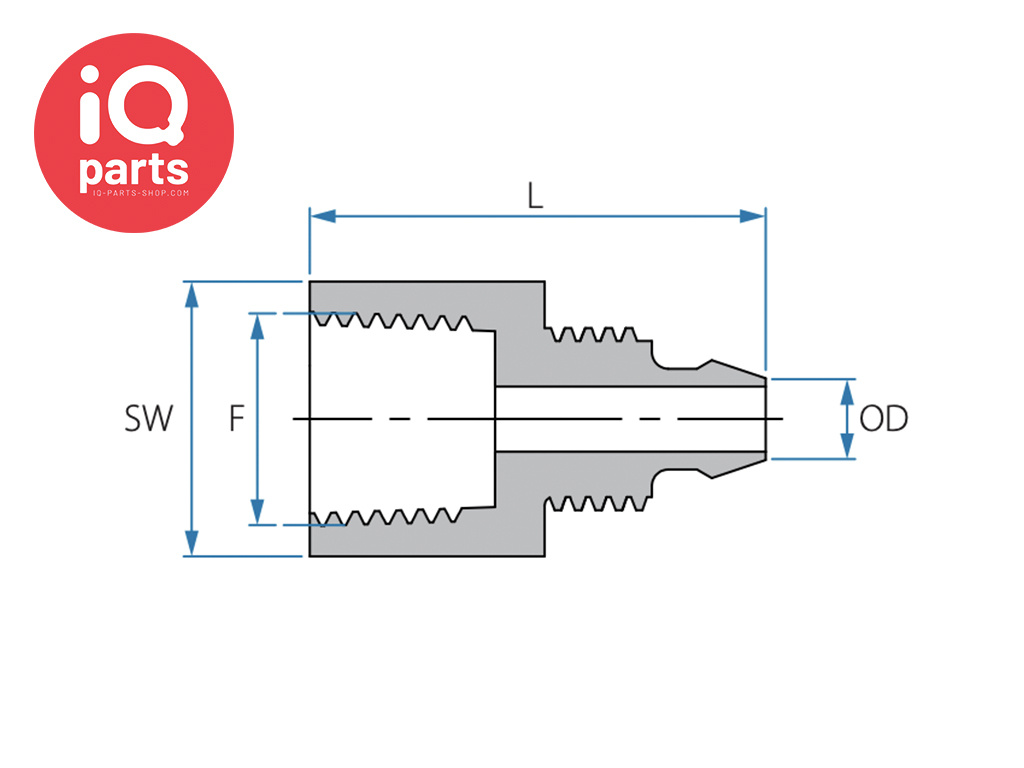

TEFEN PVDF Straight connector BSPT Female
Brand:
TEFEN
| Article number: | TEF-PPV2-06-18 |
| SKU: | 22056646021 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00
Information
TEFEN PVDF Straight connector BSPT Female
PVDF is suitable for exposure to a wide temperature range and has excellent resistance to highly corrosive chemicals. NSF / ANSI 61-G & 372 approved, suitable for drinking water.
Material:
PVDF, swivels made of fiberglass-reinforced polypropylene
Temperature:
-20 ° C to + 120 ° C
Maximum working pressure:
14 bar at 20 ° C
Characteristics of PVDF:
- Suitable for use with hot and cold water
- Good resistance to strong and weak acids
- Good resistance to strong and weak detergents
Recommended tightening torque:
- 1/8”: 0.1 NM (0.07 ft lb)
- 1/4”: 1 NM (0.8 ft lb)
- 3/8”: 5 NM (3 ft lb)
- 1/2”: 8 NM (6 ft lb)
- 3/4”: 16 NM (12 ft lb)
- 1” : 26 NM (19 ft lb)
Product code:
22056646021 - 22056646041 - 22056648021 - 22056648041 - 22056648061 - 22056648081 - 22056650041 - 22056650061 - 22056650081
PPV-2-6-18 - PPV-2-6-14 - PPV-2-8-18 - PPV-2-8-14 - PPV-2-8-38 - PPV-2-6-12 - PPV-2-10-14 - PPV-2-10-38 - PPV-2-10-11
