NORMETTA® Quick Release Latch "OE" inkl. Catch Plate, Stainless Steel AISI 304

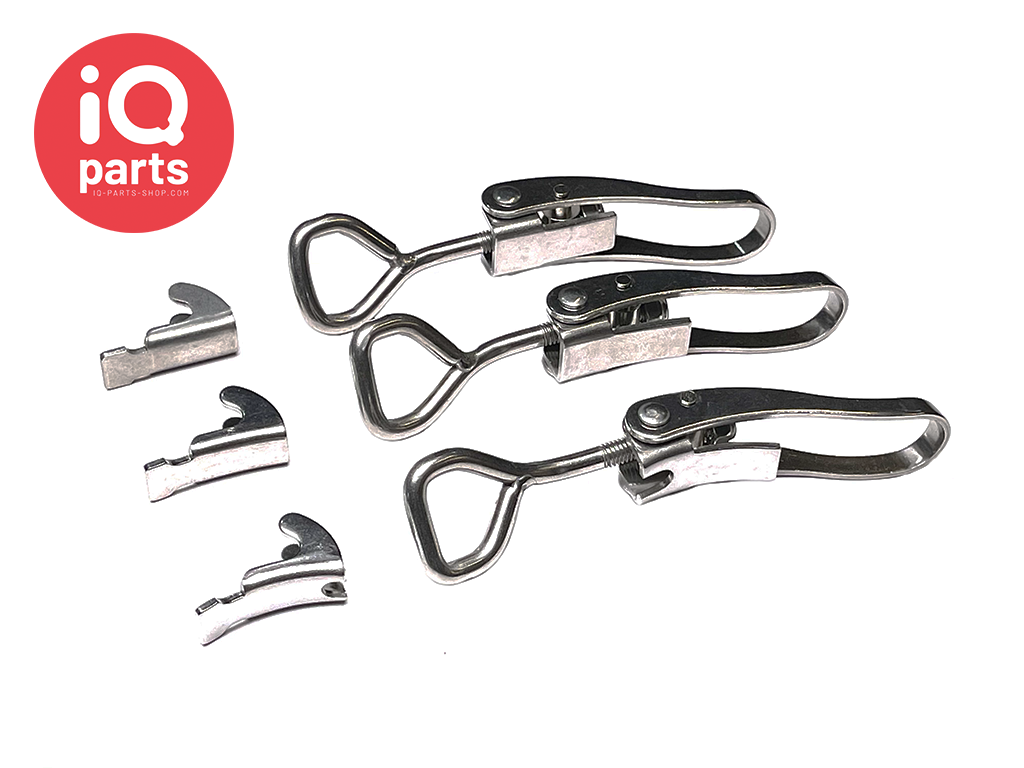

The quick release clamp "OE" (in German OEsenschraube) is a quick release with eye and provided with an M6 thread with a stainless steel M6 lock nut. Due to the short length of the thread, the nut can only be tightened by 20 mm, so that clamps only have a range of + 2.5 and -2.5 mm in diameter. This quick release should be mounted with a spot welder.
The quick release clamps are available in 3 versions for various diameter ranges. The mounting surface of each type of closures has a pre-formed curve for a better fit when mounting on the steel strap.
NOR-05651004124 - Ø 75 - 124 mm
NOR-05651004400 - Ø 125 - 400 mm
NOR-05651004800 - Ø 401 - 800 mm
These quick-release clamps are ideal for steel strap with a minimum width of 16 or 19 mm. With larger diameters it is of course possible to attach several quick release clamps next to each other.
In our workshop we have our own spot welding machine where we can make specific products for you. If you have a question, please contact our sales department.
