Normafix Retaining clamps with brackets HMK SPGU 6011 HD | W1
Brand:
NORMA
- Buy 10 for €34,20 each and save 10%
- Buy 25 for €30,40 each and save 20%
- Buy 50 for €26,60 each and save 30%
- Buy 100 for €22,80 each and save 40%
| Article number: | NOR-SP-SPGU-6011-W1 |
| SKU: | NOR-SP-SPGU-6011-W1 |
- 2 year warranty
- Delivery time: on request
- Customer service 09:00 - 17:00
Information
Normafix Retaining clamps with brackets HMK SPGU 6011 HD | W1 | One-parts | Heavy Duty

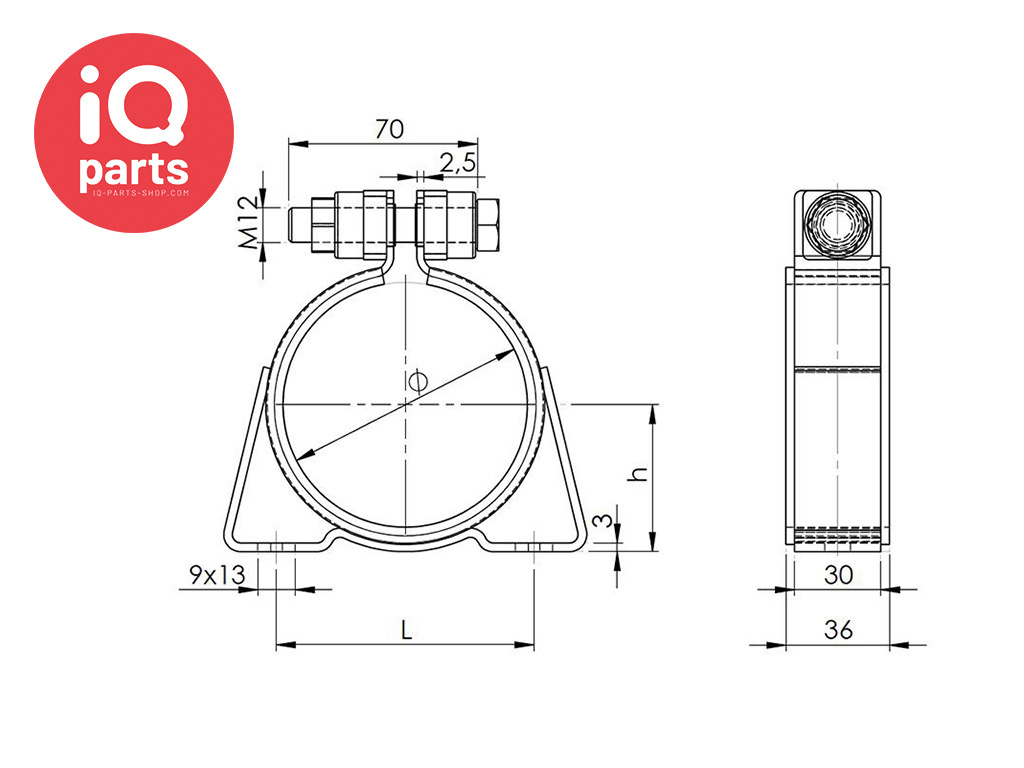

In the NORMAFIX® HMK series, the Accumulator bracket is one of the heavy duty clamps. With these brackets, the ends of the brackets are folded back and welded to the clamping band. Thanks to this design, the clamps are suitable for securing heavy containers, pipes and Accumulators and can withstand high mechanical loads. The SPGU clamps are 30 mm wide, 3 mm thick and equipped with a rubber protection profile (EPDM). The quality is Galvanised Steel W1.
Benefits at a glance:
- Stable construction
- Chrome 6 free surfaces
- Also possible without rubber profile
- Applicable for large diameter hoses
Applications:
- Machine Building
- Chemical industry
- Irrigation systems
- Ship manufacturing
- Food and beverage industry
- Railway industry
- Agricultural machinery
- Building machinery
- Engine manufacturing
- Pumps and filters
- Mining industry
Also available:
- In W4 quality, Galvanised Steel (= SPGU 6241) and on request: W5 quality (stainless steel 316)

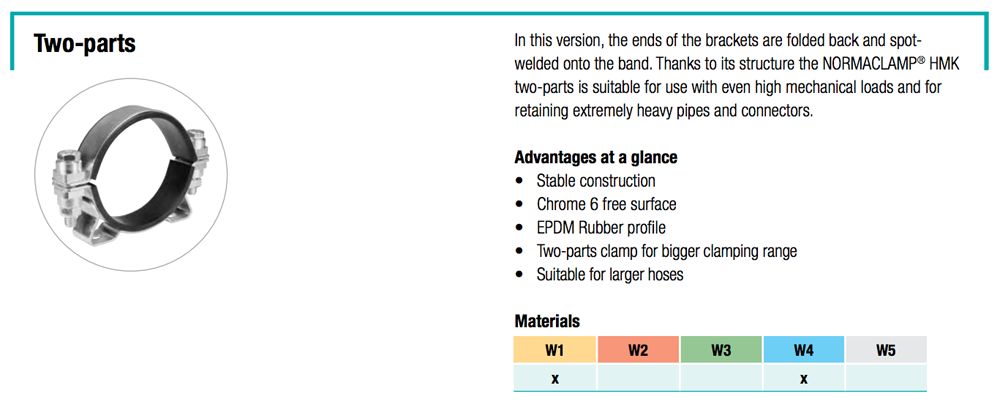

- 2-piece W1 (= SPGU 6025) and W4 (=SPGU 6236)
- On request: Silicone C-Profile
Product code:
1816011080 - 1816011085 - 1816011089 - 1816011092 - 1816011095 - 1816011102 - 1816011108 - 1816011112 - 1816011114 - 1816011117 - 1816011120 - 1816011124 - 1816011125 - 1816011128 - 1816011135 - 1816011136 - 1816011140 - 1816011145 - 1816011146 - 1816011150 - 1816011154 - 1816011156 - 1816011160 - 1816011163 - 1816011165 - 1816011167 - 1816011170 - 1816011172 - 1816011176 - 1816011177 - 1816011179 - 1816011320 - 1816011330 - 01816011080 - 01816011085 - 01816011089 - 01816011092 - 01816011095 - 01816011102 - 01816011108 - 01816011112 - 01816011114 - 01816011117 - 01816011120 - 01816011124 - 01816011125 - 01816011128 - 01816011135 - 01816011136 - 01816011140 - 01816011145 - 01816011146 - 01816011150 - 01816011154 - 01816011156 - 01816011160 - 01816011163 - 01816011165 - 01816011167 - 01816011170 - 01816011172 - 01816011176 - 01816011177 - 01816011179 - 01816011320 - 01816011330
181 6011 080 - 181 6011 085 - 181 6011 089 - 181 6011 092 - 181 6011 095 - 181 6011 102 - 181 6011 108 - 181 6011 112 - 181 6011 114 - 181 6011 117 - 181 6011 120 - 181 6011 124 - 181 6011 125 - 181 6011 128 - 181 6011 135 - 181 6011 136 - 181 6011 140 - 181 6011 145 - 181 6011 146 - 181 6011 150 - 181 6011 154 - 181 6011 156 - 181 6011 160 - 181 6011 163 - 181 6011 165 - 181 6011 167 - 181 6011 170 - 181 6011 172 - 181 6011 176 - 181 6011 177 - 181 6011 179 - 181 6011 320 - 181 6011 330 - 0181 6011 080 - 0181 6011 085 - 0181 6011 089 - 0181 6011 092 - 0181 6011 095 - 0181 6011 102 - 0181 6011 108 - 0181 6011 112 - 0181 6011 114 - 0181 6011 117 - 0181 6011 120 - 0181 6011 124 - 0181 6011 125 - 0181 6011 128 - 0181 6011 135 - 0181 6011 136 - 0181 6011 140 - 0181 6011 145 - 0181 6011 146 - 0181 6011 150 - 0181 6011 154 - 0181 6011 156 - 0181 6011 160 - 0181 6011 163 - 0181 6011 165 - 0181 6011 167 - 0181 6011 170 - 0181 6011 172 - 0181 6011 176 - 0181 6011 177 - 0181 6011 179 - 0181 6011 320 - 0181 6011 330
Specifications
| Bandwidth: | 30 mm |
| Rubber: | EPDM |
