RTC Plug | male thread | without valve | Type 090 | DN 09
Brand:
RTC
| Article number: | RTC-TH090EN10 |
| SKU: | 090.09 PMF 10 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
RTC Plug | male thread | without valve | Type 090 | DN 09

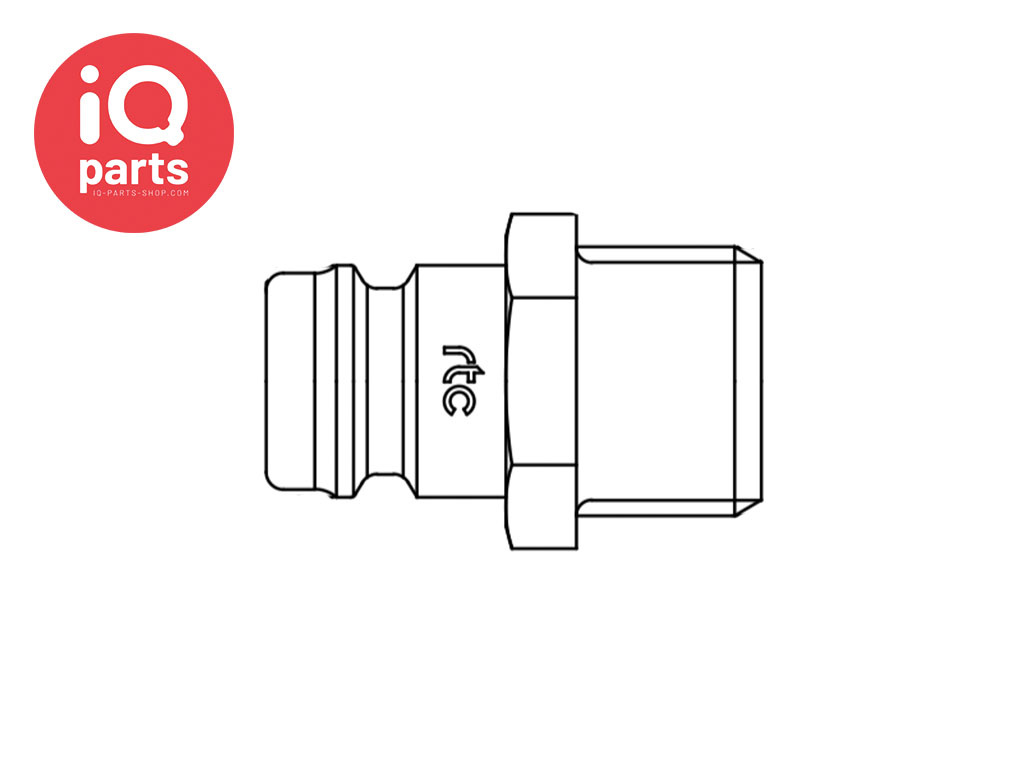

A straight Plug with male thread and without check valve with a flow of 9 mm for mounting on the mold side. Available with metric, BSP or BSPT thread.

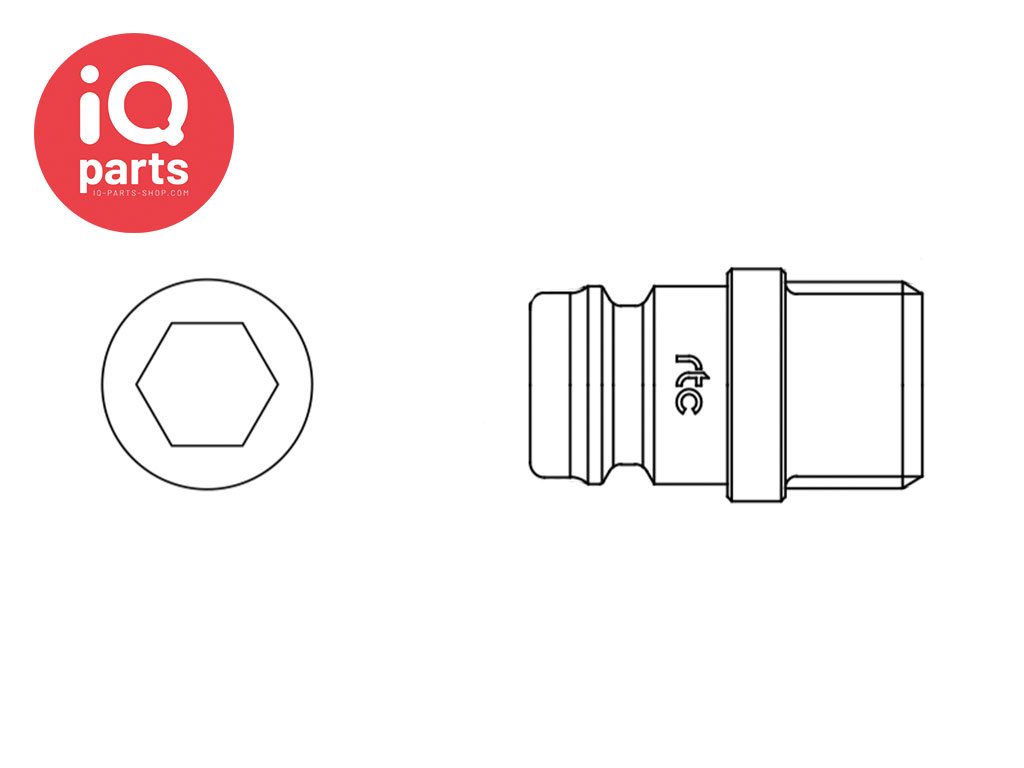

Article RTC-TH090AUG13 and RTC-TH090AUG17 are mounted with a 7 mm hex key.
General description:

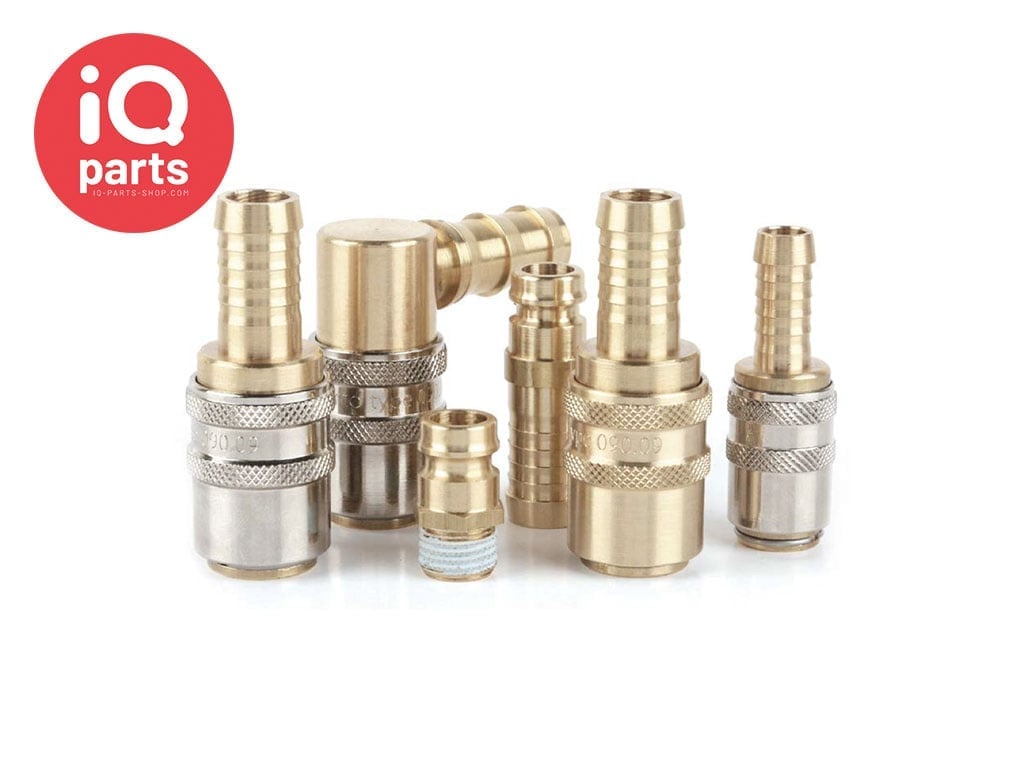

This quick coupling of RTC type 090 ensures a quick and safe connection of your (cooling) hoses. They are mainly used in machines with molds for cooling the moulds.
The couplings are available with a standard hose connection (use of a hose clamp is recommended), with a Push to connect hose barb for the use of Rubber hoses, PVC hoses, Polyurethane (PU) hoses and Nylon hoses or with a male or female thread.
When choosing a hose, make sure it matches the fitting size, pressure rating and material compatibility for the fluid being conveyed.
The couplings are also available with a check valve. CLICK HERE
Applications:
- Cold water
- Cooling water (mould)
- Thermal oil
- Liquids
Specifications:
- Interchangeable with, among others, HASCO, German profile
- Coupling on the machine side
- Plug-in nipple on the mold side
- Application: Mold coupling
- Media: hot/cold water, oil, LD steam
- Temperature -10° to 180°C
- Working pressure: 15 bar
- Clutch housing material: Brass
- Material sleeve without check valve: Nickel-plated brass
- Material sleeve with check valve: Brass
- Seal material: FPM (standard)
- Material balls and spring: stainless steel
- Plug-in nipple material: Brass
Options:
- External thread PTFE coated
- Disconnection protection (S)
- Stainless steel
Product code:
TH090EN10 - TH090EN13 - TH090EN17 - TH090EN21 - TH090RU17 - TH090RU21 - TH090ENM10 - TH090ENM14 - TH090ENM16 - TH090AUG13 - TH090AUG17
090.09 PMF 10 - 090.09 PMF 13 - 090.09 PMF 17 - 090.09 PMF 21 - 090.09 PRF 17 - 090.09 PRF 21 - 090.09 PMF 1010 - 090.09 PMF 1415 - 090.09 PMF 1615 - 090.09 PMFH 13 - 090.09 PMFH 17
Specifications
| Orifice: | DN 09 |
| Material: | Brass & SS |
| Sealing: | FPM (Other materials also available on request) |
| Air Pressure: | Max. 15 Bar |
