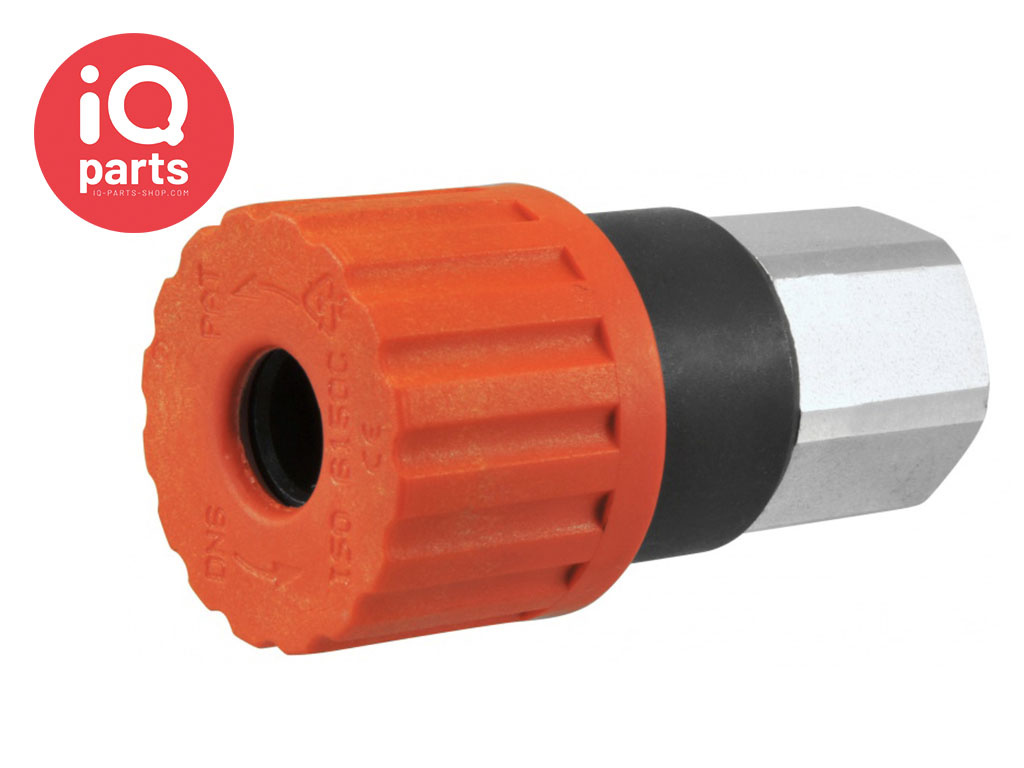

RTC Safety Quick coupling BSP Female thread SV2 Series DN06 with plastic release ring (formerly Oetiker)
- Buy 5 for €36,83 each and save 10%
- Buy 10 for €34,78 each and save 15%
- Buy 15 for €32,74 each and save 20%
| Article number: | OTK-20300181 |
| SKU: | 20300181 |
- 2 year warranty
- Delivery time: 2 - 3 days after order date
- Customer service 09:00 - 17:00
RTC (formerly Oetiker) Safety Quick coupling BSP Female thread SV2 Series DN06 with plastic release ring for 2-stage-disconnection, always connect and disconnect without danger.
Easy to couple by pushing the plug-in nipple into the coupling until it audibly engages. To disconnect, turn the disconnect ring anti-clockwise. However, the safety catch will stop it until the hose has been vented. The insert nipple can only be pulled out after the ring has been turned clockwise. As a result, you always have a safe and quick disconnection.
Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA
- Safe disconnection in accordance with EN983 and ARBO
- According to ISO 6150-C
- Plastic sleeve, does not scratch
- Ergonomic design: Easy to connect under pressure.
- Ergonomic design: Rotate sleeve instead of sliding
- Plug-in nipples permanently burr-free due to the use of hardened material.
- No leakage due to 3-fold sealing
- Robust design, long service life
- Economical to purchase and use
- Also suitable for liquids.
- Sealing nipples available
Specifications
- Temperature range: -20 ° to + 100 ° C with NBR seals
- With Viton seals up to 120 ° C (option)
- Working pressure: 0-25 bar
- Connecting and disconnecting up to 15 bar
- Suitable for vacuum up to 0.1 bar.
- Clutch housing: Steel
- Sleeve: Polyamide
- Threaded connector: Steel
- Hose connector connector: Aluminum
- Weight with 8 mm hose connector: 95 grams
- Plug-in nipples: Hardened steel
- Option: stainless steel 316, see SV2-06SS
- Option: self-closing plug-in nipple
- Option: coupling without valve
- Option: NPT thread
- Option: Viton or EPDM seals
Applications:
- Compressed air
- Gasses
- Cold water
- Liquids
Product code:
20300180 - 20300181 - 20300182 - 20300183
| Orifice: | DN 06 |
| Material: | Steel |
| Sealing: | NBR |
| Air Pressure: | Max. 25 Bar |
