Fernco - Saddle Typ STORM-T
Brand:
Fernco
| Article number: | FRC-ST-150-300 |
| SKU: | ST150-300 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
Fernco - Saddle Typ STORM-T
The Fernco Storm-T is a saddle piece that is primarily designed for the lateral connection of all types of DN 150 pipes with ribbed, double-walled and smooth-walled plastic main pipes.
With the proven seal design, the fastest and most universal connecting element to date has been developed. The innovative solution reduces installation and time costs to a minimum.
Universal
The special properties of the Storm-T ensure a safe connection to various types of plastic pipes. These features include a depth adjustment mechanism that allows the Storm-T to be easily secured in the optimal position during installation. This means that it achieves maximum performance over a wide range of pipe thicknesses. The Storm-T also has a positive fit on the main pipe, which minimizes disruptions and blockages in the flow. The seal on the inside of the side pipe ensures that any DN150 side pipe can be connected.

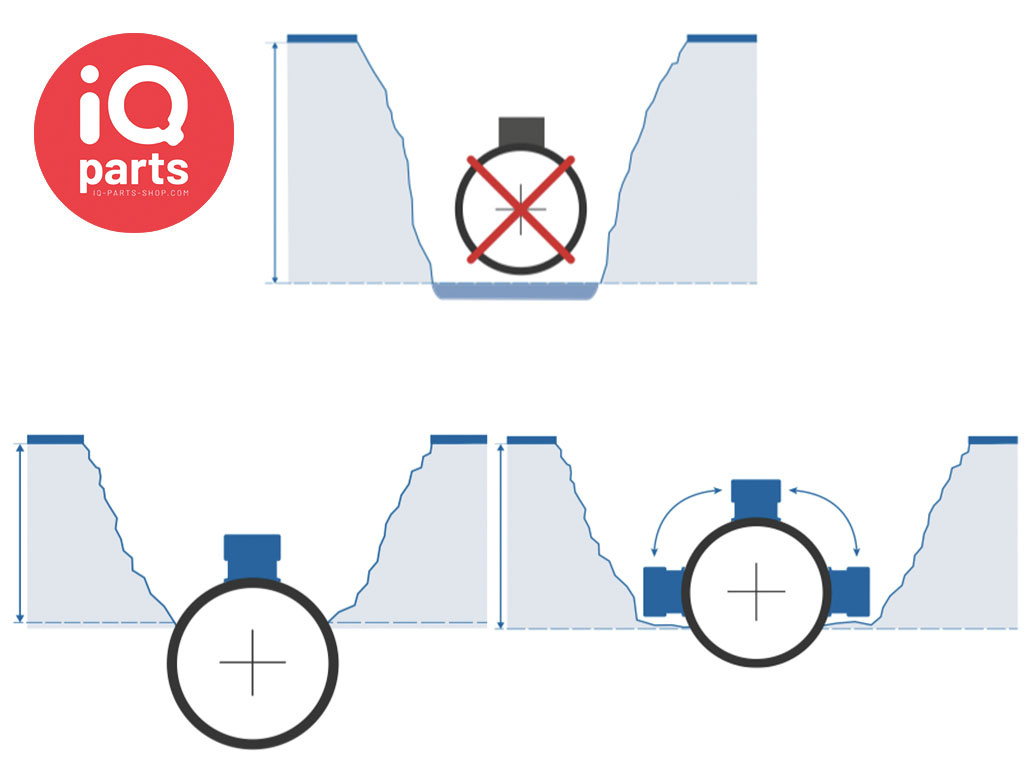

Connecting elements offer the same solution as pipe branches, e.g. when side pipes from new industrial installations, street drains, residential buildings, etc. need to be connected to the existing pipe network. The result of the two methods is similar, but there are obvious differences in the installation methods. For example, with the Storm-T you do not have to dig out the entire pipe, but only expose the part where the connection must be made.
Here are some of the main benefits:
- Lower material costs – the larger the pipes, the greater the savings
- No heavy lifting equipment required
- More safety on the construction site
- Install at any angle along the top half of the main pipe
- Access is only required to the connection point, significantly reducing the amount of soil that needs to be excavated
- Additional flexibility ensures the most effective positioning for drainage
- Semi-universal for main tube and side tube
- Small and light, easy to store and transport
- Can be used anywhere where a core drill hole can be made
The Storm-T is available in 3 sizes:
- Main pipe DN300 – Side pipe DN150
- Main pipe DN 375-450 – Side pipe DN150
- Main pipe DN 500-600 – Side pipe DN150
|
Main Tube |
DN300 |
DN375 – DN450 |
DN500 – DN600 |
|
Wall thickness Tube |
5 mm – 30,5 mm |
5 mm –45 mm |
10 mm – 60 mm |
|
Max. OD Main tube |
355 mm |
540 mm |
720 mm |
|
Borehole |
177 mm (+1/-0,5mm) |
177 mm (+1/-0,5mm) |
177 mm (+1/-0,5mm) |
|
Connection pipe size |
DN150 |
DN150 |
DN150 |
Fernco previously sold these products under the name Flexseal.
Product code:
ST150-300 - ST150-375-4500 - ST150-500-600
