NORMA SAE Style Quick Connector 3/4" | 3/4" Hose Barb | 90º

€15,43 Incl. tax
€12,75 Excl. tax
* Excl. tax | Excl. Shipping costs
Now 25 in stock
Delivery time: Delivery in 1 to 2 days
  • Buy 10 for €11,48 each and save 10%
  • Buy 25 for €10,20 each and save 20%
  • Buy 50 for €8,93 each and save 30%
Article number: NOR-7888044019
SKU: 7888044019 / 1788 8004 019
  • 2 year warranty
  • Delivery time: Delivery in 1 to 2 days
Information

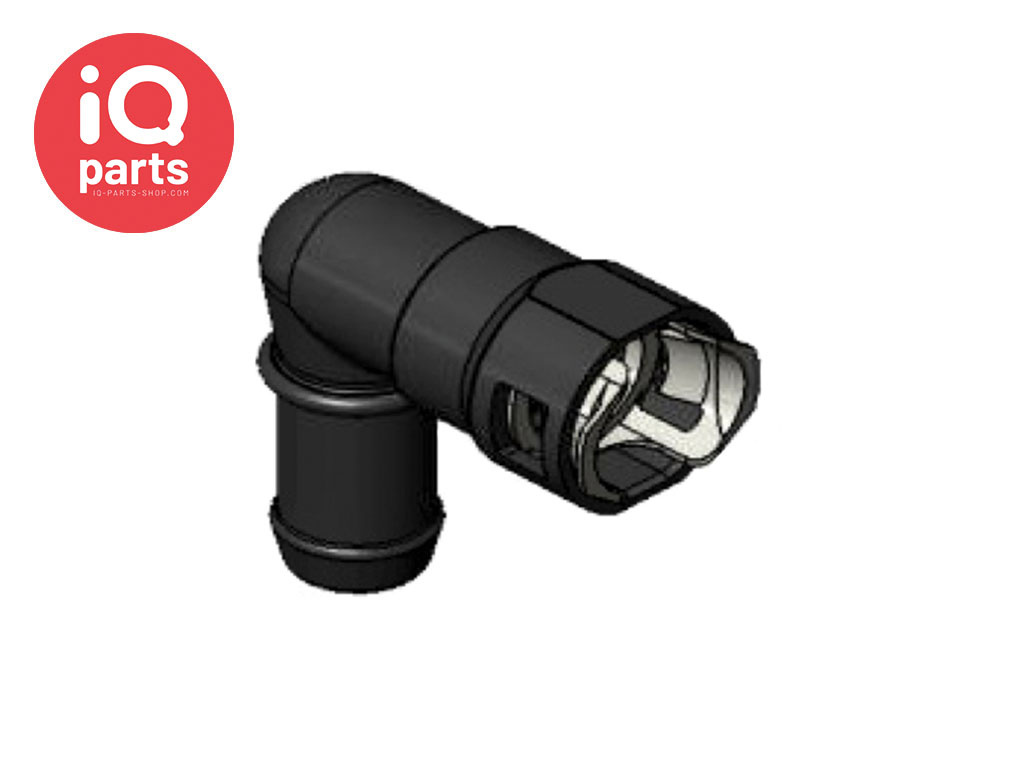

NORMA SAE Style Quick Connector 3/4" | 3/4" Hose Barb | 90º (No release tabs)


Specialized plastic quick connectors developed for coolant applications. Test parameters are significantly higher than operation parameters. Special applications possible, contact us!

Media:
For glycol and automotive coolant applications

Operating temperature:
–40°C to 135°C, short term higher

Pressures:
0 to 2 bar positive pressure, partially pulsating (sinusoidal)

Vibrations:
Usually engine vibrations 7–200 Hz, 0.2–20 g

Features:
  • Available in three standard profile types (90º, 135° and 180º)
  • Designed for SAE J2044 standard spigots
  • Internal retainer mechanism for tight-locking seal
  • Available with hose barb stem for use with aftermarket hoses & clamps
  • Outside spigot diameters: 16mm & 19mm (1/4" – 3/4" available)

Material:
  • Housing: PA66-GF30
  • Retainer and spacer: PA612
  • O-ring: EPDM

SEA Style series:

Technical drawings:

Product code:
7888044019 - 07888044019 - 788 8044 019 - 0788 8044 019 - 7887044019 - 07887044019 - 788 7044 019 - 0788 7044 019 - 7886044019 - 07886044019 - 788 6044 019 - 0788 6044 019
17888004019 - 1788 8004 019 - 17887004019 - 1788 7004 019 - 17886004019 - 1788 6004 019

Specifications
Medium: Coolant
Operating Pressure: 0–2 bar excess pressure
Temperature range: –40°C to +135°C, Short time up to +150°C (approx. 30 min.)
Material: Polyamide Fiberglass (PA66/GF30, PA612)
Size: 3/4"
Connection: 90º
Seal: EPDM
Hose connection: 3/4"
Weight: --
NORMA NORMA SAE Style Quick Connector 3/4" | 3/4" Hose Barb | 90º
