RTC Safety Swing Couplings BSP Female Thread SC Series DL DN08 (formerly Oetiker)
- Buy 5 for €38,66 each and save 10%
- Buy 10 for €36,51 each and save 15%
- Buy 15 for €34,36 each and save 20%
| Article number: | OTK-20500060 |
| SKU: | 20500060 |
- 2 year warranty
- Delivery time: 2 - 3 days after order date

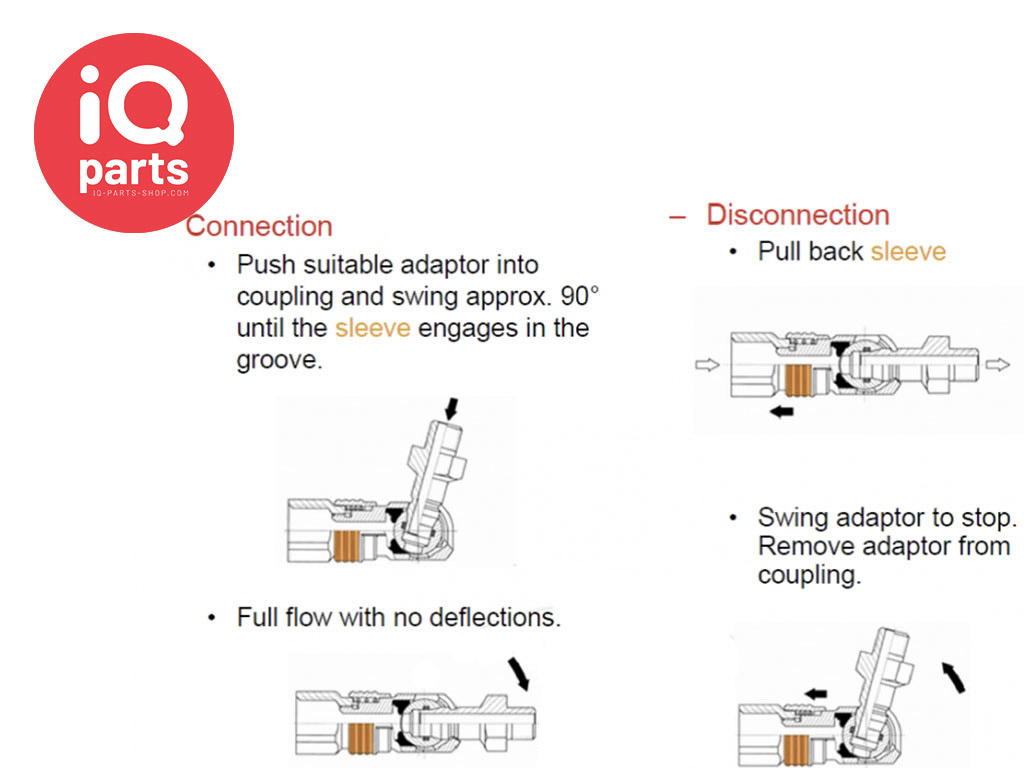

RTC (formerly Oetiker) Safety Swing Couplings BSP Female Thread SC Series DL DN08, always connect and disconnect by kinking without danger
RTC Swing Couplings SC are available in nominal sizes DN6 to DN11 and in different models. They are compatible with most popular plug systems. The many different types and models and a wide choice of seals and lubricants means that RTC Couplings are suitable for numerous applications throughout industry.
Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA
Features:- Weight-saving aluminum version

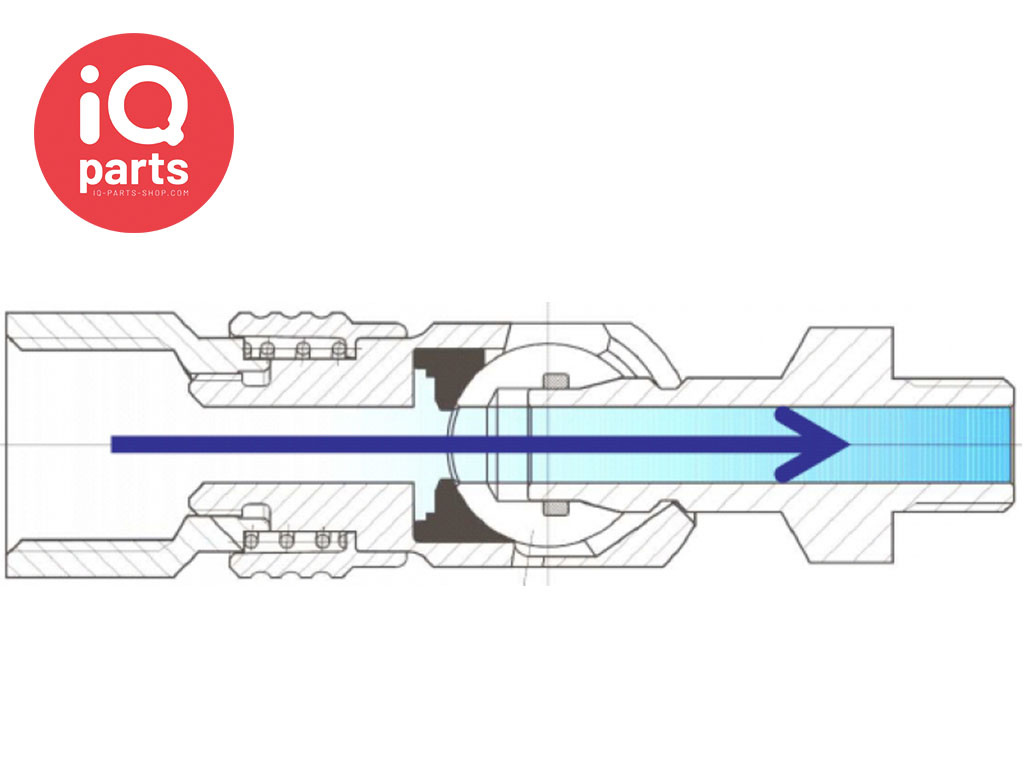

- Full flow, no restrictions in the compressed air path
- Optimum flow rate: More air and power on the tool
- Safe disconnection in accordance with EN983 and ARBO
- Ergonomic design: Easy to connect under pressure
- Plug nipples permanently burr-free due to the use of hardened material
- No leakage due to 3-fold sealing
- Unwanted disconnection not possible
- Economical to purchase and use
- Compact dimensions
- NITTO profile, interchangeable with other brands
- Also suitable for liquids, even with a somewhat higher viscosity
- Easy to clean due to the free passage
Specifications
- DN 08 - NITTO profile
- Temperature range: -20 ° to + 100 ° C with NBR seals
- With Viton seals up to 200 ° C (option)
- Operating pressure: 0-25 bar Connection and disconnection up to 15 bar
- Suitable for vacuum up to 0.1 bar
- Coupling housing: Aluminum
- Roller: Hardened Steel
- Locking ring: Zinc, nickel plated, coated.
- Threaded connection piece: Aluminum
- Hose tail connection piece: Aluminum
- Weight with 10 mm hose tail: 75 grams
- Option: Swivel connection for PU hose 6.5x10 and 8x12
- Option: Plastic protective cap for scratch-sensitive applications
- Option: NPT thread
Applications:
- Compressed air
- Gasses
- Liquids
Product code:
20500060-A - 20500061-A - 20500062-A
| Orifice: | DN 08 |
| Material: | Aluminium |
| Sealing: | NBR |
| Air Pressure: | Max. 25 Bar |
