RTC Safety Swing Couplings BSP Female Thread SC Series K DN06
- Buy 5 for €33,91 each and save 10%
- Buy 10 for €32,03 each and save 15%
- Buy 15 for €30,14 each and save 20%
| Article number: | OTK-20500156 |
| SKU: | 20500156 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
- Customer service 09:00 - 17:00

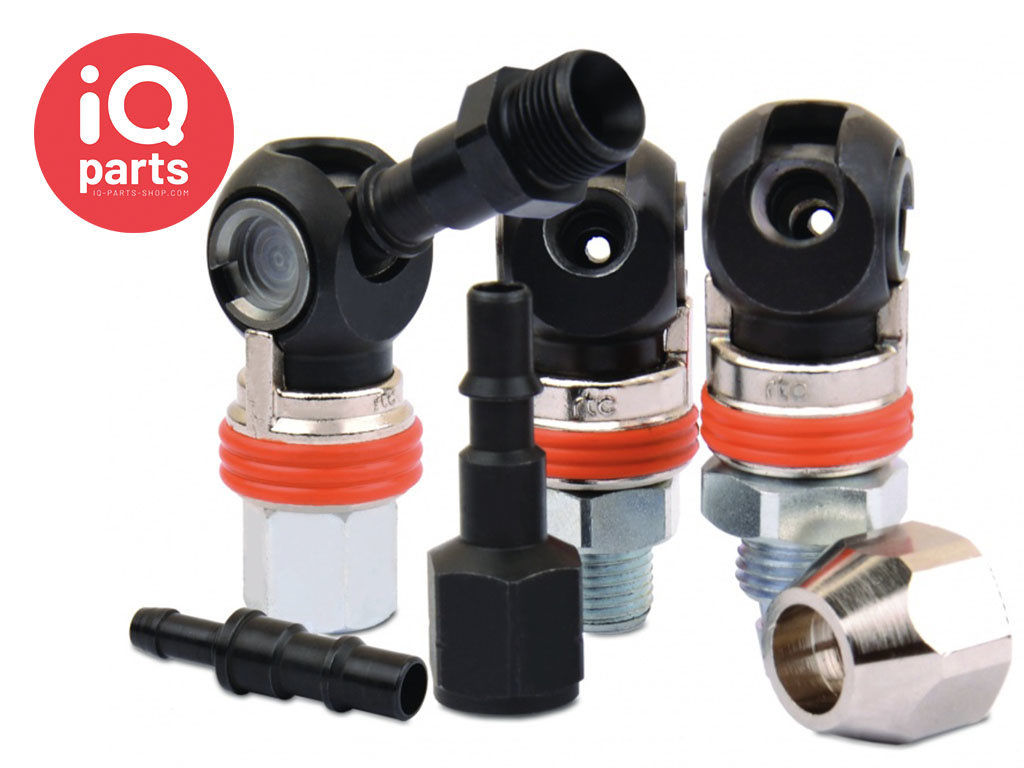

RTC Safety Swing Couplings BSP Female Thread SC Series K DN06, always connect and disconnect by kinking without danger

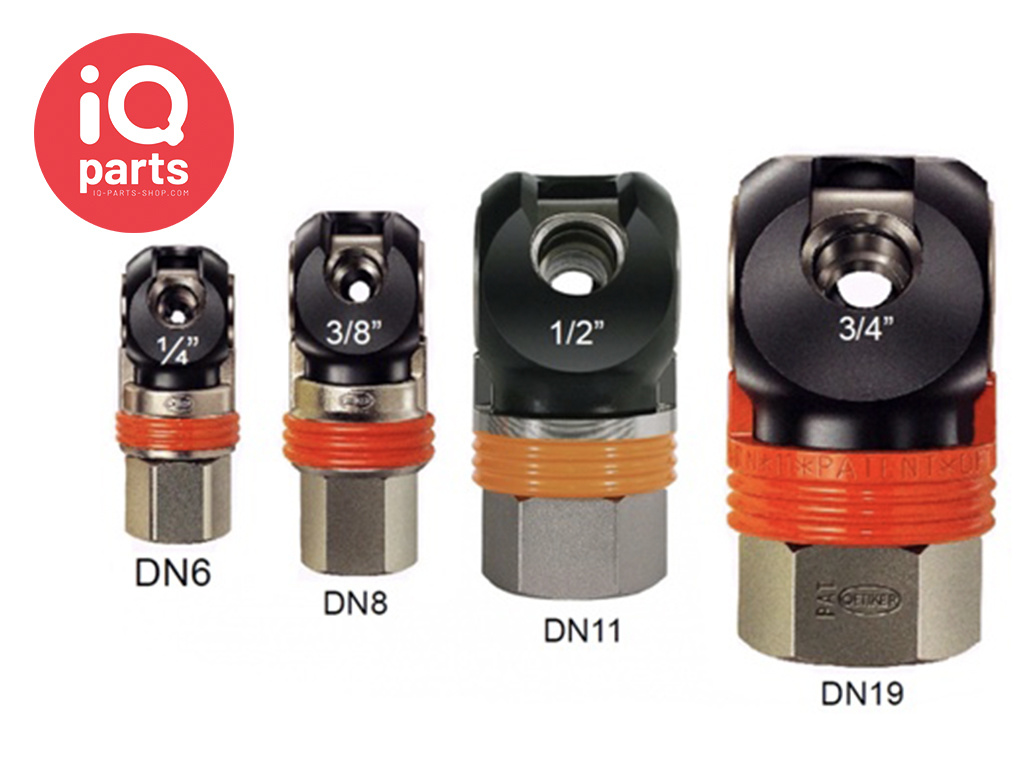

RTC Swing Couplings SC are available in nominal sizes DN6 to DN11 and in different models. They are compatible with most popular plug systems. The many different types and models and a wide choice of seals and lubricants means that RTC Couplings are suitable for numerous applications throughout industry.
Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA
Features:
- Safety according to ISO 4414, EN 983
- Always automatically depressurized during coupling and afkoppelproces
- Full flow, hardly any pressure loss
- Simple operation without physical effort
- Compact design, few parts
- Eco-design
- CE approved
Specifications
- DN 06 - ISO C profile
- Temperature range: -20 ° to + 100 ° C with NBR seals
- With Viton seals up to 200 ° C (option)
- Operating pressure: 0-25 bar Connection and disconnection up to 15 bar
- Suitable for vacuum up to 0.1 bar
- Coupling housing: Steel
- Connection piece thread: Steel
- Connection piece hose tail: Aluminum
- Weight with 8 mm hose tail: 76 grams
- Plug-in nipples: Hardened steel
- Option: Swivel connection for PU hose 6.5x10 and 8x12
- Option: Plastic protective cap for scratch-sensitive applications
- Option: NPT thread
Applications:
- Compressed air
- Gasses
- Cold water
- Liquids
Product code:
20500156 - 20500157 - 20500158
| Orifice: | DN 06 |
| Material: | Steel |
| Sealing: | NBR |
| Air Pressure: | Max. 25 Bar |
