RTC Safety Swing Couplings Hose stem SC Series M DN08 (formerly Oetiker)
- Buy 5 for €51,12 each and save 10%
- Buy 10 for €48,28 each and save 15%
- Buy 15 for €45,44 each and save 20%
| Article number: | OTK-20500741 |
| SKU: | 20500741 |
- 2 year warranty
- Delivery time: 2 - 3 days after order date

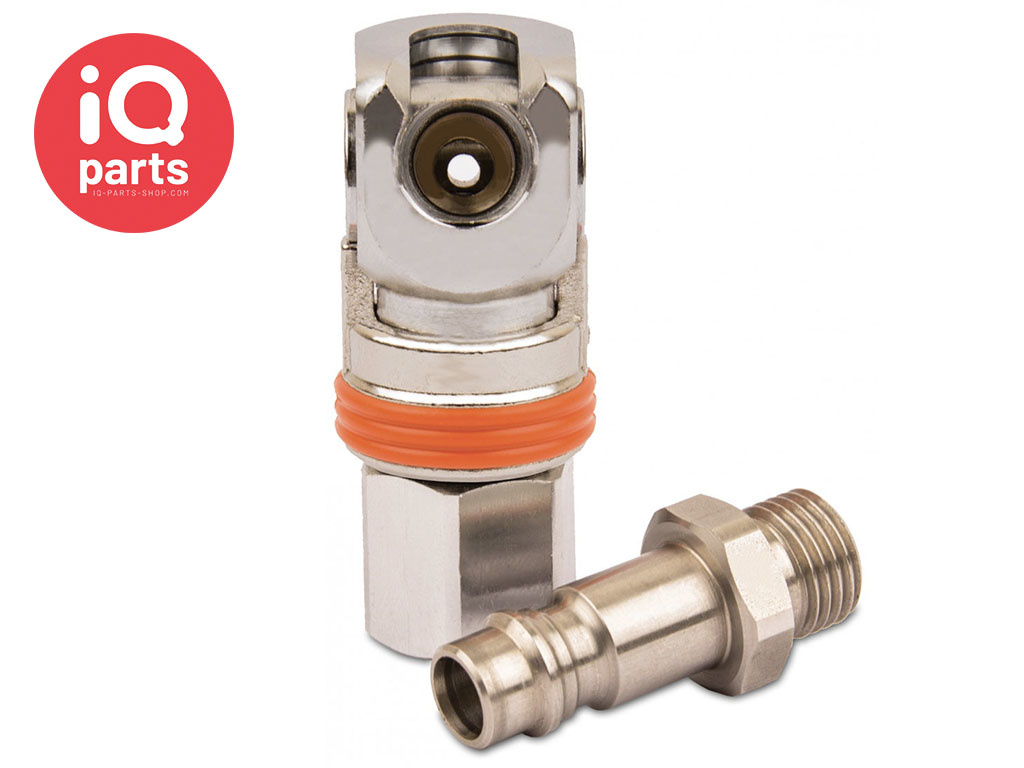

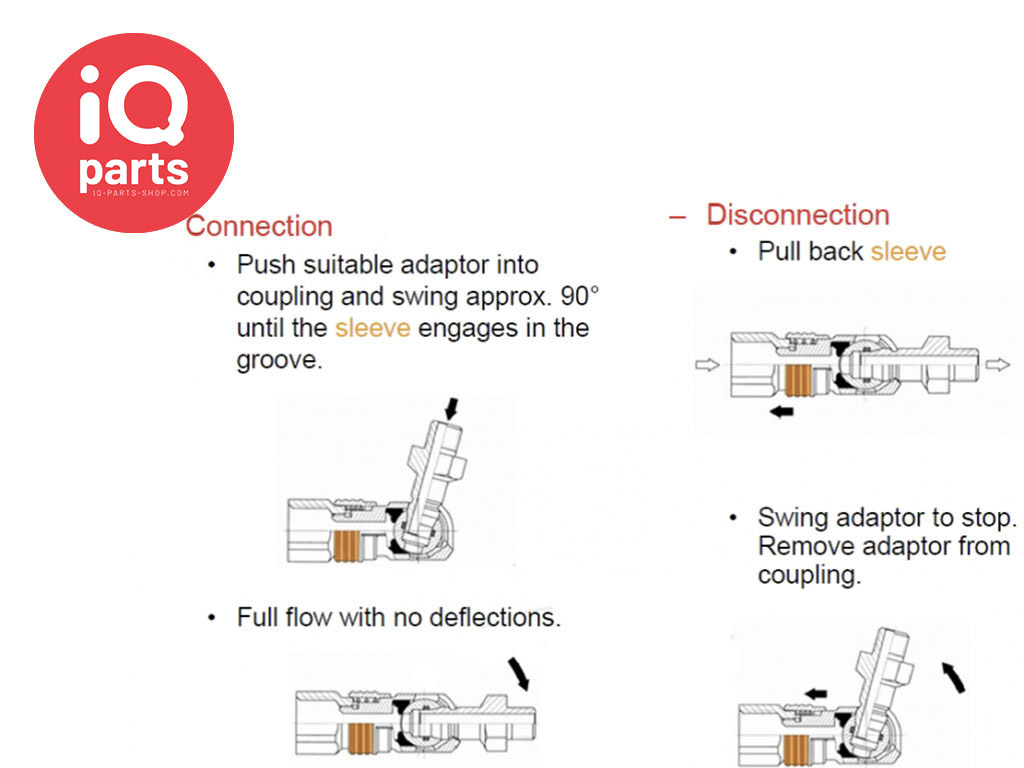

RTC (formerly Oetiker) Safety Swing Couplings Hose stem SC Series M DN08, always connect and disconnect by kinking without danger
RTC Swing Couplings SC are available in nominal sizes DN6 to DN11 and in different models. They are compatible with most popular plug systems. The many different types and models and a wide choice of seals and lubricants means that RTC Couplings are suitable for numerous applications throughout industry. This coupling is particularly suitable for breathing air and fire brigade.
Durability, reliability, simple and safe handling are features of all RTC Swing Couplings. RTC Swing Couplings fulfil all the requirements of current quality standards and have also been awarded a type examination certificate from Swiss Accident Insurance Institute SUVA

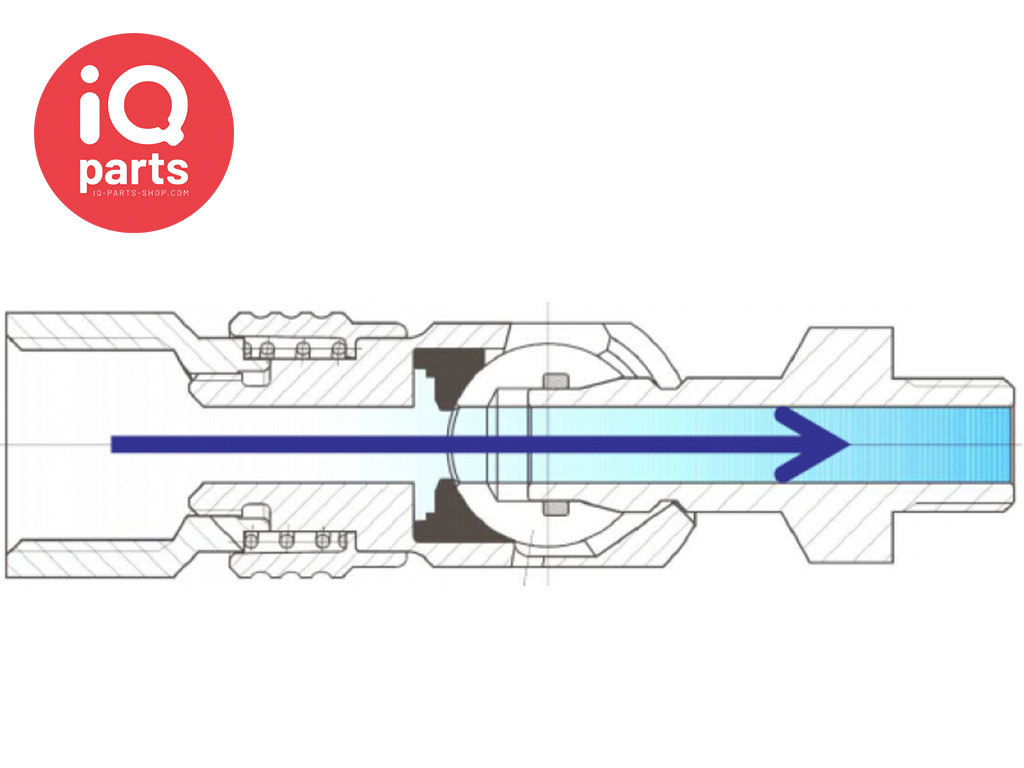

Features:- Full flow, no restrictions in the compressed air path
- Optimum flow rate: More air and power on the tool
- Safe disconnection in accordance with EN983 and ARBO
- Ergonomic design: Easy to connect under pressure
- No leakage due to 3-fold sealing
- BBG Approval
- Unwanted disconnection not possible
- Economical to purchase and use
- Compact dimensions
- EN 139 and EN 270 Hose stem profile
- Long profile, from compressor to belt
- Easy to clean due to the free passage
Specifications
- DN 08 - Breathing Air profile
- Temperature range: -15 ° to + 100 ° C with NBR seals
- Operating pressure: 0-25 bar Connection and disconnection up to 15 bar
- Medium: Air
- Coupling housing: Chrome-plated Brass
- Roller: Brass, chrome-plated
- Locking ring: Zinc, nickel plated
- Connection piece Thread: Brass, chrome plated.
- Plug nipples: Brass chrome plated
- Option: NPT thread
Applications:
- Breathing air
- Fire brigade
Product code:
20500741 - 20500671 - 20500698 - 20500742
| Orifice: | DN 08 |
| Material: | Chrome-plated Brass |
| Sealing: | NBR |
| Air Pressure: | Max. 25 Bar |
