SFS-Performance Silicone straight coupler
- Buy 2 for €2,53 each and save 15%
- Buy 3 for €2,38 each and save 20%
- Buy 4 for €2,24 each and save 25%
| Article number: | SFS-SCH019-BL |
| SKU: | SFS-SCH019-BL |
- 2 year warranty
- Delivery time: 4 weeks
- Customer service 09:00 - 17:00
SFS-Performance Silicone straight coupler
SFS Silicone hoses are available in the following colors;
The standard color is blue (always available on stock), Red and Black (limited quantity on stock).
The colors: Green, Yellow, Orange and Purple are available on request and have 20% surcharge on the standard price.
Note: not oil and gasoline resistant. Please contact us for oil and gasoline resistant solutions.
CONSTRUCTION: 3 or 4 plies of knitted polyester fabric impregnated with silicone.
Additional plies of polyester and silicone can be added to any of our hoses for increased pressure requirements.
TEMPERATURE RANGE: -50°C to 180°C

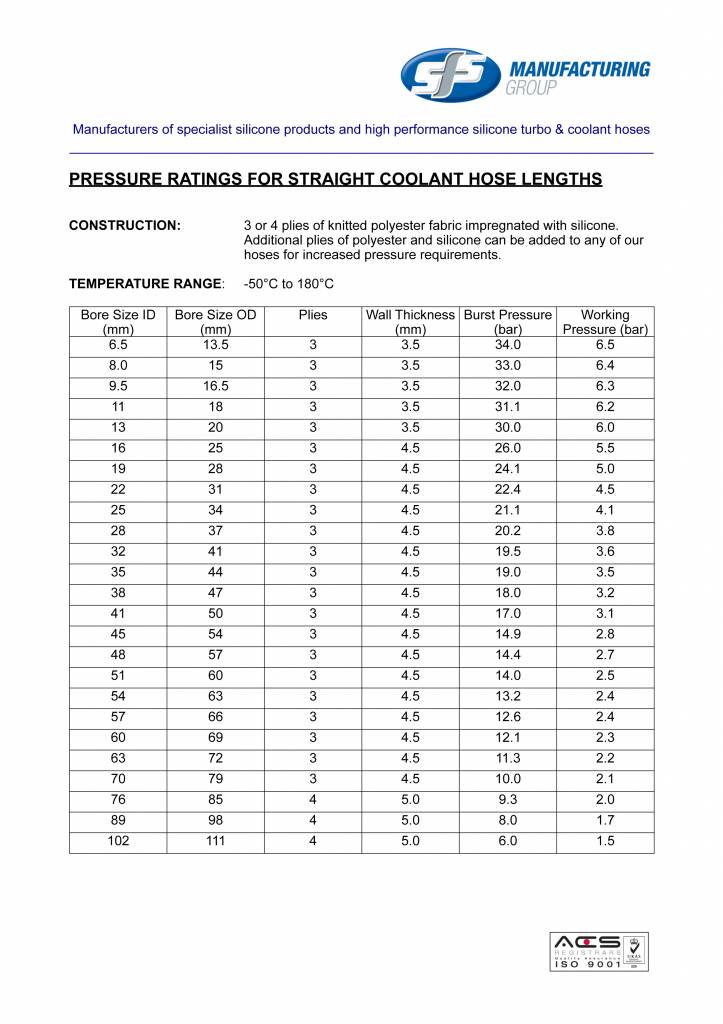

PRESSURE RATINGS FOR STRAIGHT COOLANT HOSE LENGTHS
|
Bore Size ID (mm) |
Bore Size OD (mm) |
Plies |
Wall Thickness (mm) |
Burst Pressure (bar) |
Working Pressure (bar) |
|
6.5 |
13.5 |
3 |
3.5 |
34.0 |
6.5 |
|
8.0 |
15 |
3 |
3.5 |
33.0 |
6.4 |
|
9.5 |
16.5 |
3 |
3.5 |
32.0 |
6.3 |
|
11 |
18 |
3 |
3.5 |
31.1 |
6.2 |
|
13 |
20 |
3 |
3.5 |
30.0 |
6.0 |
|
16 |
25 |
3 |
4.5 |
26.0 |
5.5 |
|
19 |
28 |
3 |
4.5 |
24.1 |
5.0 |
|
22 |
31 |
3 |
4.5 |
22.4 |
4.5 |
|
25 |
34 |
3 |
4.5 |
21.1 |
4.1 |
|
28 |
37 |
3 |
4.5 |
20.2 |
3.8 |
|
32 |
41 |
3 |
4.5 |
19.5 |
3.6 |
|
35 |
44 |
3 |
4.5 |
19.0 |
3.5 |
|
38 |
47 |
3 |
4.5 |
18.0 |
3.2 |
|
41 |
50 |
3 |
4.5 |
17.0 |
3.1 |
|
45 |
54 |
3 |
4.5 |
14.9 |
2.8 |
|
48 |
57 |
3 |
4.5 |
14.4 |
2.7 |
|
51 |
60 |
3 |
4.5 |
14.0 |
2.5 |
|
54 |
63 |
3 |
4.5 |
13.2 |
2.4 |
|
57 |
66 |
3 |
4.5 |
12.6 |
2.4 |
|
60 |
69 |
3 |
4.5 |
12.1 |
2.3 |
|
63 |
72 |
3 |
4.5 |
11.3 |
2.2 |
|
70 |
79 |
3 |
4.5 |
10.0 |
2.1 |
|
76 |
85 |
4 |
5.0 |
9.3 |
2.0 |
|
89 |
98 |
4 |
5.0 |
8.0 |
1.7 |
|
102 |
111 |
4 |
5.0 |
6.0 |
1.5 |
| Material: | Silicone with polyester reinforcement |
| Temperature range: | -50 °C tot +180°C |
| Max. Working Pressure: | 1,5 - 6,5 Bar depending on the diameter |
