CPC - SMF0212 | Coupling body | Polypropylene | Hose barb 3,2 mm (1/8")
Brand:
CPC
| Article number: | CPC-SMF0212 |
| SKU: | SMF0212 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information

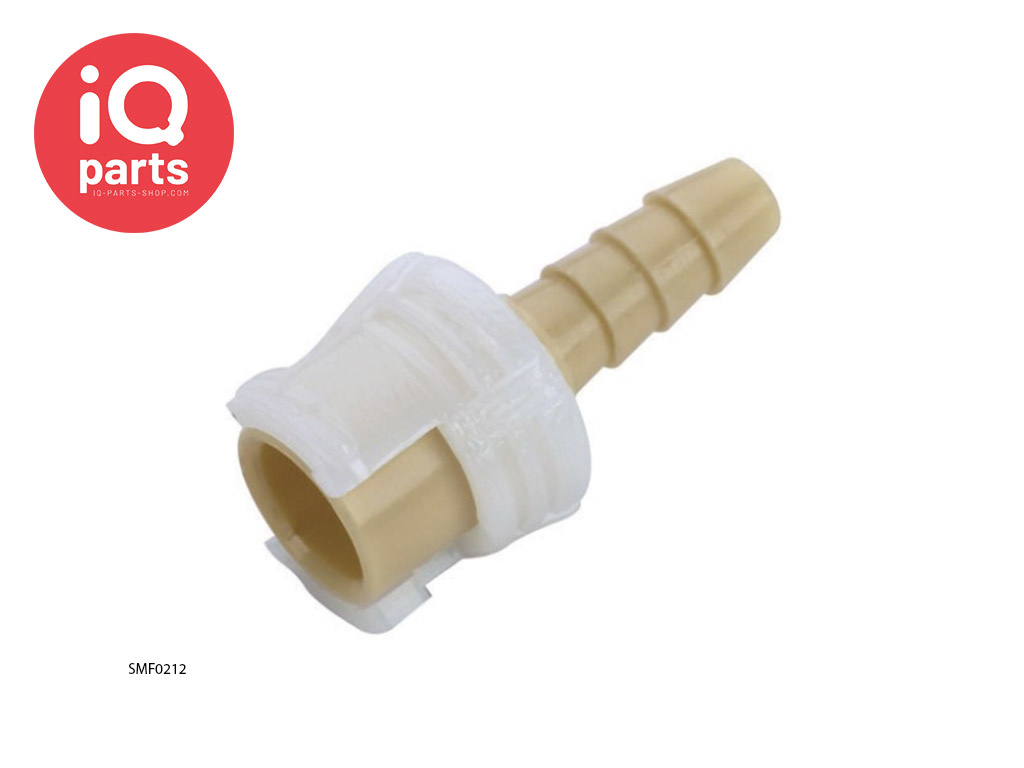

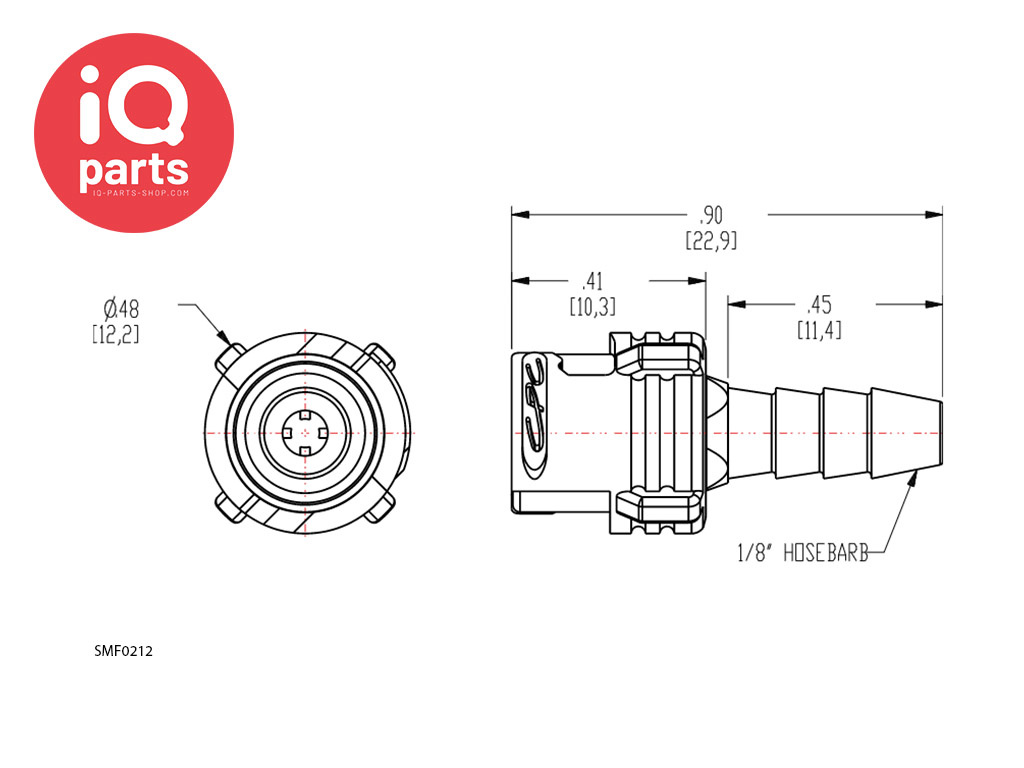

CPC - SMF0212 | Coupling body | Polypropylene | Hose barb 3,2 mm (1/8")
An in-line coupling of CPC from the SMC series with a 3,2 mm hose barb. This quick coupling (female) ensures a leak-free seal and is made of POLYPROPYLENE and has a Acetal Locking Sleeve. This coupling is only available without a valve (SMF0212).
Properties of the coupling from the SMC series:
- The smallest couplings from CPC
- Fast and secure twist-to-connect coupling
- Freely rotation when connected
- Available in various materials
- Prevents kinking of the hoses
- Cheap, safe and easy to expand
Applications:
- Inkjet printers
- Blood Pressure Cuffs
- cool suits
- gas chromatographs
- Photo developers
- particle counters
General information about the SMC series:
These twist-to-connect couplings provide a reliable and safer alternative to luer-type connections. They also allow the hoses to rotate freely when connected. This important feature prevents both kinked hoses and accidental disconnection during use.The SMC series is also available with optional RFID (Radio Frequency Identification) capability and in polycarbonate. For more technical information, see the PDF.
- Available in various materials: ABS, Acetal, Chrome-plated brass, Polypropylene
- Available in various sizes: from 1.6mm to 3.2mm and 5.0mm ID (1/16” to 1/8” ID)
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with hose barb, threaded connection (1\8 NPT) or Panel Mount
- O-rings available in various materials (Buna-N for Acetal and ABS, EPDM for Polypropylene)
- Vacuum up to 6.9 bar (100 PSI)
- Temperature range: -40ºC to 82ºC (Acetal, Chrome-plated brass), 0ºC to 82ºC (Polypropylene), -40ºC to 71ºC (ABS)
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Air / Chemicals |
| Operating Pressure: | 6,9 bar Vacuum |
| Temperature range: | 0° C tot +82° C |
| Material: | Polypropylene |
| Size: | -- |
| Connection: | In-line coupling |
| Seal: | EPDM |
| Hose connection: | 3,2 mm (1/8") Inner diameter |
| Weight: | -- |
