ERIKS - Spiralex Bridge clamp - Hose clamp with Bridge W2
Brand:
ERIKS
| Article number: | ERK-11192427 |
| EAN: | 4049645026279 |
| SKU: | ERK-11192427 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information
ERIKS - Slangklem Spiralex / Slangklem voor slangen met opliggende spiraal
Application
- special worm screw clamp for spiral hoses type Vacufixx HD, Abraflex, AbrATEX and CP (with the exception of hose types Abraflex HD, AbrATEX XD and Abraflex SHD)
- worm screw clamp with an integrated spiral bridge, so that a complete compression on the entire circumference of the hose is guaranteed
- this guarantees a secure and tight connection of the hose to the connector
- easy to assemble
Material
- Band: stainless steel AISI 430
- spiral bridge: stainless steel AISI 304
- screw: stainless steel AISI 430, galvanized
Standard/approvals
DIN 3017

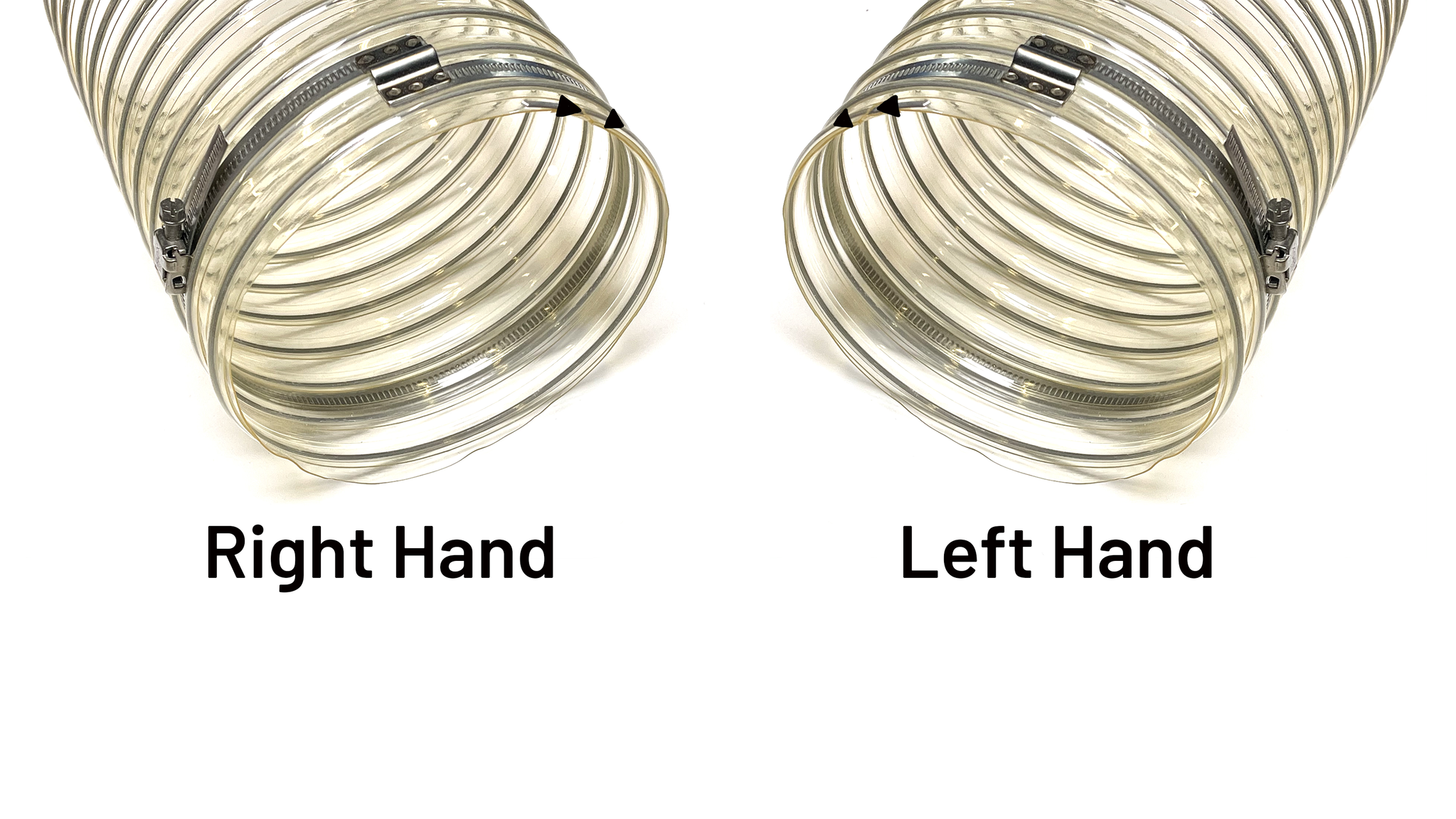

At the top right, choose whether you want a right-handed or left-handed bridge clamp.
Larger dimensions available on request, but also in stainless steel 304 and stainless steel 316.
Manufacturer Number:
212-0017-0000 - 212-0020-0000 - 212-0027-0000 - 212-0035-0000 - 212-0045-0000 - 212-0055-0000 - 212-0065-0000 - 212-0075-0000 - 212-0085-0000 - 212-0095-0000 - 212-0105-0000 - 212-0115-0000 - 212-0125-0000 - 212-0135-0000 - 212-0145-0000 - 212-0155-0000 - 212-0165-0000 - 212-0180-0000 - 212-0195-0000 - 212-0205-0000 - 212-0215-0000 - 212-0245-0000 - 212-0265-0000 - 212-0275-0000 - 212-0295-0000 - 212-0315-0000 - 212-0345-0000 - 212-0375-0000 - 212-0395-0000 - 212-0445-0000 - 212-0495-0000
EAN:
4049645026279 - 4049645026293 - 4049645026347 - 4049645026385 - 4049645026484 - 4049645026583 - 4049645026682 - 4049645026781 - 4049645026873 - 4049645026965 - 4049645027030 - 4049645027115 - 4049645027184 - 4049645027245 - 4049645027313 - 4049645027399 - 4049645027474 - 4049645027542 - 4049645027658 - 4049645027740 - 4049645027801 - 4049645027894 - 4049645027986 - 4049645028020 - 4049645028082 - 4049645028150 - 4049645028228 - 4049645028280 - 4049645028334 - 4049645028419 - 4049645028488
Product code:
11192427 - 11192428 - 11192428 - 11192430 - 11192431 - 11171672 - 11192534 - 11192432 - 11192493 - 11192494 - 11192496 - 11192497 - 11192498 - 11192499 - 11192500 - 11192501 - 11192502 - 11192533 - 10016320 - 10016321 - 10016322 - 10016323 - 10016324 - 10016325 - 10016326 - 10016327 - 10016328 - 11171672 - 11142835 - 11142836 - 11142837
Specifications
| Bolt: | -- |
| Bandwidth: | 9 - 12 mm |
| Tightening torque (Maximum): | 3 Nm (Maximum) |
