STAUFF Stacking Bolt | Metric | Type AF | for Heavy-series

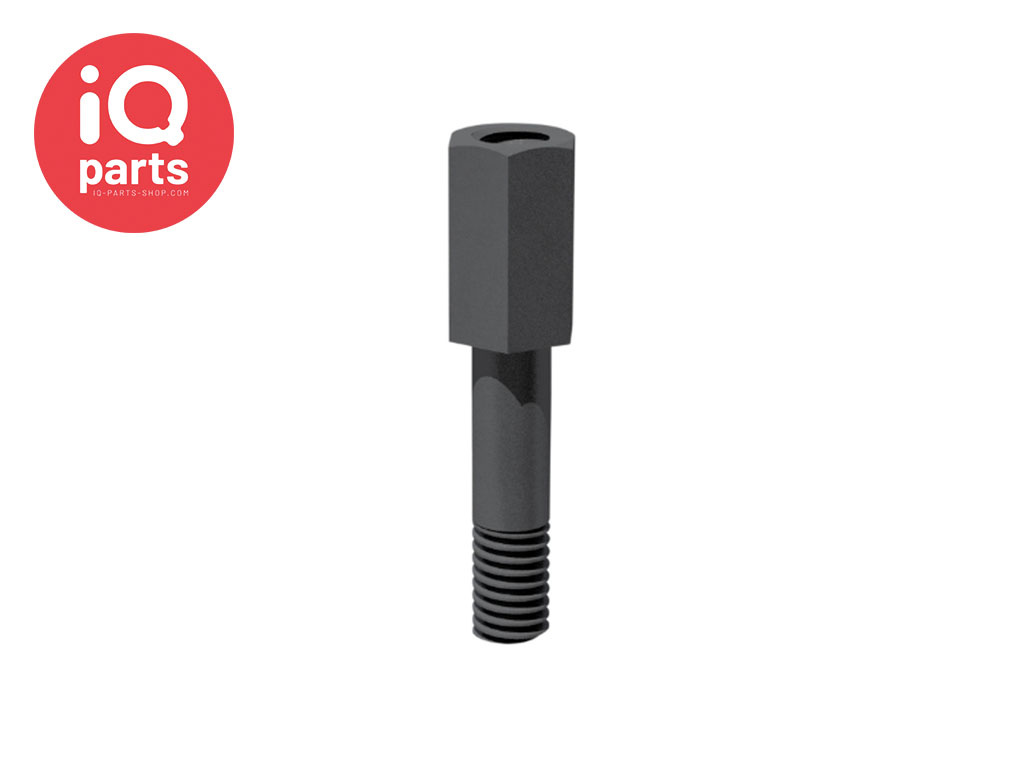

This Stacking Bolt is used in combination with the Safety Locking Plate type SIP. The bolt is available in various lengths and qualities and is used to fix Stauff Block Clamps from the Heavy series. The combination with the safety locking plate SIP ensures a solid and secure mounting of the block clamps.

This Stacking Bolt can be used for the Stauff groups 3S to 10S from the Heavy series!!

Characteristics:

Metric ISO thread (M10, M12, M16, M20, M24 & M30)
Available in W2 (Carbon Steel, Phosphated) qualitie
W1, W3, W4 & W5 on request
UNC thread on request
According DIN 3015

Numbering logic:

For example: AF-3S-M-W3:

AF = Stacking Bolt

3S = Stauff-Group 3S

M = Metric

W2 = material quality W2

Product code:

1120003535 – 1120003536 – 1120003544 – 1120003552 – 1120003537 – 1120003545 – 1120003553 – 1120003538 – 1120003546 – 1120003554 – 1120003539 – 1120003547 – 1120003555 – 1120003540 – 1120003548 – 1120003556 – 1120003541 – 1120003542
AF-1/1A/1D-M-W3 – AF-2-M-W3 - AF-2-M-W4 - AF-2-M-W5 – AF-3-M-W3 - AF-3-M-W4 - AF-3-M-W5 - AF-4-M-W3 - AF-4-M-W4 - AF-4-M-W5 - AF-5-M-W3 - AF-5-M-W4 - AF-5-M-W5 - AF-6-M-W3 - AF-6-M-W4 - AF-6-M-W5 - AF-7-M-W3 - AF-8-M-W3
