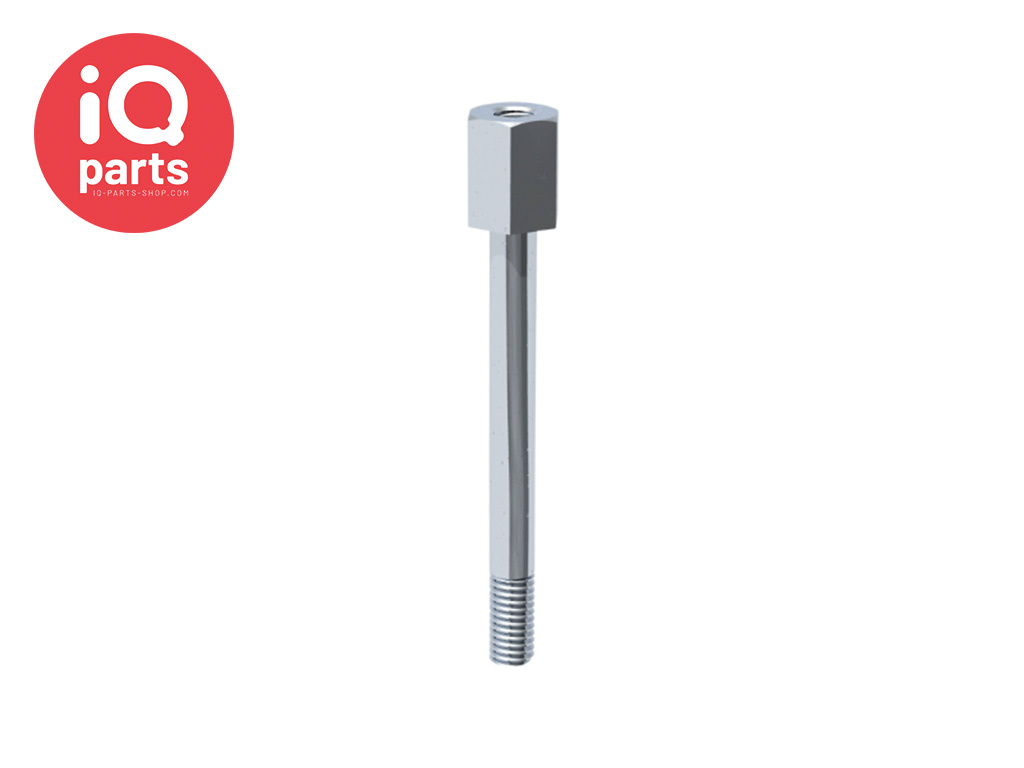

STAUFF Stacking Bolt | Metric | Type AF | for Twin-series
Brand:
STAUFF
| Article number: | STA-1120003584 |
| SKU: | 1120003584 |
- 2 year warranty
- Delivery time: 2 Weeks
Information
STAUFF Stacking Bolt | Metric | Type AF | for Twin-series
This Stacking Bolt is used in combination with the Safety Locking Plate type SI/SIV. The bolt is available in various lengths and qualities and is used to fix Stauff Block Clamps from the Twin series. The combination with the safety locking plate SI/SIV ensures a solid and secure mounting of the block clamps.
This Stacking Bolt can be used for the Stauff groups 1D to 5D from the Twin series!!
The smallest size (1D) can also be used in groups 1 and 1A of the standard series. (CLICK HERE)
Characteristics:
- Metric ISO thread(M6 & M8)
- Available in 3 qualities
- UNC thread on request
- According DIN 3015
Available in 3 qualities:
- W3: galvanized/nickel plated steel
- W4: Stainless steel V2A - 1.4301 / 1.4305 (AISI304 / 303)
- W5: Stainless steel V4A – 1.4401 / 1.4571 (AISI316 / 316Ti)
Numbering logic:
For example: AF-2D-M-W3:
AF = Stacking Bolt
2D = Stauff-Group 2D
M = Metric
W3 = material quality W3
Product code:
1120003584 – 1120003589 – 1120003594 – 1120003585 – 1120003590 – 1120003595 – 1120003586 – 1120003591 – 1120003596 – 1120003587 – 1120003592 – 1120003597 – 1120003535 – 1120003543 – 1120003551
AF-1/1a/1D-M-W3 - AF-1/1a/1D-M-W4 - AF-1/1a/1D-M-W5 – AF-2D-M-W3 - AF-2D-M-W4 - AF-2D-M-W5 - AF-3D-M-W3 - AF-3D-M-W4 - AF-3D-M-W5 - AF-4D-M-W3 - AF-4D-M-W4 - AF-4D-M-W5 - AF-5D-M-W3 - AF-5D-M-W4 - AF-5D-M-W5
€0,55 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€2,25 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€1,60 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€0,40 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€2,10 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€1,19 Excl. tax
*
Excl. tax
| Excl. Shipping costs
€9,85 Excl. tax
*
Excl. tax
| Excl. Shipping costs
