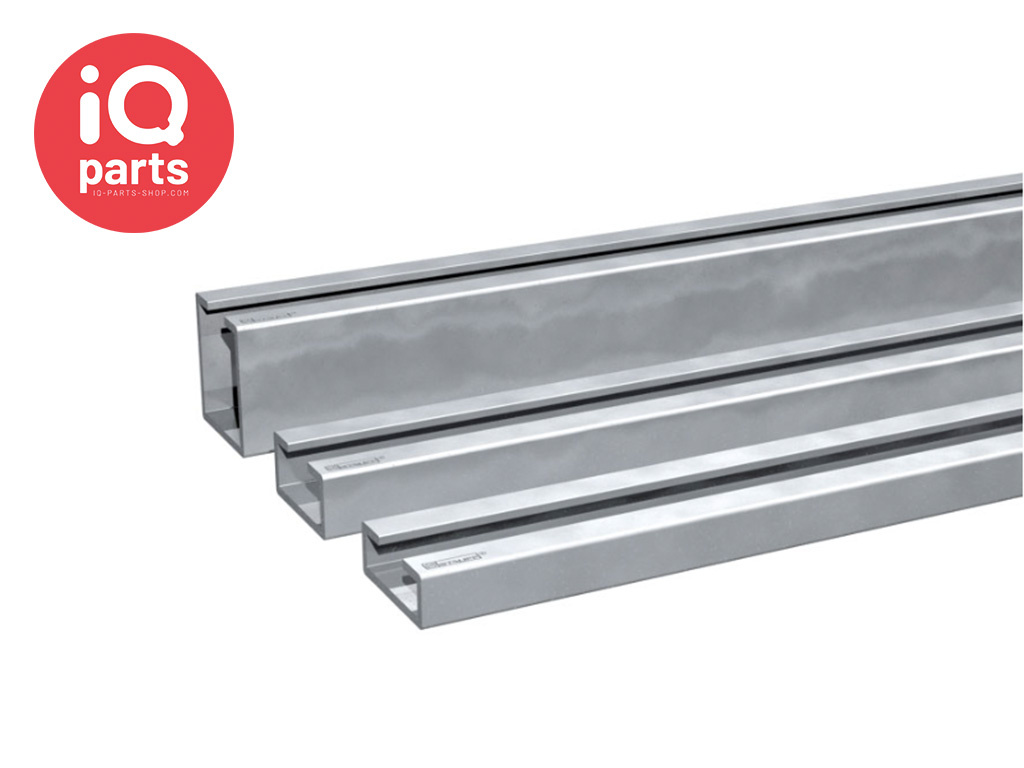

STAUFF Mounting Rail | Standard- and Twin serie | Type TS

This mounting rail is specially designed for mounting the Stauff block clamps with the mounting rail nut Type SM from Stauff.

The rail has 3 different heights. Choosing the right height depends on the type of block clamp from which group you use. Consult the schedule below for this.

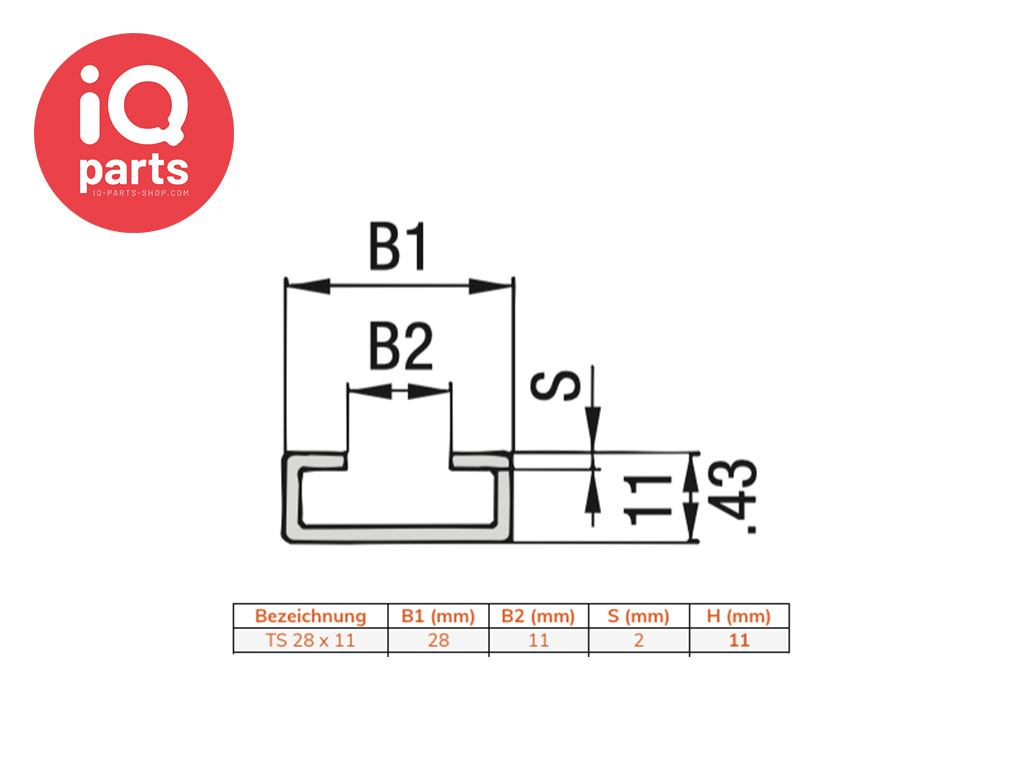

TS-11:

Matches the standard series 1, 1A and 2 group and the Double series with groups 1D and 2D

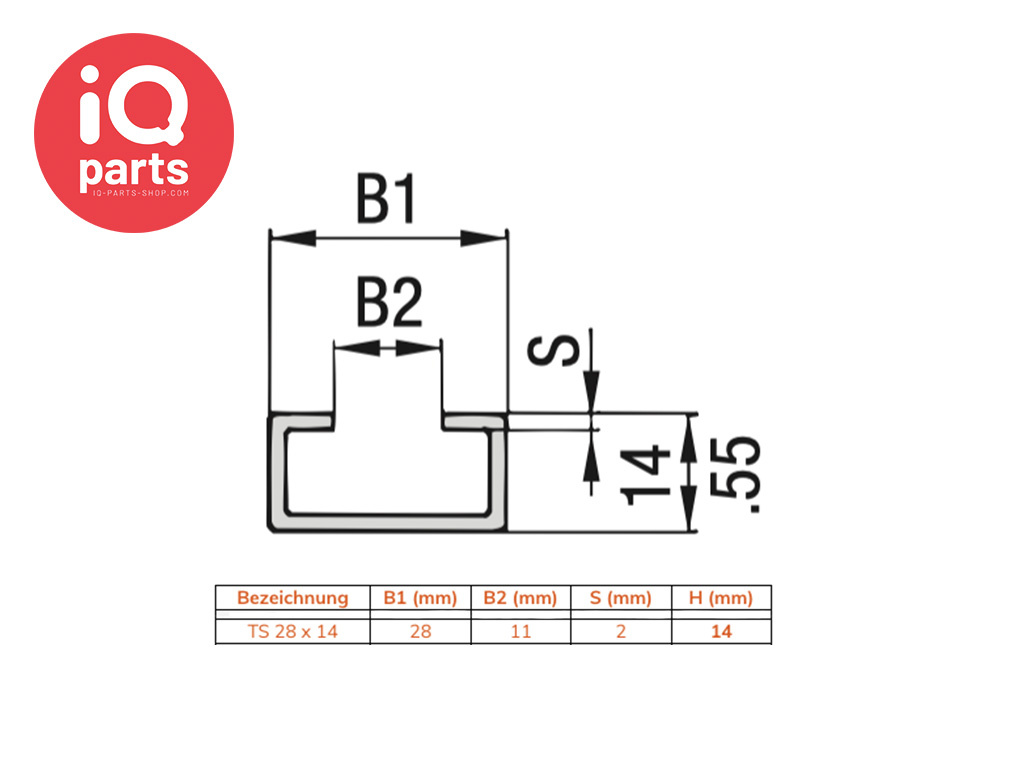

TS-14:

Matches the group of standard series 3, 4 and 5 and of the Double series at group 2D, 3D and 4D

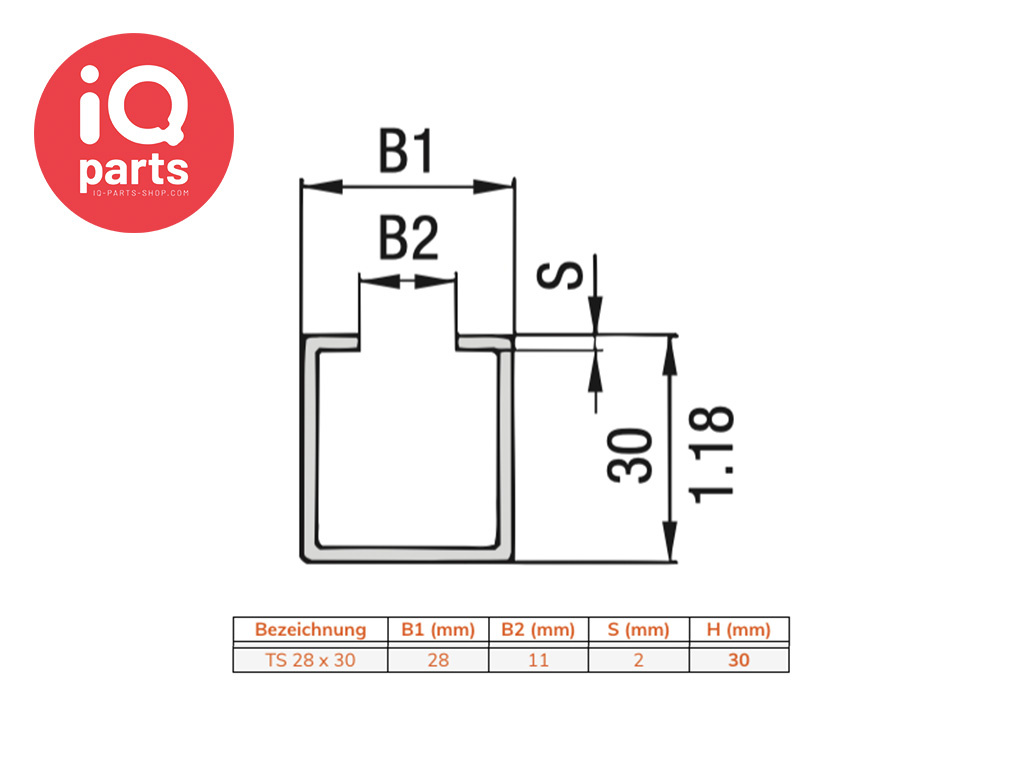

TS-30:

Matches the group of the standard series 6, 7 and 8 and the Double series with groups 4D and 5D

The mounting rails from the TS series comply with the DIN 3015 standard.

Material:

Available in 3 different qualities:

Steel uncoated W1 (S235 JR)
Steel hot-dip galvanised W98
Stainless steel W4 (V2A, 1.4301, stainless steel 304)

Other sizes and qualities on request

Numbering logic:

For example: TS-11-1M-W1:

TS = Mounting Rail

11 = Height of Rail is 11 mm

1M = 1 meter Length of Rail (3.28 ft)

W1 = material quality W1

Product code:

1130004071 - 1130004083 – 1130004075 - 1130004084 – 1130004080 – 1130004085 – 1130004088 – 1130004098 – 1130004093 – 1130004099 – 1130004096 – 1130004100 – 1130004102 – 1130004106 – 1130004103 – 1130004107 – 1130004104 – 1130004108 - TS-11-1M-W1 - TS-11-2M-W1 - TS-11-1M-W98 - TS-11-2M-W98 - TS-11-1M-W4 - TS-11-2M-W4 - TS-14-1M-W1 - TS-14-2M-W1 - TS-14-1M-W98 - TS-14-2M-W98 - TS-14-1M-W4 - TS-14-2M-W4 - TS-30-1M-W1 - TS-30-2M-W1 - TS-30-1M-W98 - TS-30-2M-W98 - TS-30-1M-W4 - TS-30-2M-W4
