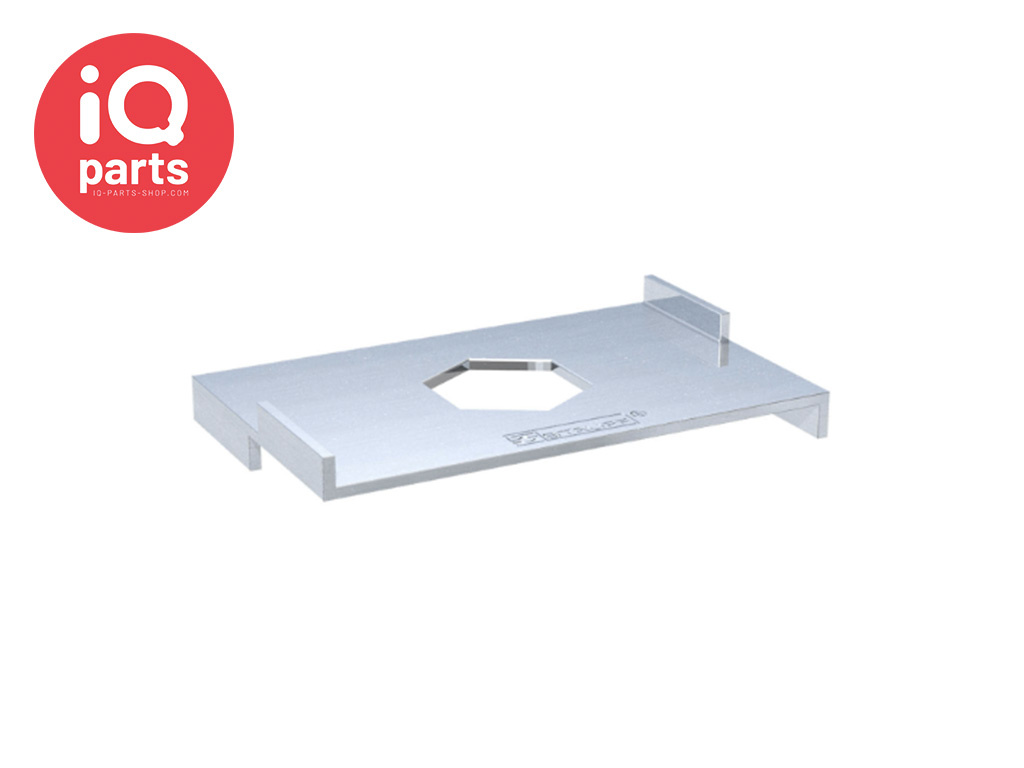

STAUFF Safety Locking Plate | Type SIV | for Twin-series
Brand:
STAUFF
Article number: | STA-1130002540 |
SKU: | 1130002540 |
- 2 year warranty
- Delivery time: 2 Weeks
- Customer service 09:00 - 17:00
Information
STAUFF Safety Locking Plate | Type SIV | for Twin-series for use with Stacking Bolt AF
The Stauff type SIV safety locking plate is intended to secure the hexagon Head Bolt AF used with Stauff block clamps from the Twin series. The plate prevents the hex bolt from vibrating loose and the upper clamp from twisting.
Quality:
W3 (Carbon steel, Zinc/Nickel-plated)
W5 (AISI 316 / 316 Ti) on request
Numbering logic:
For example: SIV-1D-W3:
SIV = Safety Locking Plate Twin
1D = Stauff-Group 1D
W3 = material quality W3 (galvanized/nickel-plated steel)
Product code:
1130002540 – 1130002278
SIV-1D-W3 – SIV-2-3D-W3
