Norma SVSP Quick Release Clamp W4 (AISI304) Width 15 mm model "ZY"



NORMACLAMP® SVSP quick-release clamps feature a secure over-centre lever that can be opened and closed easily using one hand. This means that no special installation tools are required.

The closure for this lightweight range of products features a metric cylinder-head bolt.

The SVS clamp features a bridge, which is ideal for clamping a hose type connection. The SVSP clamp has no bridge. There is a possibility to have a profile welded onto it.



NORMACLAMP® SVS and NORMACLAMP® SVSP clamps are produced with standardised band widths and materials.



The progressive ratio is 1 mm.



Up to a clamping diameter of 500 mm (on request larger sizes possible), the clamps are supplied in rolled-up form. With clamping diameters of 301 mm and up, they are supplied in stretched-out form.



• Equipped with the proven NORMA toggle locks
• Band widths 15, 20, 25, 30 mm available
• Material version W4 (AISI304 // V2A / 1.430)
• Closure with eyebolt (OE) or cylinder screw (ZY)

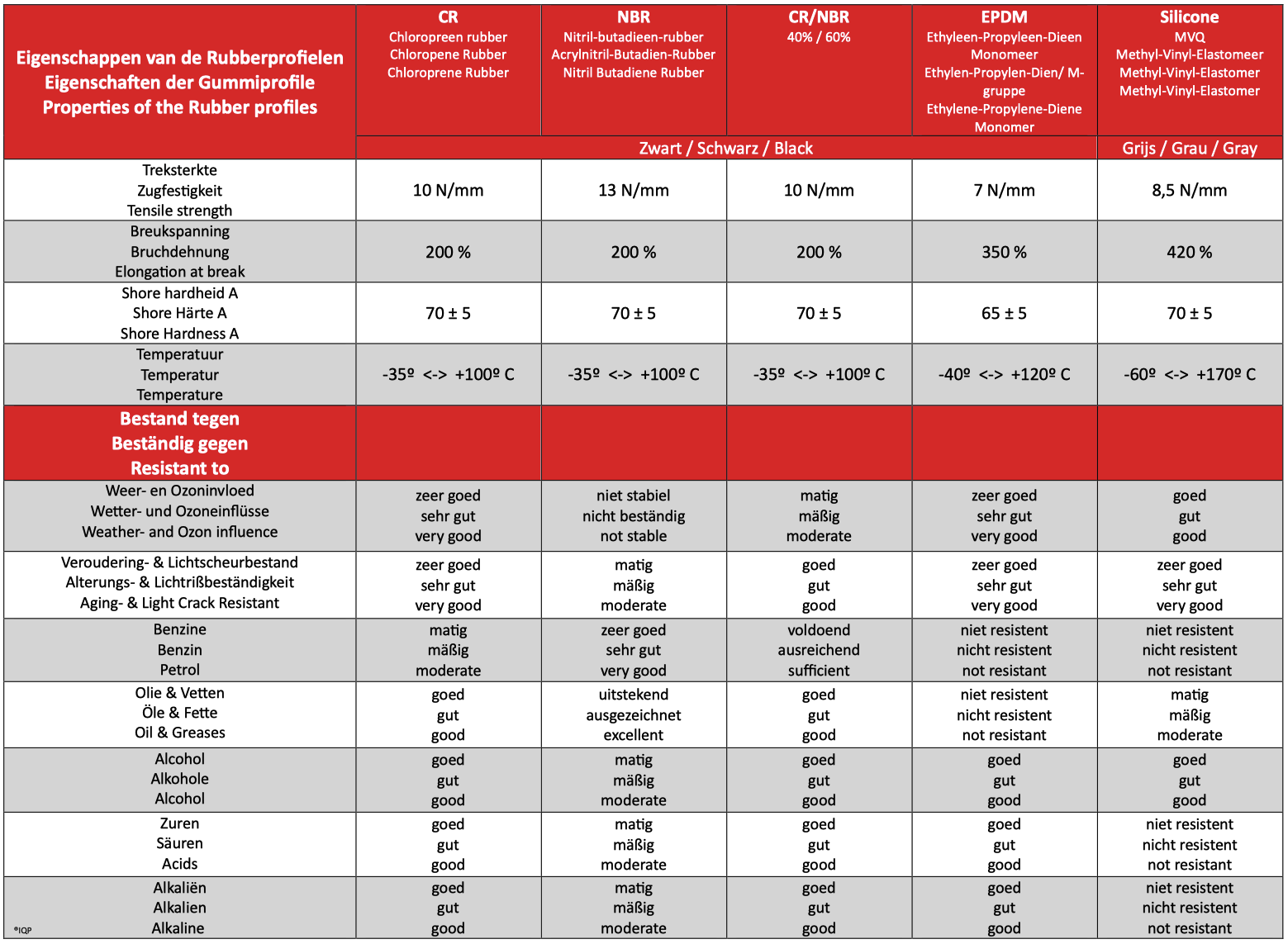

• Equiped with a rubber profile is possible
• The use of special closures is possible
• Enlargement of the clamping range by using screw thread clamps or joint bolt clamps
• Also available in W1 quality (galvanized) minimum order 25 pieces per diameter
• Other diameters or a rubber coating are possible on request!

Please note:
1. The diameter can be changed by +/- 2mm by adjusting the nut!
2. The passage and thread rollers from the closure are made of nickel-plated brass.
3. Also available with bridge (SVS)





• Closure can be opened and closed easily by hand
• No installation tools required

• Machine building
• Chemical industry
• Food and beverage industry
• Railway industry
• Building machines
• Pump and filter



Product code:

05660154090 - 05660204090 - 05660254090 - 05660154100 - 05660204100 - 05660254100 - 05660154110 - 05660204110 - 05660254110 - 05660154120 - 05660204120 - 05660254120 - 05660154130 - 05660204130 - 05660254130 - 05660154140 - 05660204140 - 05660254140 - 05660154150 - 05660204150 - 05660254150 - 05660154160 - 05660204160 - 05660254160 - 05660154170 - 05660204170 - 05660254170 - 05660154180 - 05660204180 - 05660254180 - 05660154190 - 05660204190 - 05660254190 - 05660154200 - 05660204200 - 05660254200 - 05660154210 - 05660204210 - 05660254210 - 05660154220 - 05660204220 - 05660254220 - 05660154230 - 05660204230 - 05660254230 - 05660154240 - 05660204240 - 05660254240 - 05660154250 - 05660204250 - 05660254250 - 05660154260 - 05660204260 - 05660254260 - 05660154270 - 05660204270 - 05660254270 - 05660154280 - 05660204280 - 05660254280 - 05660154290 - 05660204290 - 05660254290 - 05660154300 - 05660204300 - 05660254300 - 05660154310 - 05660204310 - 05660254310 - 05660154320 - 05660204320 - 05660254320 - 05660154330 - 05660204330 - 05660254330 - 05660154340 - 05660204340 - 05660254340 - 05660154350 - 05660204350 - 05660254350 - 05660154360 - 05660204360 - 05660254360 - 05660154370 - 05660204370 - 05660254370 - 05660154380 - 05660204380 - 05660254380 - 05660154390 - 05660204390 - 05660254390 - 05660154400 - 05660204400 - 05660254400 - 05660154410 - 05660204410 - 05660254410 - 05660154420 - 05660204420 - 05660254420 - 05660154430 - 05660204430 - 05660254430 - 05660154440 - 05660204440 - 05660254440 - 05660154450 - 05660204450 - 05660254450 - 05660154460 - 05660204460 - 05660254460 - 05660154470 - 05660204470 - 05660254470 - 05660154480 - 05660204480 - 05660254480 - 05660154490 - 05660204490 - 05660254490 - 05660154500 - 05660204500 - 05660254500

0566 0154 090 - 0566 0204 090 - 0566 0254 090 - 0566 0154 100 - 0566 0204 100 - 0566 0254 100 - 0566 0154 110 - 0566 0204 110 - 0566 0254 110 - 0566 0154 120 - 0566 0204 120 - 0566 0254 120 - 0566 0154 130 - 0566 0204 130 - 0566 0254 130 - 0566 0154 140 - 0566 0204 140 - 0566 0254 140 - 0566 0154 150 - 0566 0204 150 - 0566 0254 150 - 0566 0154 160 - 0566 0204 160 - 0566 0254 160 - 0566 0154 170 - 0566 0204 170 - 0566 0254 170 - 0566 0154 180 - 0566 0204 180 - 0566 0254 180 - 0566 0154 190 - 0566 0204 190 - 0566 0254 190 - 0566 0154 200 - 0566 0204 200 - 0566 0254 200 - 0566 0154 210 - 0566 0204 210 - 0566 0254 210 - 0566 0154 220 - 0566 0204 220 - 0566 0254 220 - 0566 0154 230 - 0566 0204 230 - 0566 0254 230 - 0566 0154 240 - 0566 0204 240 - 0566 0254 240 - 0566 0154 250 - 0566 0204 250 - 0566 0254 250 - 0566 0154 260 - 0566 0204 260 - 0566 0254 260 - 0566 0154 270 - 0566 0204 270 - 0566 0254 270 - 0566 0154 280 - 0566 0204 280 - 0566 0254 280 - 0566 0154 290 - 0566 0204 290 - 0566 0254 290 - 0566 0154 300 - 0566 0204 300 - 0566 0254 300 - 0566 0154 310 - 0566 0204 310 - 0566 0254 310 - 0566 0154 320 - 0566 0204 320 - 0566 0254 320 - 0566 0154 330 - 0566 0204 330 - 0566 0254 330 - 0566 0154 340 - 0566 0204 340 - 0566 0254 340 - 0566 0154 350 - 0566 0204 350 - 0566 0254 350 - 0566 0154 360 - 0566 0204 360 - 0566 0254 360 - 0566 0154 370 - 0566 0204 370 - 0566 0254 370 - 0566 0154 380 - 0566 0204 380 - 0566 0254 380 - 0566 0154 390 - 0566 0204 390 - 0566 0254 390 - 0566 0154 400 - 0566 0204 400 - 0566 0254 400 - 0566 0154 410 - 0566 0204 410 - 0566 0254 410 - 0566 0154 420 - 0566 0204 420 - 0566 0254 420 - 0566 0154 430 - 0566 0204 430 - 0566 0254 430 - 0566 0154 440 - 0566 0204 440 - 0566 0254 440 - 0566 0154 450 - 0566 0204 450 - 0566 0254 450 - 0566 0154 460 - 0566 0204 460 - 0566 0254 460 - 0566 0154 470 - 0566 0204 470 - 0566 0254 470 - 0566 0154 480 - 0566 0204 480 - 0566 0254 480 - 0566 0154 490 - 0566 0204 490 - 0566 0254 490 - 0566 0154 500 - 0566 0204 500 - 0566 0254 500
