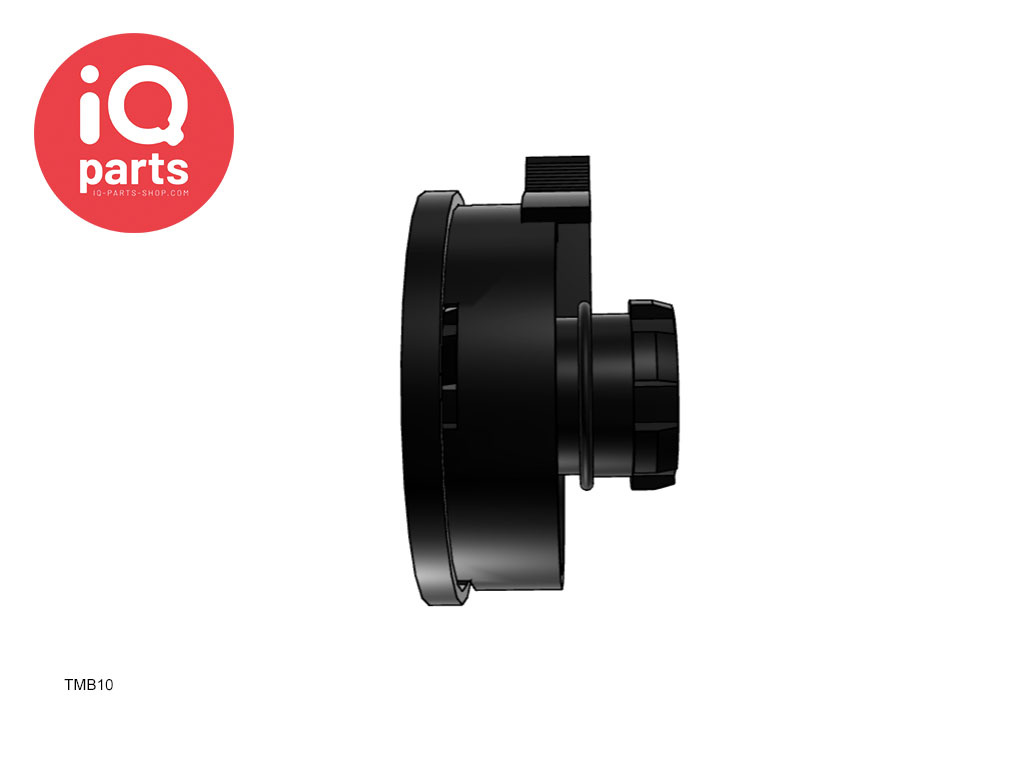

CPC - TMB10 | Coupling Inserts 10 tubes | Acetal | WITHOUT Hose barbs
Brand:
CPC
| Article number: | CPC-TMB10 |
| SKU: | TMB10 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
Information
CPC - TMB10 | Coupling Inserts 10 tubes | Acetal | WITHOUT Hose barbs PRICE ON REQUEST
An complete coupling Insert of CPC from the Tentube™ -series WITHOUT Hose barbs. The Coupling TMB10 does not contain hose barbs. You must order this separately and it gives you the opportunity to put together your Tentube coupling entirely according to your own wishes.
You can combine this coupling with all male hose barbs (Fitting Insert) from the Tentube series:
| Hose ID | Hose ID Metric | Acetaal / without valve | Acetaal / with valve | Polypropyleen / without valve | |
| In-line Hose Barb Male | 1/16" | 1.6 mm | TMF01 | - | TMF0112 |
| - | 3.0 mm | TMFM3 | - | - | |
| 1/8" | 3.2 mm | TMF02 | - | TMF0212 |
The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch. Tubing orientation is ensured by keying the coupling body and insert. Different fluids and tubing sizes can be accommodated by using acetal or polypropylene inserts in three popular sizes.
Characteristics and benefits:
- Ten line connection; Fast, efficient operation
- Separate flow paths; Pressure and/or vacuum in one coupling
- Insert is keyed to body; Ensures correct line orientation
- With locking latch; one-hand operation
- Acetal or polypropylene inserts; Maximize design flexibility
Materials:
- Main components: Nylon
- Valve: Acetal
- Valve springs: 316 Stainless Steel
- Fitting inserts: Acetal
- 0-ring: Buna-N with Acetal
- Panel mount adapter: Acetal
- Tube Shroud: Acetal
Specifications:
- Working pressure: vacuum up to 6.9 bar (100 PSI)
- Operating Temperature Acetal fitting inserts: -40º to 180º F (-40ºC to 82ºC)
- Operating Temperature Polypropylene fitting inserts: 32º to 180º F (0ºC to 82ºC)
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Chemicals |
| Operating Pressure: | 6,9 bar Vacuum |
| Temperature range: | -40º to 180º F (-40° C to +82° C) |
| Material: | Acetal |
| Size: | -- |
| Connection: | In-line Coupling Body |
| Seal: | -- |
| Hose connection: | All Male hose barbs of Tentube |
| Weight: | -- |
