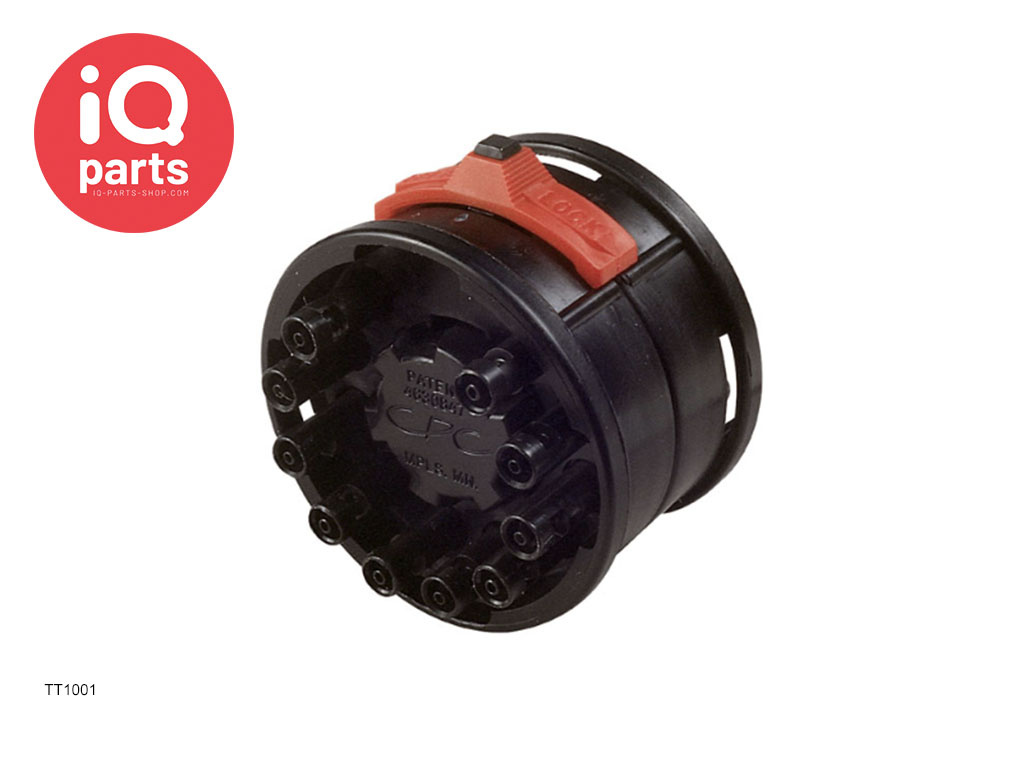

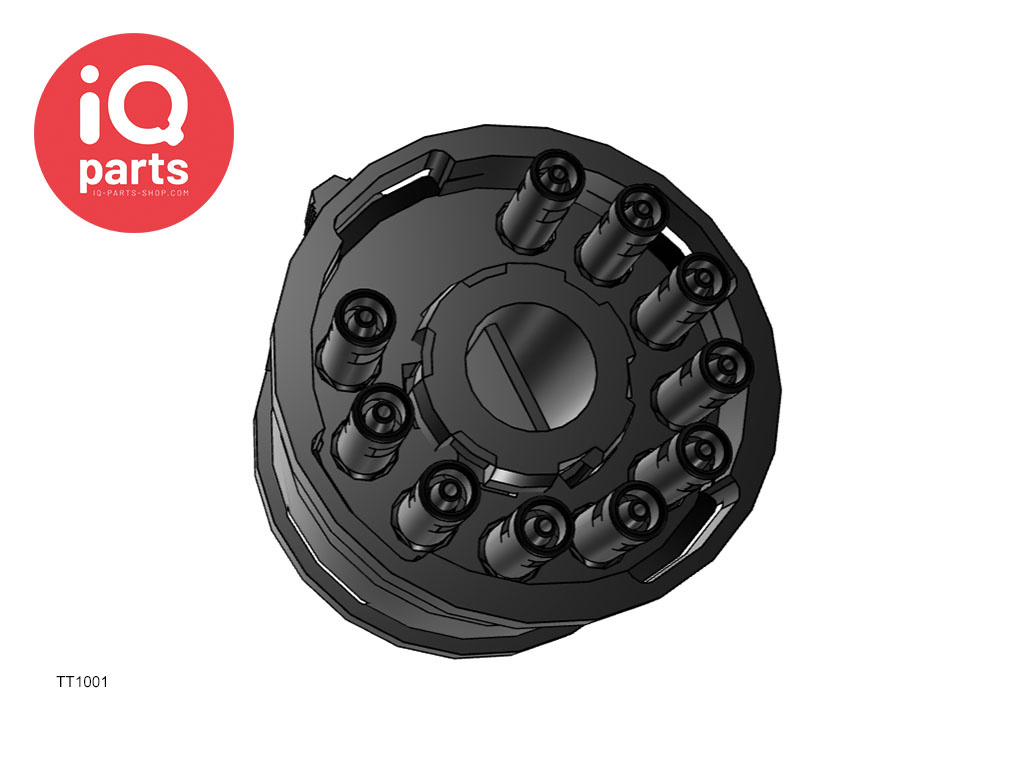

CPC - TT1001 / TTD1001 | Coupling Set 10 tubes | Acetal | 1.6 mm (1/16") Hose barbs
Brand:
CPC
| Article number: | CPC-TTD1001 |
| SKU: | TTD1001 |
- 2 year warranty
- Delivery time: 2 - 3 weeks
- Customer service 09:00 - 17:00
Information
CPC - TT1001 / TTD1001 | Coupling Set 10 tubes | Acetal | 1.6 mm (1/16") Hose barbs PRICE ON REQUEST

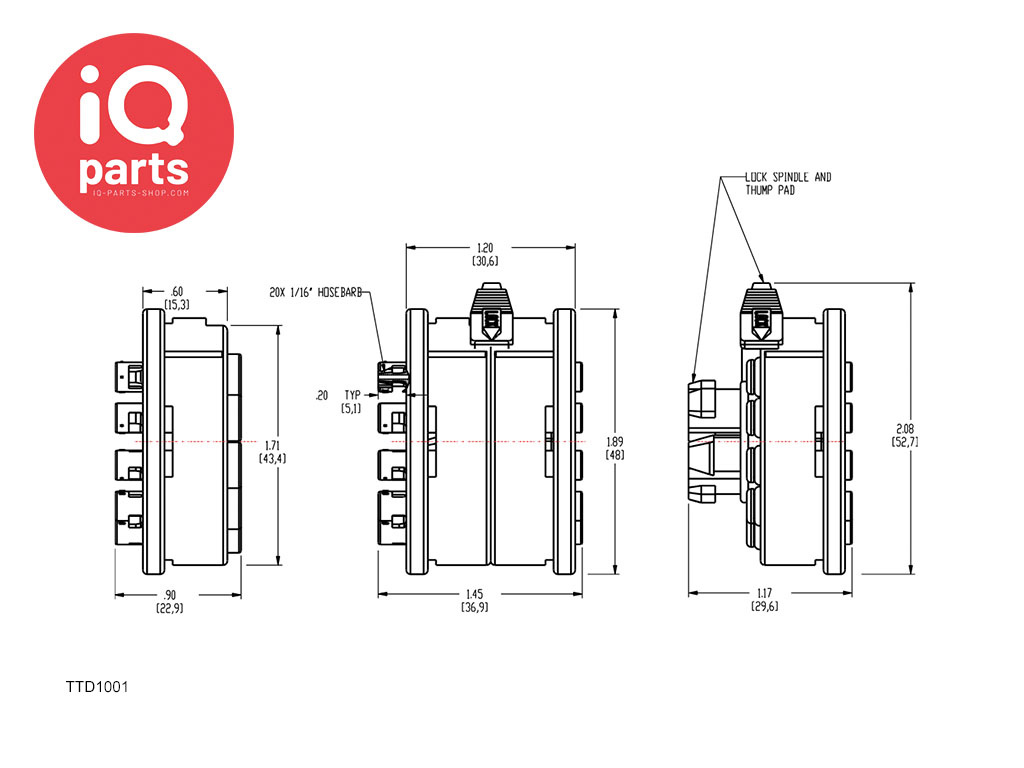

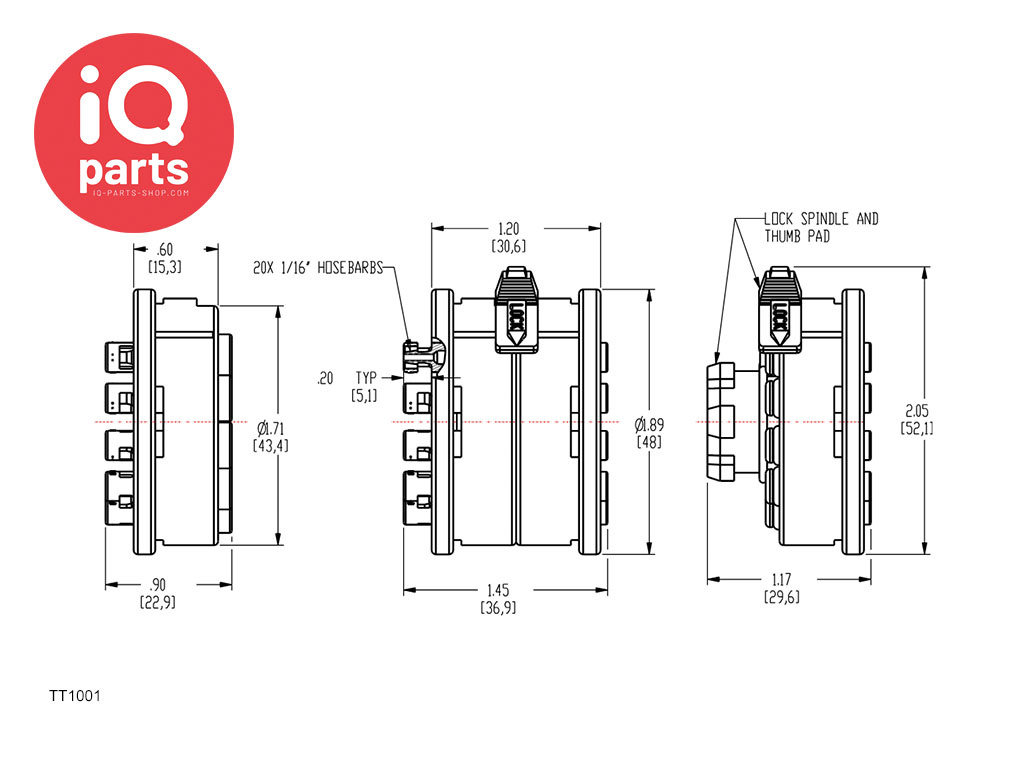

An complete coupling Set of CPC from the Tentube™ -series with 1.6 mm Hose barbs. This quick coupling (female & male) ensures a leak-free seal and is made of Acetal. This coupling Set is available with a valve (TTD1001) and without a valve (TT1001). (Choose at the top right at "Make a choice:")
The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch. Tubing orientation is ensured by keying the coupling body and insert. Different fluids and tubing sizes can be accommodated by using acetal or polypropylene inserts in three popular sizes.
Characteristics and benefits:
- Ten line connection; Fast, efficient operation
- Separate flow paths; Pressure and/or vacuum in one coupling
- Insert is keyed to body; Ensures correct line orientation
- With locking latch; one-hand operation
- Acetal or polypropylene inserts; Maximize design flexibility
Materials:
- Main components: Nylon
- Valve: Acetal
- Valve springs: 316 Stainless Steel
- Fitting inserts: Acetal
- 0-ring: Buna-N with Acetal
- Panel mount adapter: Acetal
- Tube Shroud: Acetal
Specifications:
- Working pressure: vacuum up to 6.9 bar (100 PSI)
- Operating Temperature Acetal fitting inserts: -40º to 180º F (-40ºC to 82ºC)
- Operating Temperature Polypropylene fitting inserts: 32º to 180º F (0ºC to 82ºC)
Look at related products for the right choice for your application or contact our sales department: [email protected]
Specifications
| Medium: | Liquid / Chemicals |
| Operating Pressure: | 6,9 bar Vacuum |
| Temperature range: | -40º to 180º F (-40° C to +82° C) |
| Material: | Acetal |
| Size: | -- |
| Connection: | Complete coupling set |
| Seal: | BUNA-N (NBR, Nitrile Rubber) |
| Hose connection: | 1.6 mm (1/16") Inner diameter |
| Weight: | -- |
