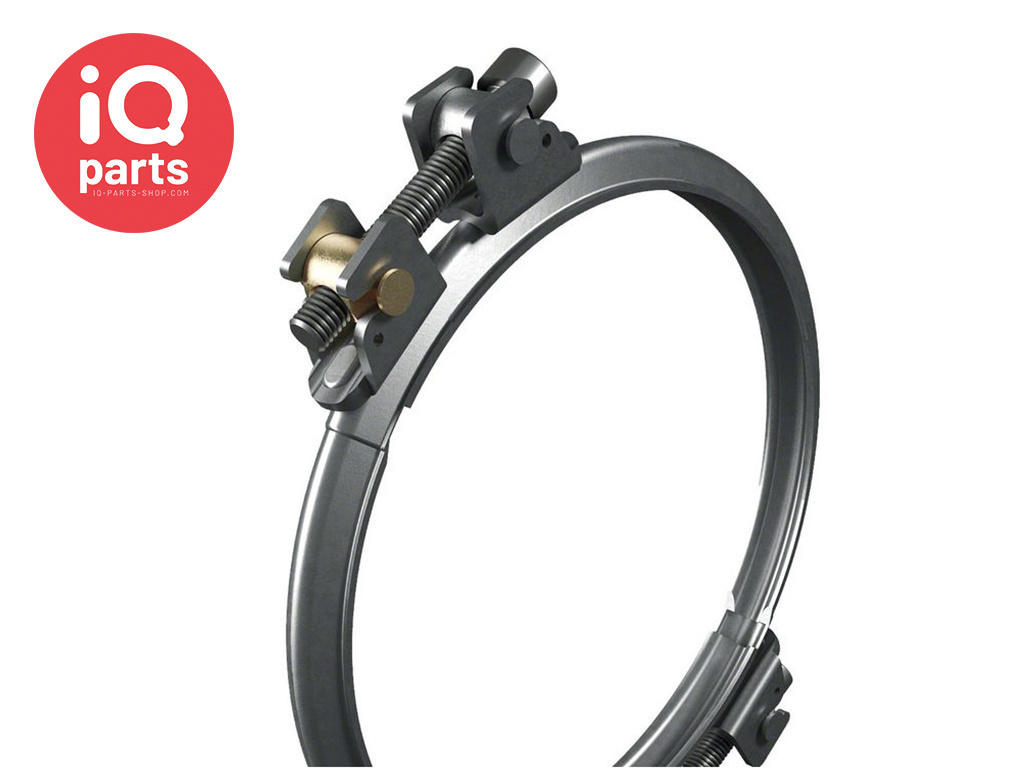

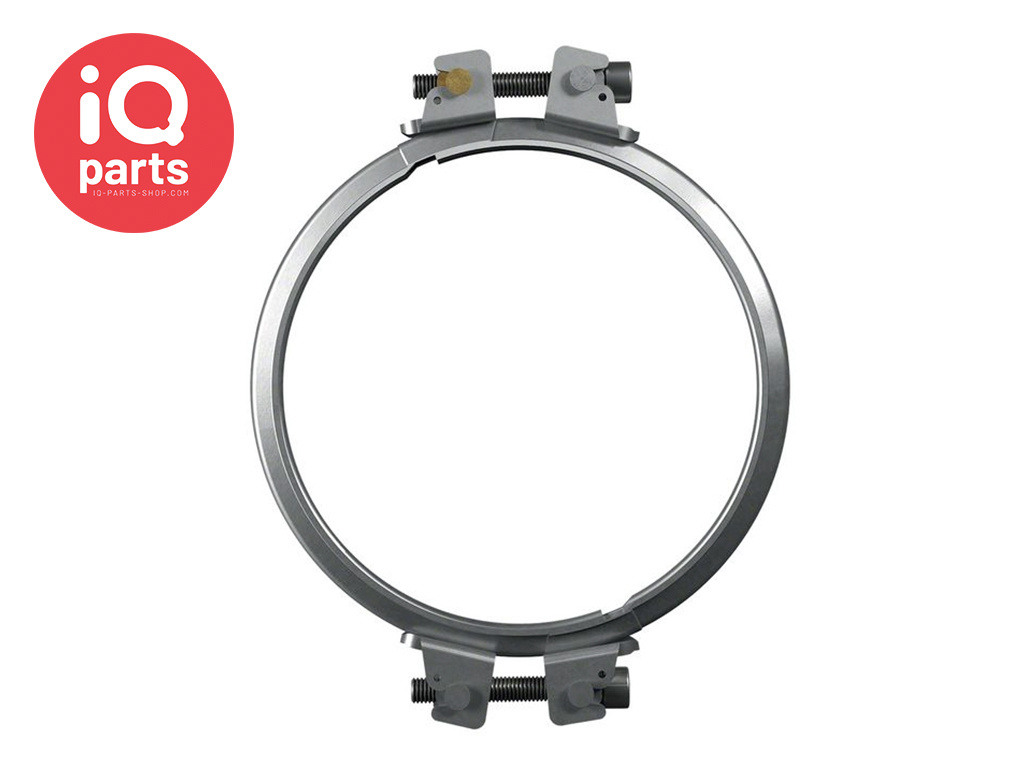

IQ-Parts Two-part clamping ring - with Egonon Seal Insert - W4 (AISI 304) - 2 mm

The two-part clamping ring, including Egobon sealing insert for connecting pipes with a wall thickness of 2 mm, is considered as an allrounder.

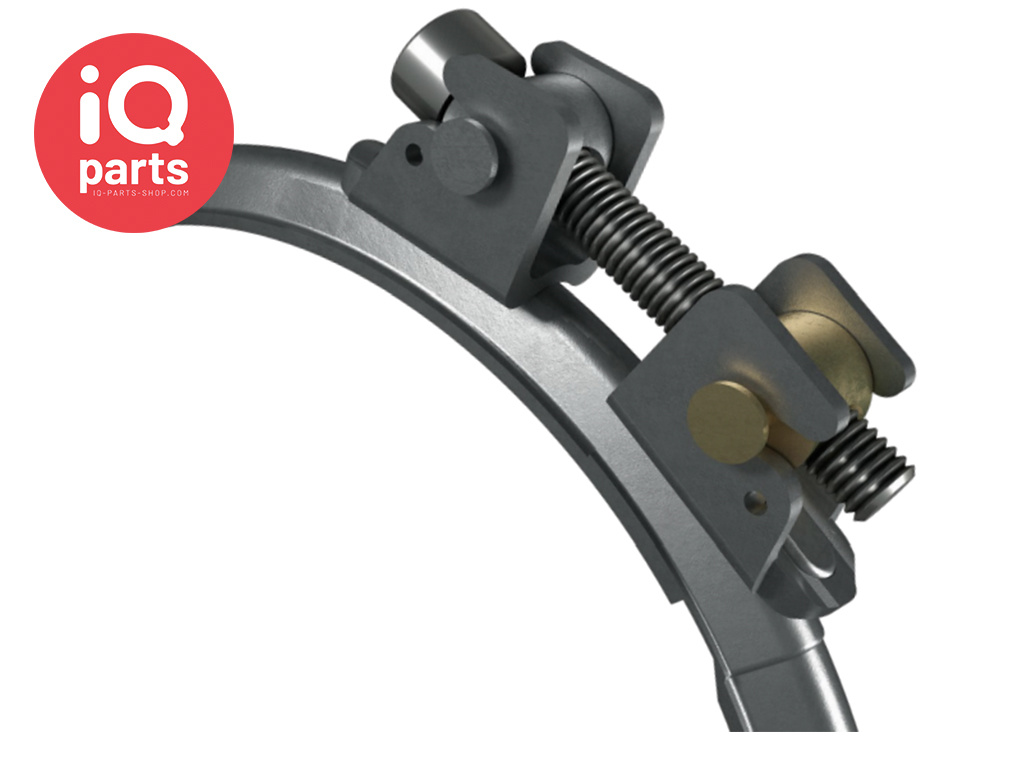

It is universally applicable and it is very easy to install thanks to its special swivel joint technology, even in difficult to access areas. Due to its special rotating part, the screw can not be lost during assembly.

The two-part clamping ring is produced and offered in three different profiles for the 1 mm, 2 mm and 3 mm tube construction. Each of the three profiles is especially suitable for certain pipe wall thickness only.

The uniform seal insert made of Egobon is already included in every profile and can remain in the clamping ring during assembly.









2-2-80, 2-2-90, 2-2-100, 2-2-112, 2-2-120, 2-2-125, 2-2-140, 2-2-150, 2-2-160, 2-2-175, 2-2-180, 2-2-200, 2-2-224, 2-2-250, 2-2-280, 2-2-300, 2-2-315, 2-2-350, 2-2-355, 2-2-400, 2-2-450, 2-2-500, 2-2-550, 2-2-560, 2-2-600, 2-2-630, 2-2-80-01, 2-2-90-01, 2-2-100-01, 2-2-112-01, 2-2-120-01, 2-2-125-01, 2-2-140-01, 2-2-150-01, 2-2-160-01, 2-2-175-01, 2-2-180-01, 2-2-200-01, 2-2-224-01, 2-2-250-01, 2-2-280-01, 2-2-300-01, 2-2-315-01, 2-2-350-01, 2-2-355-01, 2-2-400-01, 2-2-450-01, 2-2-500-01, 2-2-550-01, 2-2-560-01, 2-2-600-01, 2-2-630-01
