UNI-Coupling UNI-COMBIGRIP S | W5 | NBR sealing
Brand:
UNI-Coupling
Article number: | UNI-779737006 |
SKU: | 779737006 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
UNI-Coupling UNI-COMBIGRIP S | W5 | NBR sealing | PN 10

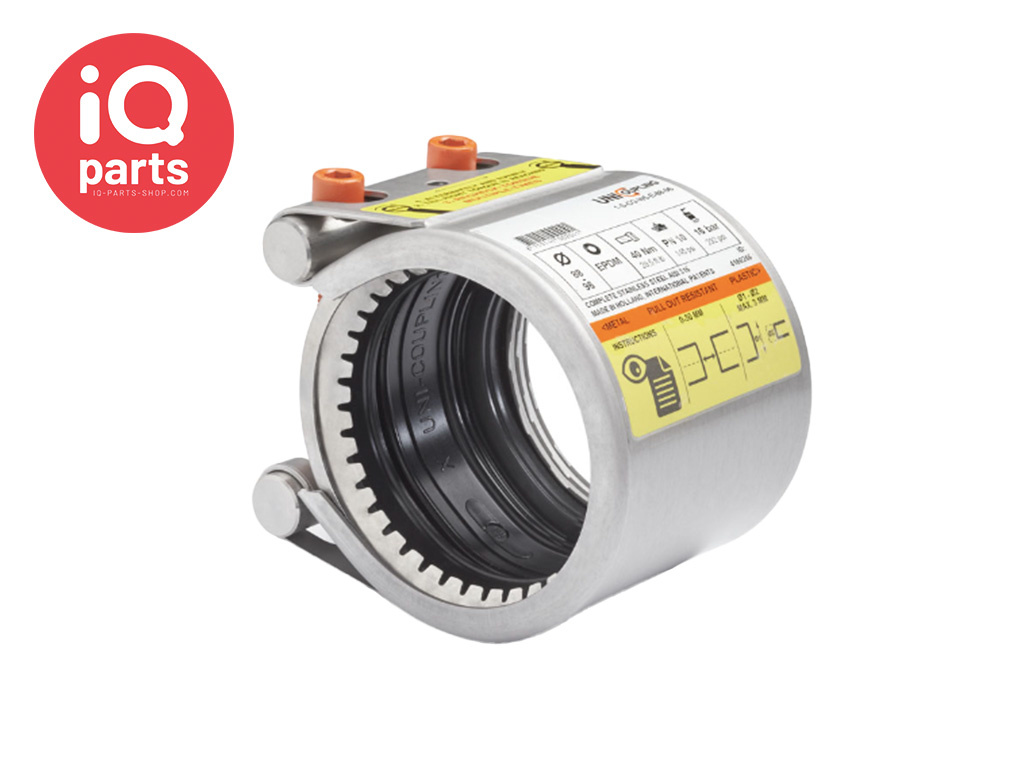

UNI-Combigrip is THE coupling to connect plastic pipes with metal pipes. The coupling has the specially designed PLASTGRIP ring with cut teeth on one side that engages the plastic tube without damaging it.On the other side is the GRIP ring with the specially designed ball solution. These ball-shaped hardened teeth for metal pipes provide improved anchoring in hard surfaces. The GRIP ring has a progressive anchoring effect as the axial tensile load on the pipe increases.
Due to the innovative sealing solution, the use of a stainless steel insert strip is only necessary when used on vacuum pipes.

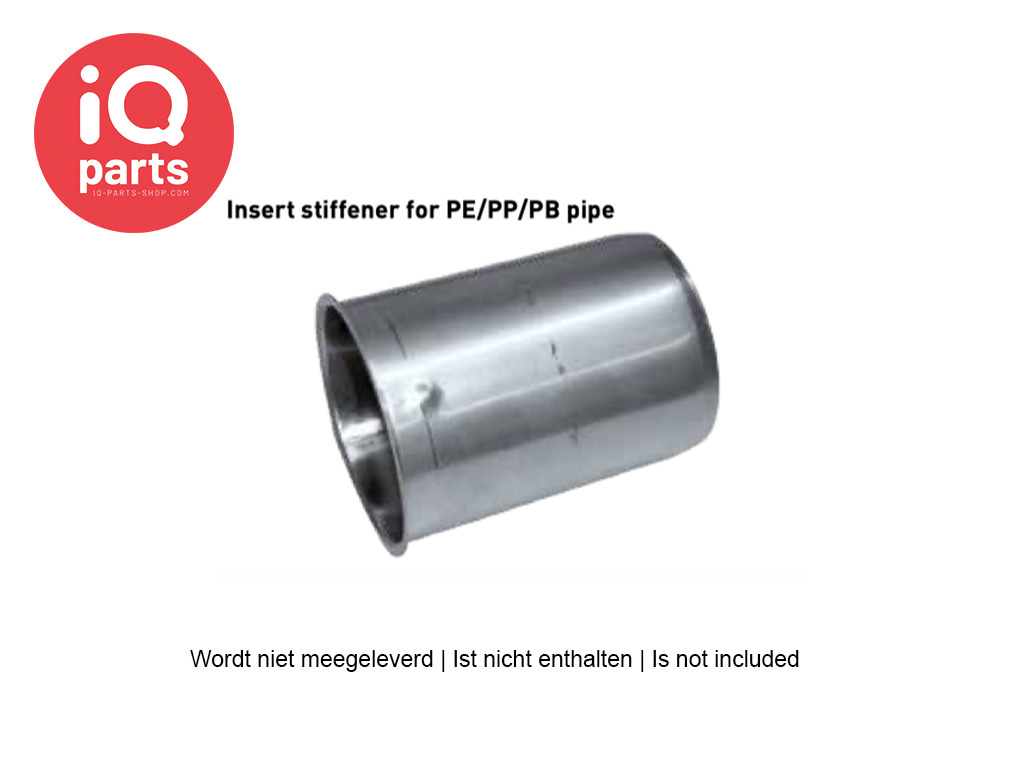

The use of insert stiffeners for installation on PE, PVC, PP or PB pipes is recommended.
The UNI-Combigrip is available in sizes from 39 mm to 640 mm.
Characteristics:
With NBR sealing:
Available on request:
Advantages:
- Quality: W5
- Sealing: NBR
- Temperature range: -20ºC to 80ºC
- Pressure: PN 10
- Tube material: Steel, cast iron, PE, PVC-C, PVC-U, ABS, PP, PB
- Axial restraint
With NBR sealing:
- Water
- Gas
- Oil
- Fuel
- Other hydrocarbon
Available on request:
- Silicone sealing
- Viton sealing
- Other diameters
Advantages:
- Time-saving installation: no welding, pre-alignment or pipe end treatment required
- Space-saving: can be installed in hard-to-reach places
- Pipe tolerance compensation and angular distortion compensation
Applications:
Also available in this range:
- Ship-building
- Offshore
- Mechanical engineering
- (Petro)chemical industry
- Sewerage works
Also available in this range:
- EPDM sealing
- UNI-Grip (metal/metal. Pull-resistant)
- UNI-Flex/UNI-Rep (plastic/metal, plastic/plastic, metal/metal. Not Pull-resistant)
- UNI-Plastgrip (plastic/Plastic. Pull-resistant)
Productcode:
779737006 - 779737008 - 779737010 - 779737012 - 779737014 - 779737016 - 779737018 -779737020 - 779737022 - 779737024 - 779737025 - 779737026 - 779737027 - 779737028 - 779737029 -779737030
1-S-CG-W5-N-39-43 - 1-S-CG-W5-N-47-52,5 - 1-S-CG-W5-N-58-64 - 1-S-CG-W5-N-72-80 - 1-S-CG-W5-N-88-96 - 1-S-CG-W5-N-104-112 - 1-S-CG-W5-N-108-115 - 1-S-CG-W5-N-122-130 - 1-S-CG-W5-N-137-145 - 2-S-CG-W5-N-157-165 - 2-S-CG-W5-N-164-172 - 2-S-CG-W5-N-172-185 - 2-S-CG-W5-N-195-208 - 2-S-CPG-W5-N-215-228 - 2-S-CG-W5-N-247-260 - 2-S-CG-W5-N-269-282 - 2-S-CG-W5-N-312-325 - 2-S-CG-W5-N-350-363
Specifications

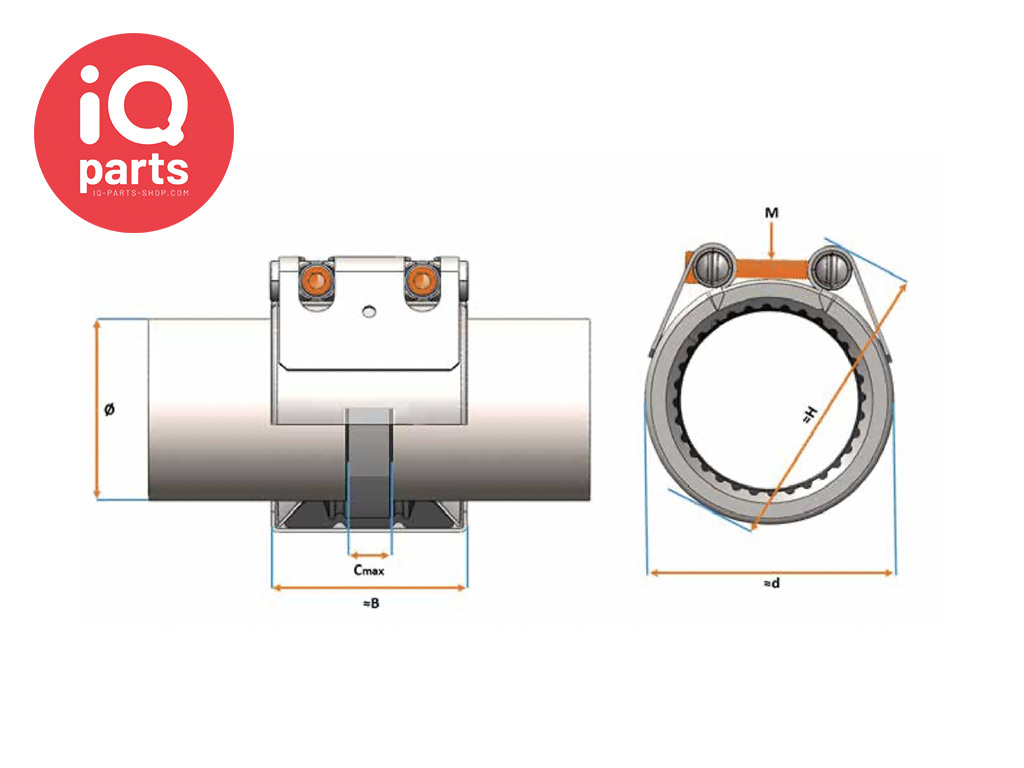

Bolt: | M8 - M10 - M12 - M16 |
Bandwidth: | See PDF |
Tightening torque (Maximum): | See PDF |
