UNI-Coupling UNI-GRIP S | W5 | NBR sealing
Brand:
UNI-Coupling
Article number: | UNI-779762001 |
SKU: | 779762001 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
UNI-Coupling UNI-GRIP S | W5 | NBR sealing | PN 16
The UNI-Grip S is used for an axial resistant metal-to-metal pipe connection. The special design of the conically stamped teeth ensures a very secure and strong axial connection. This eliminates the need for welding, flanges or branching, because the Grip S allows you to make a quick and safe pipe connection.
This pipe coupling can be applied to metal or cast iron pipes.The UNI-Grip S can be used for both new and used pipes.
The use of the ball-shaped conically stamped teeth improves anchoring on hard surfaces, such as thin-walled stainless steel or cast-iron pipes. Even with very strong vibrations or axial tensile forces.
The UNI-Grip is available in sizes from 21 mm to 750 mm.
Characteristics:
With NBR sealing:
Available on request:
Advantages:
- Quality: W5
- Sealing: NBR
- Temperature range: -20ºC to 80ºC
- Pressure: PN 16
- Tube material: Steel and cast iron
- Axial restraint
With NBR sealing:
- Water
- Gas
- Oil
- Fuel
- Other hydrocarbon
Available on request:
- Silicone sealing
- Viton sealing
- Large diameters
Advantages:
- Progressive locking ensures a hassle-free and maintenance-free connection
- Reusable
- Shock resistant
- Space-saving connector
- Resistant to high vibration loads
Applications:
Also available in this range:
- Ship-building
- Offshore
- Mechanical engineering
- (Petro)chemical industry
- Sewerage works
Also available in this range:
- EPDM sealing
- UNI-Plastgrip (plastic/plastic. Pull-resistant)
- UNI-Flex/UNI-Rep (plastic/metal, plastic/plastic, metal/metal. Not tensile)
- UNI-Combigrip (plastic/metal. Pull-resistant)
Productcode:
779762001 - 779762002 - 779762003 - 779762004 - 779762005 - 779762006 - 779762007 -779762008 - 779762009 - 779762010 - 779762011 - 779762012 - 779762013 - 779762014 -779762015 - 779762016 - 779762017 - 779762018 - 779762019 - 779762020 - 779762021 -779762022 - 779762023 - 779762024 - 779762025 - 779762026 - 779762027 - 779762028 -779762029 - 779762030 - 779762031
1-S-G-W5-N-19-21 - 1-S-G-W5-N-21-24 - 1-S-G-W5-N-25-29 - 1-S-G-W5-N-29-32 - 1-S-G-W5-N-33-36 - 1-S-G-W5-N-36-39 - 1-S-G-W5-N-39-43 - 1-S-G-W5-N-43-47,5 - 1-S-G-W5-N-47,5-52,5 - 1-S-G-W5-N-52,5-58 - 1-S-G-W5-N-58-64 - 1-S-G-W5-N-64-72 - 1-S-G-W5-N-72-80 - 1-S-G-W5-N-80-88 - 1-S-G-W5-N-88-96 - 1-S-G-W5-N-97-105 - 1-S-G-W5-N-104-112 - 1-S-G-W5-N-112-120 - 1-S-G-W5-N-122-130 - 1-S-G-W5-N-129-137 - 1-S-G-W5-N-137-145 - 1-S-G-W5-N-149-157 - 1-S-G-W5-N-157-165 - 1-S-G-W5-N-164-172 - 2-S-G-W5-N-172-185 - 2-S-G-W5-N-185-198 - 2-S-G-W5-N-198-211 - 2-S-G-W5-N-210-223 - 2-S-G-W5-N-221-234 - 2-S-G-W5-N-234-247 - 2-S-G-W5-N-247-260 - 2-S-G-W5-N-263-276 - 2-S-G-W5-N-277-290

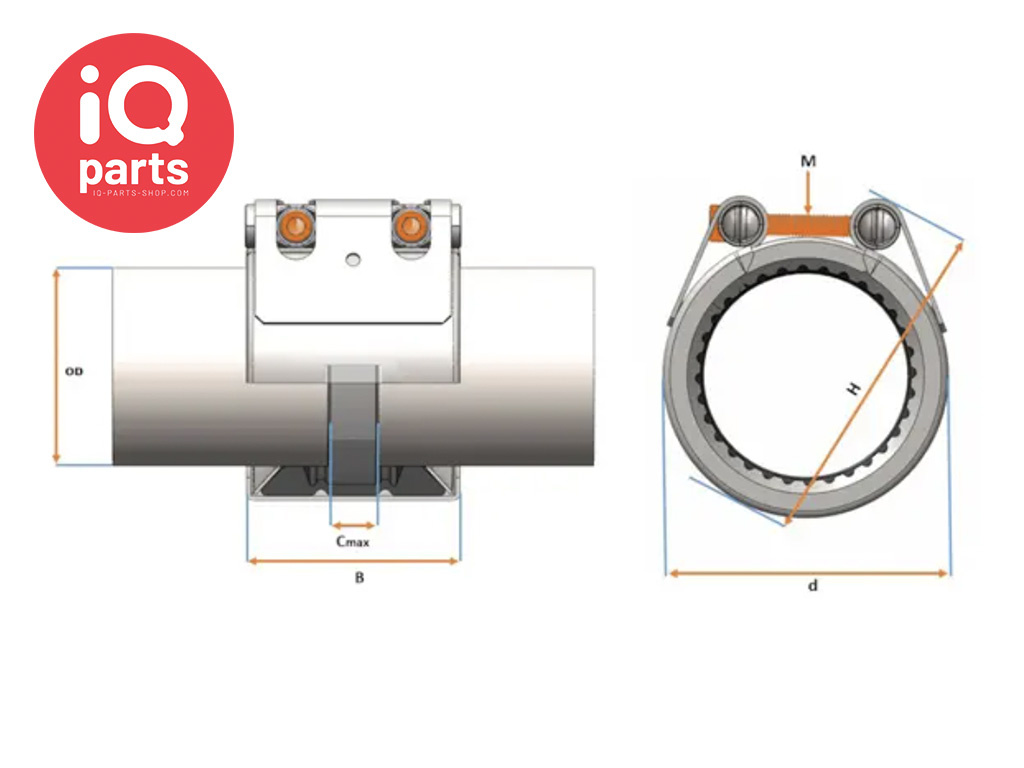

Specifications
Bolt: | M6 - M8 - M10 - M12 - M16 |
Bandwidth: | See PDF |
Tightening torque (Maximum): | See PDF |
