UNI-Coupling UNI-PLASTGRIP S | W5 | NBR sealing
Brand:
UNI-Coupling
| Article number: | UNI-779729006 |
| SKU: | 779729006 |
- 2 year warranty
- Delivery time: 1 week after order date
Information
UNI-Coupling UNI-PLASTGRIP S | W5 | NBR sealing | PN 10
The UNI-Plastgrip S is used for a tensile-resistant pipe connection made of plastic with plastic. Thanks to the innovative teeth, these teeth engage in the plastic without damaging the surface but do provide a tensile-resistant connection.

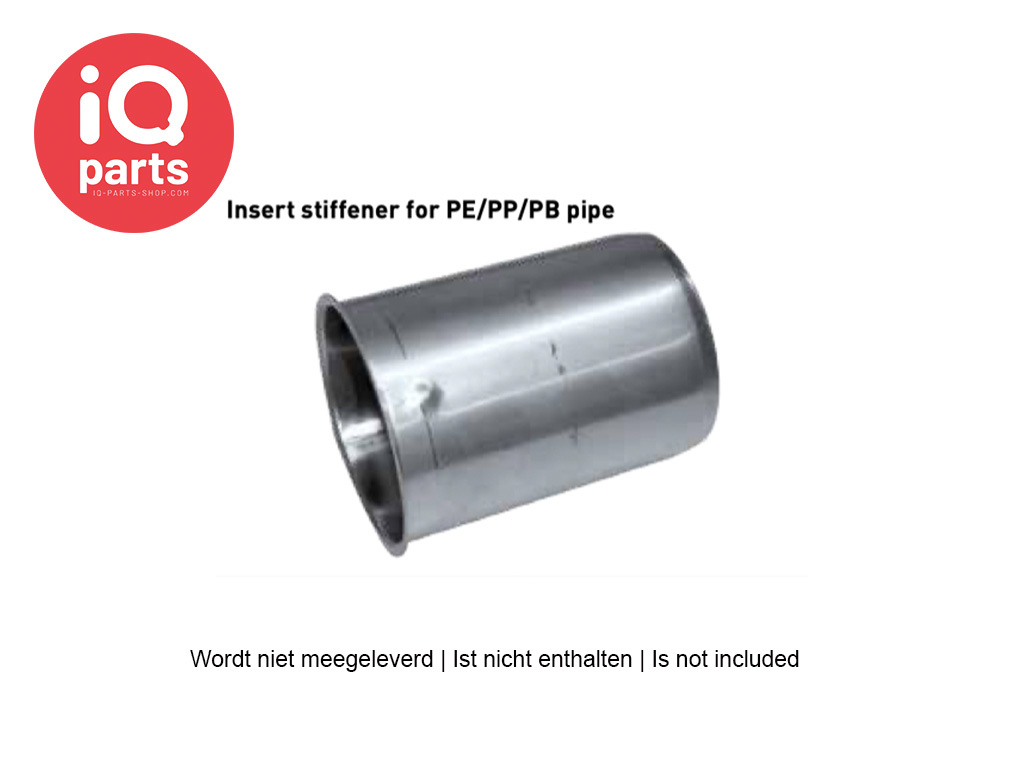

The UNI-Plastgrip S can be used for both new and used pipes. The use of insert stiffeners for installation on PE, PVC, PP or PB pipes is recommended.
The UNI-Plastgrip is available in sizes from 39 mm to 640 mm.
Characteristics:
With NBR sealing:
Available on request:
Advantages:
- Quality: W5
- Sealing: NBR
- Temperature range: -20ºC to 80ºC
- Pressure: PN 10
- Tube material: PE, PVC-C, PVC-U, ABS, PP, PB
- Axial restraint
With NBR sealing:
- Water
- Gas
- Oil
- Fuel
- Other hydrocarbon
Available on request:
- Silicone sealing
- Viton sealing
- Large diameters
Advantages:
- Time-saving installation: no welding, pre-alignment or pipe end treatment required
- Space-saving: can be installed in hard-to-reach places
- Pipe tolerance compensation and angular distortion compensation
Applications:
Also available in this range:
- Ship-building
- Offshore
- Mechanical engineering
- (Petro)chemical industry
- Sewerage works
Also available in this range:
- EPDM sealing
- UNI-Grip (metal/metal. Pull-resistant)
- UNI-Flex/UNI-Rep (plastic/metal, plastic/plastic, metal/metal. Not tensile)
- UNI-Combigrip (plastic/metal. Pull-resistant)
Productcode:
779729006 - 779729008 - 779729010 - 779729012 - 779729014 - 779729016 - 779729018 -779729020 - 779729022 - 779729024 - 779729025 - 779729027 - 779729029 - 779729030 -779729031 - 779729032
1-S-PG-W5-N-39-43 - 1-S-PG-W5-N-47-52,5 - 1-S-PG-W5-N-58-64 - 1-S-PG-W5-N-72-80 - 1-S-PG-W5-N-88-96 - 1-S-PG-W5-N-104-112 - 1-S-PG-W5-N-122-130 - 1-S-PG-W5-N-137-145 - 1-S-PG-W5-N-157-165 - 2-S-PG-W5-N-172-185 - 2-S-PG-W5-N-195-208 - 2-S-PG-W5-N-215-228 - 2-S-PG-W5-N-247-260 - 2-S-PG-W5-N-269-282 - 2-S-PG-W5-N-312-325 - 2-S-PG-W5-N-350-363
Specifications
| Bolt: | M8 - M10 - M12 - M16 |
| Bandwidth: | See PDF |
| Tightening torque (Maximum): | See PDF |
