UNI-Coupling UNI-REP S | W5 | EPDM sealing
Brand:
UNI-Coupling
| Article number: | UNI-779912008 |
| SKU: | 779912008 |
- 2 year warranty
- Delivery time: 1 week after order date
- Customer service 09:00 - 17:00
Information

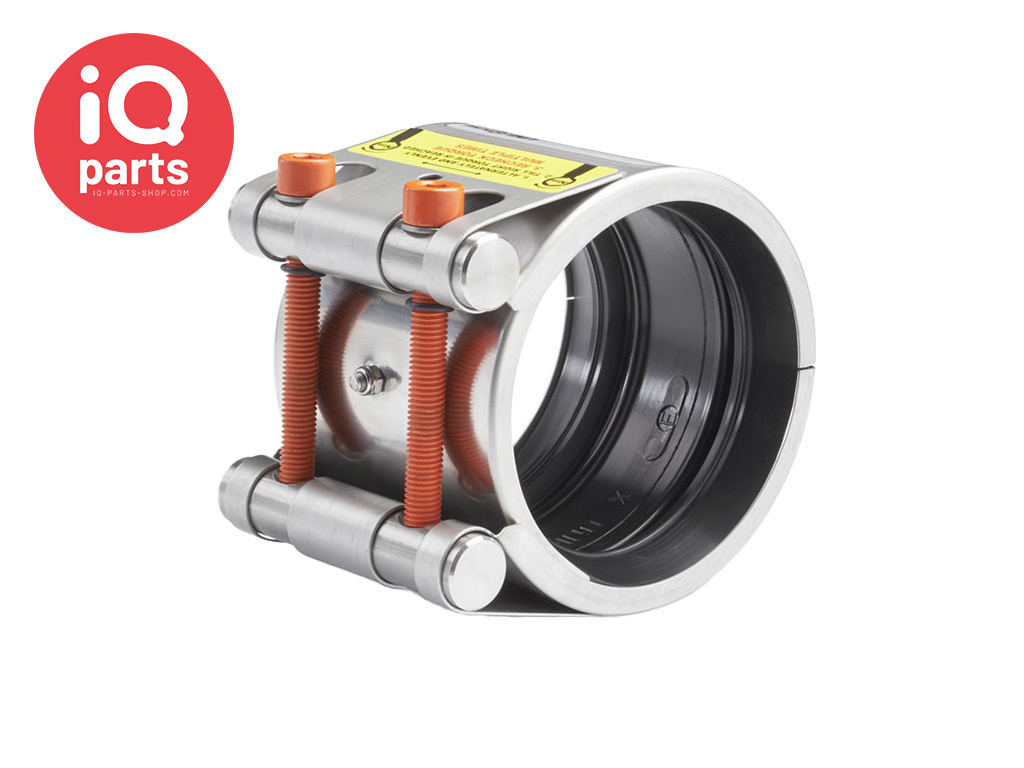

UNI-Coupling UNI-REP S | W5 | EPDM sealing | PN 16
This UNI-REP coupling is a non-tensile repair coupling, which can be used to connect metal and/or plastic pipes or to repair damaged plastic or metal pipes.The UNI-REP is made of lightweight stainless steel (W5), so that repairs to existing pipes in, for example, buildings, industry or shipping can be carried out quickly, safely and cheaply. The UNI-REP is easy to place around the pipe to quickly repair the damage, without having to dismantle the pipe. The UNI-REP is available in sizes from 33 mm to 930 mm.

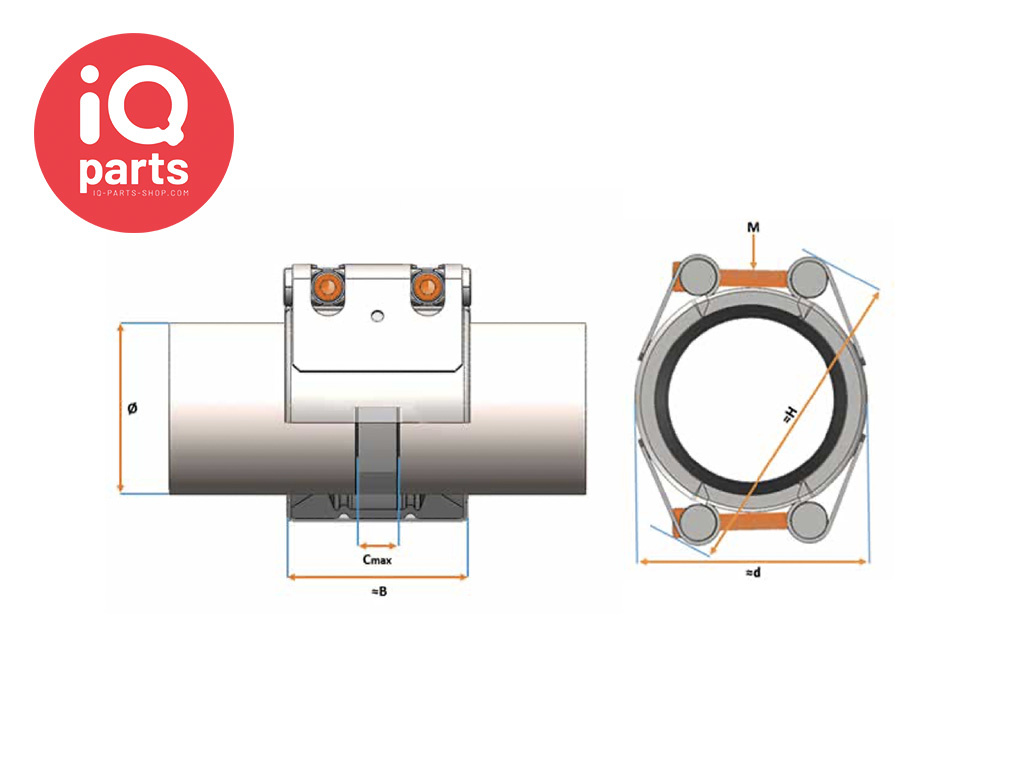

From size 172 - 198 mm, the coupling consists of 2 parts.
Watch this video to show a possible repair.
What is the difference between the UNI-FLEX and the UNI-REP coupling?
The UNI-REP and UNI-FLEX couplings are almost identical to each other. However, the UNI-REP has cut edges at the bottom of the housing, making the UNI-REP suitable for repairing pipes. The UNI-REP can be bent open by the incised edges and placed around a pipe. The UNI-FLEX can only be placed on the end of 2 pipes.
Characteristics:
With EPDM sealing:
Available on request:
Advantages:
- Quality: W5
- Sealing: NBR
- Temperature range: -30ºC to 125ºC
- Pressure: PN 16
- Tube material: Steel, cast iron, PE, PVC-C, PVC-U, ABS, PP, PB
- Non axial restraint
With EPDM sealing:
- All water qualities
- Waste water
- Air
- Solids
- Chemical products
Available on request:
- Silicone sealing
- Viton sealing
- Other diameters
Advantages:
- Suitable for plastic and metal pipes
- Progressive locking ensures a hassle-free and maintenance-free connection
- Reusable
- Shock resistant
- Space-saving connector
- Resistant to high vibration loads
Applications:
Also available in this range:
- Ship-building
- Offshore
- Mechanical engineering
- (Petro)chemical industry
- Sewerage works
Also available in this range:
- EPDM sealing
- UNI-Plastgrip (plastic/plastic. Pull-resistant)
- UNI-GRIP (metal/metal. Pull-resistant)
- UNI-FLEX (plastic/metal, plastic/plastic, metal/metal. Not tensile)
- UNI-Combigrip (plastic/metal. Pull-resistant)
Productcode:
779912005 - 779912006 - 779912007 - 779912008 - 779912009 - 779912010 - 779912011 - 779912012 - 779912013 - 779912014 - 779912015 - 779912016 - 779912017 - 779912018 - 779912019 - 779912020 - 779912021 - 779912022 - 779912023 - 779964024 - 779964026 - 779964028 - 779964030 - 779964032 - 779964034 - 779964036 - 779964038 - 779964040 - 779964042 - 779964044 - 779964046 - 779964048 - 779964049 - 779964050 - 779964052 - 779964054 - 779964055 - 779964057 - 779964058 - 779964059 - 779964061 - 779964061 - 779964063
1-S-R-W5-E-33-36 - 1-S-R-W5-E-36-39 - 1-S-R-W5-E-39-43 - 1-S-R-W5-E-43-47,5 - 1-S-R-W5-E-47,5-52,5 - 1-S-R-W5-E-52,5-58 - 1-S-R-W5-E-58-64 - 1-S-R-W5-E-64-72 - 1-S-R-W5-E-72-80 - 1-S-R-W5-E-80-88 - 1-S-R-W5-E-88-96 - 1-S-R-W5-E-97-105 - 1-S-R-W5-E-104-112 - 1-S-R-W5-E-112-120 - 1-S-R-W5-E-122-130 - 1-S-R-W5-E-129-137 - 1-S-R-W5-E-137-145 - 1-S-R-W5-E-149-157 - 1-S-R-W5-E-157-165 - 1-S-R-W5-E-164-172 - 2-S2-R-B-W5-E-172-198 - 2-S2-R-B-W5-E-197-223 - 2-S2-R-B-W5-E-221-247 - 2-S2-R-B-W5-E-250-276 - 2-S2-R-C-W5-E-275-301 - 2-S2-R-C-W5-E-302-328 - 2-S2-R-C-W5-E-327-353 - 2-S2-R-G-W5-E-348-374 - 2-S2-R-G-W5-E-374-400 - 2-S2-R-G-W5-E-399-425 - 2-S2-R-G-W5-E-425-451 - 2-S2-R-G-W5-E-447-473 -2-S2-R-G-W5-E-475-501 - 2-S2-R-G-W5-E-490-516 - 2-S2-R-G-W5-E-507-533 - 2-S2-R-G-W5-E-533-559 - 2-S2-R-G-W5-E-558-584 - 2-S2-R-G-W5-E-587-613 - 2-S2-R-G-W5-E-615-641 - 2-S2-R-G-W5-E-635-661 - 2-S2-R-G-W5-E-663-689 - 2-S2-R-G-W5-E-687-713 - 2-S2-R-G-W5-E-704-730 - 2-S2-R-G-W5-E-719-745 - 2-S2-R-G-W5-E-756-782 - 2-S2-R-G-W5-E-782-808 - 2-S2-R-G-W5-E-806-832 - 2-S2-R-G-W5-E-828-854 - 2-S2-R-G-W5-E-856-882 - 2-S2-R-G-W5-E-882-908 - 2-S2-R-G-W5-E-904-930

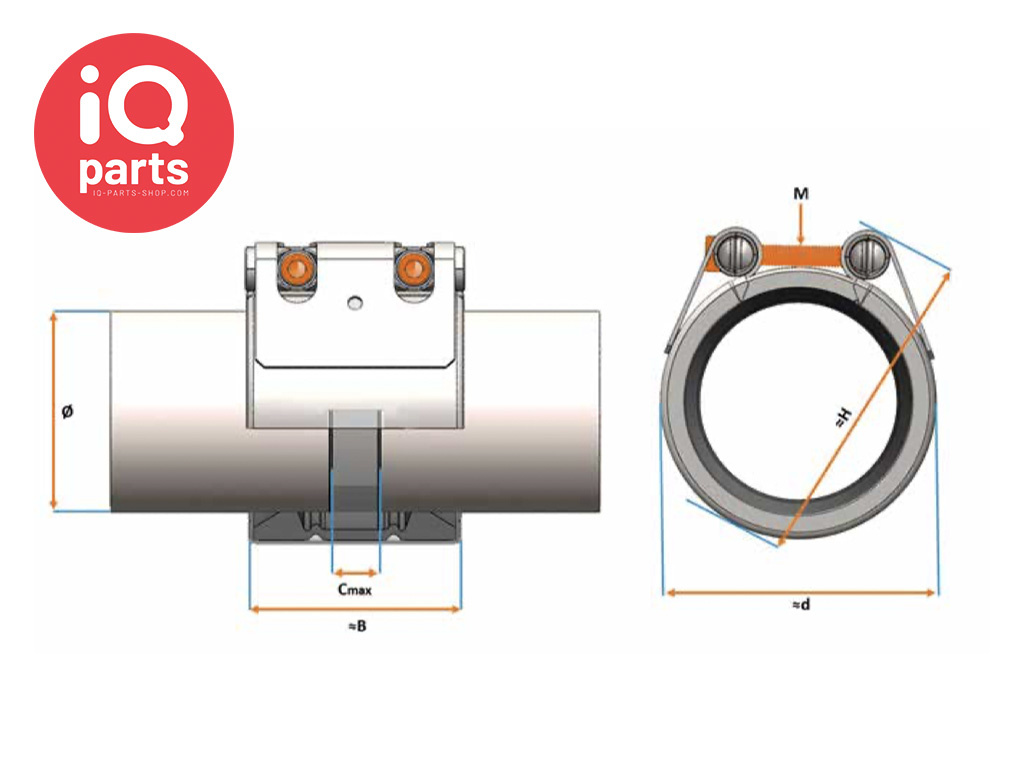

Specifications
| Bolt: | M6 - M8 - M10 - M12 - M16 |
| Bandwidth: | See PDF |
| Tightening torque (Maximum): | See PDF |
