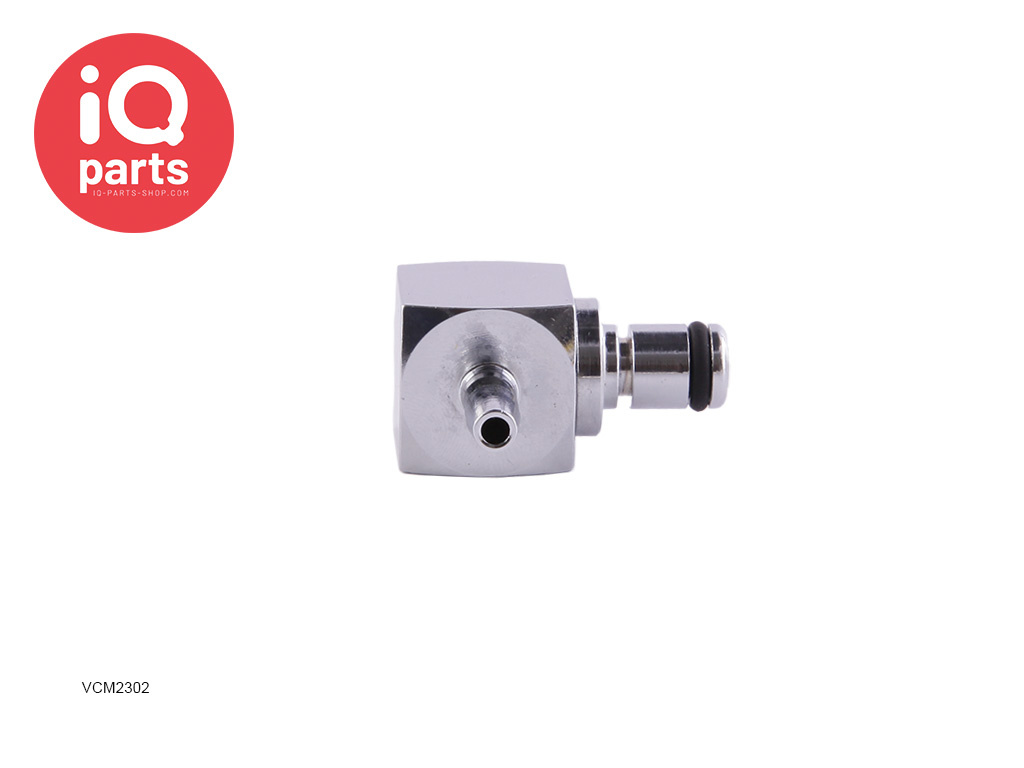

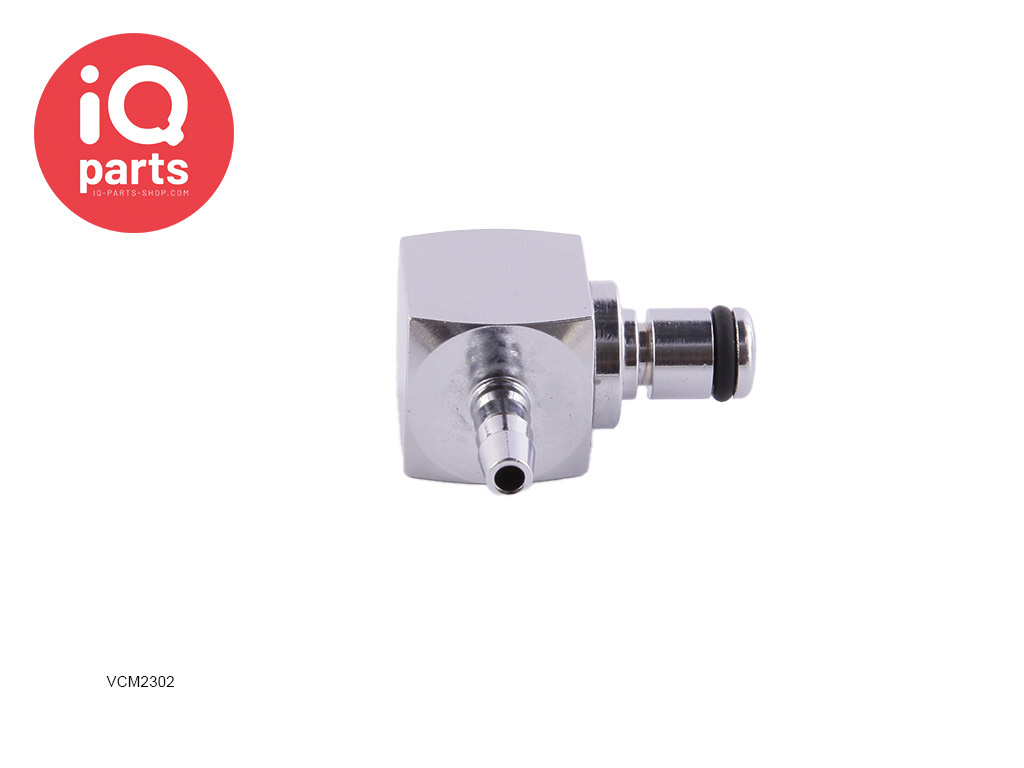

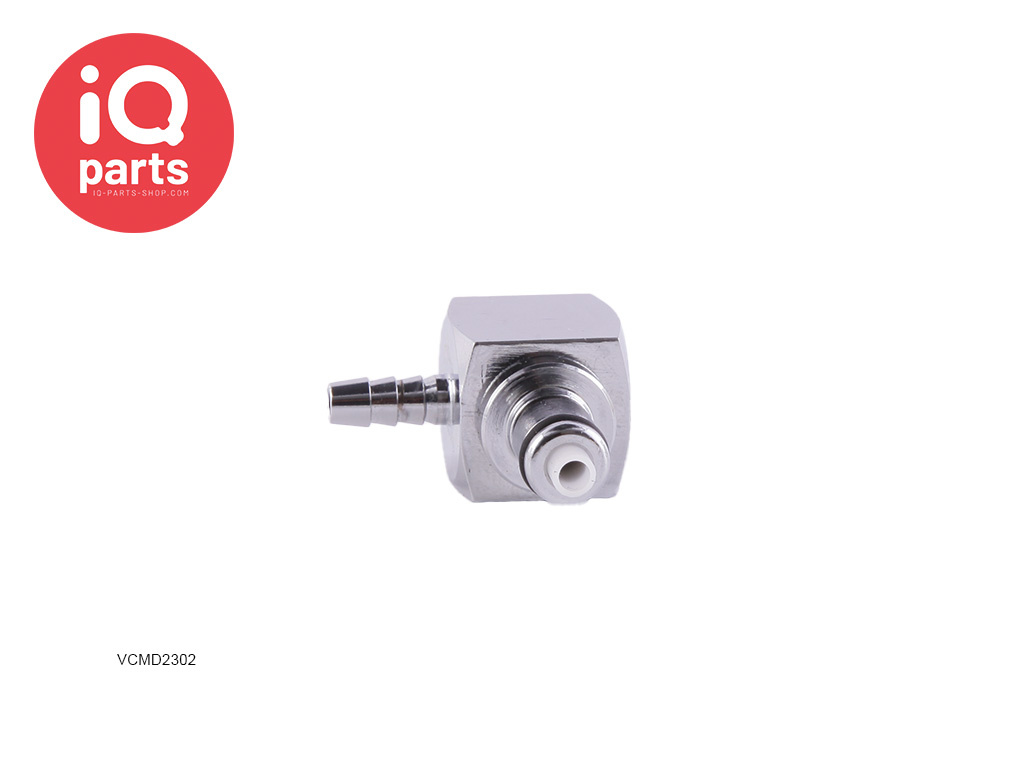

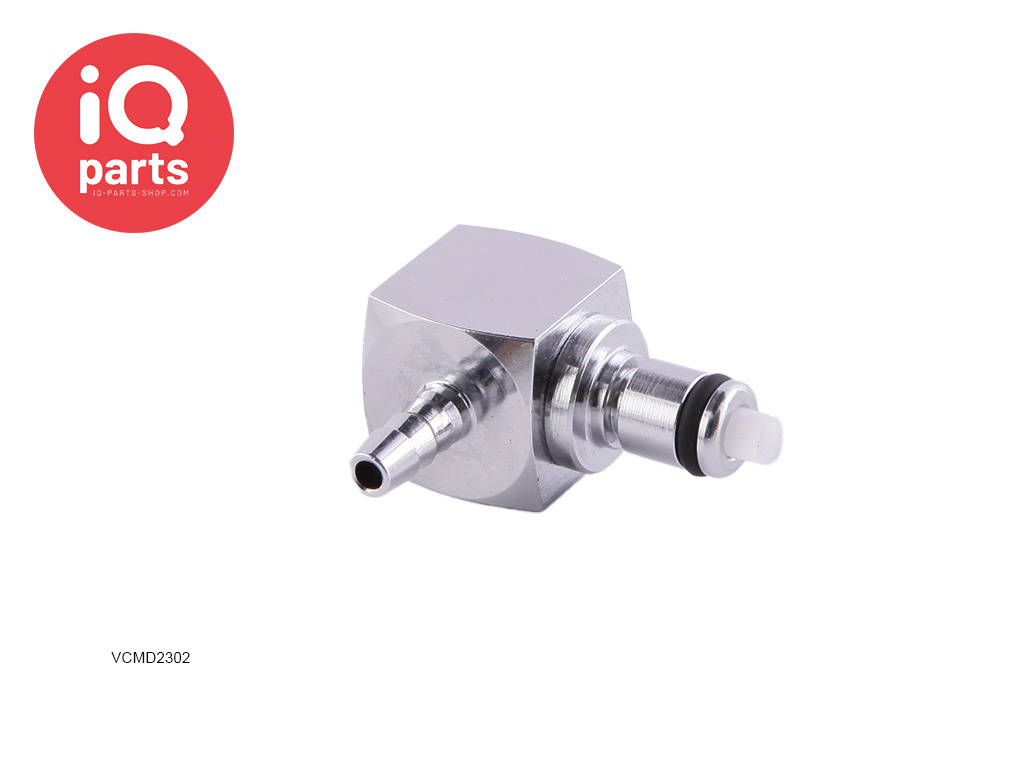

IQ-Parts - VCM2302 / VCMD2302 | Elbow Coupling Insert | Chrome-plated brass | Hose barb 3.2 mm (1/8")
| Article number: | IQP-VCMD2302 |
| SKU: | VCMD2302 |
- 2 year warranty
- Delivery time: 6 weeks after order
- Customer service 09:00 - 17:00
IQ-Parts - VCM2302 / VCMD2302 | Elbow Coupling Insert | Chrome-plated brass | Hose barb 3.2 mm (1/8")
O-RING SELECTION IS A KEY DECISION in determining which connector will perform best in your specific application.Understanding the material characteristics and how they can be affected by both the media being transferred and the environment in which the connector is being used is important.
BUNA-N is the most common O-ring seal due to its solvent, oil and water resistance. Temperature range is -40°F to 250°F.
FKM (Viton) is best suited for applications where chemical and strong acid resistance and/or high temperatures are a requirement. The temperature range is -15°F to 400°F.
EPDM has excellent resistance to polar solvents. This O-ring is not compatible with petroleum. The temperature range is -70°F to 300°F.
SILICONE seals have good temperature resistance. The temperature range is -70°F to 400°F and with special compounds can reach 175°F to 450°F. Silicone can also be supplied with Class VI requirements for medical/bioprocessing applications.Properties of the coupling from the VCM series:
- Brass Material
- Chrome plating
- Durable and able to withstand higher pressure and temperature
- Attractive appearance
- Versions rated to 204ºC
- One-hand connection and disconnection
- VCM mates with MC, PMC and PMC12 Series couplings of CPC
Possible Applications:
- clean air systems
- fermentation
- papermaking
- laser cooling systems
- packaging systems
- oxygen concentrator
General information about the VCM series:
IQ-Parts VCM Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the VCM Series features a one-hand operation for swift and easy connects and disconnects. These couplings offer the flexibility of multiple configurations and terminations to mate with both the MC, PMC acetal and PMC12 polypropylene couplings of CPC. In addition, couplings are available that meet the requirements of the NSF standard.
For more technical information, see the PDF.- Material: Chrome-plated brass
- Available in various sizes: from 6.4 mm to 9.5 mm ID, also available as a straight coupling
- Available with clamping ring coupling, hose tail or male or female thread
- With and without valve, Valve spring made of stainless steel 316 (W5)
- Available with panel mounting option
- O-rings: Buna-N (NBR)
- Vacuum up to 17.3 bar (250 PSI)
- Temperature range: -40ºC to 82ºC constant
Look at related products for the right choice for your application or contact our sales department: [email protected]
| Medium: | Liquid / Air |
| Operating Pressure: | 17,3 bar Vacuum |
| Temperature range: | –40° C tot +82° C |
| Material: | Chrome-plated brass |
| Size: | 1/8" flow |
| Connection: | Elbow Coupling Insert |
| Seal: | Choose at the top right |
| Hose connection: | 3,2 mm (1/8") Inner diameter |
| Weight: | -- |
