GETECH Vibration mounts Type A Sand-Glass (60 shore)
Brand:
Getech Srl.
- Buy 25 for €1,76 each and save 10%
- Buy 50 for €1,56 each and save 20%
- Buy 100 for €1,37 each and save 30%
- Buy 250 for €1,17 each and save 40%
- Buy 500 for €0,98 each and save 50%
Article number: | GET-A2MS12 |
SKU: | A2MS12 |
- 2 year warranty
- Delivery time: Delivery in 1 to 2 days
Information

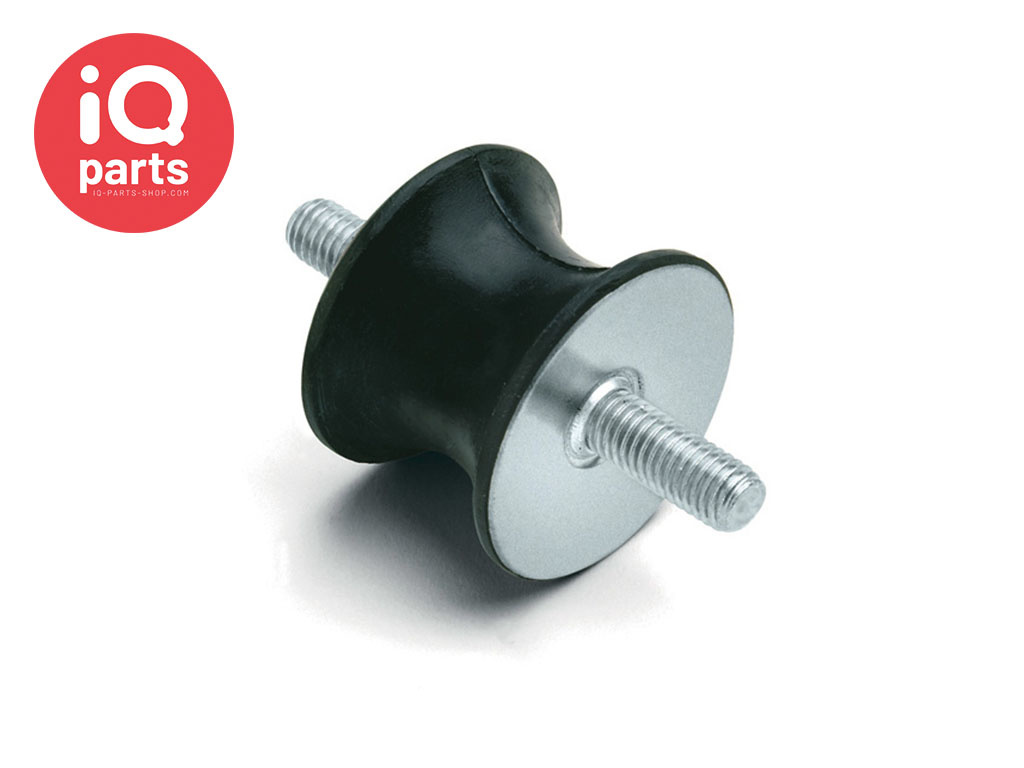

GETECH Vibration mounts Type A Sand-Glass (60 shore) serie MS
Vibration absorber type A consists of a cylindrical rubber component that features an external (male) threaded connection on both sides. This type is used for mounting a machine (e.g. a pump or fan) on a base or in a frame. These dampers work best with a pressure load. If subjected to tensile load, their maximum load will be comfortably six times lower than the maximum pressure load. This type of tractive load is feasible, but is not recommended.
Product code:
A2MS12 - A2MS25 - A2MS30 - A2MS40 - A2MS40L
Specifications
Rubber: | NR/SBR |
Hardness: | 60 Shore A |
Hardness Tolerance: | +/- 5 Shore |
Metal Parts: | Sinc plate steel |
